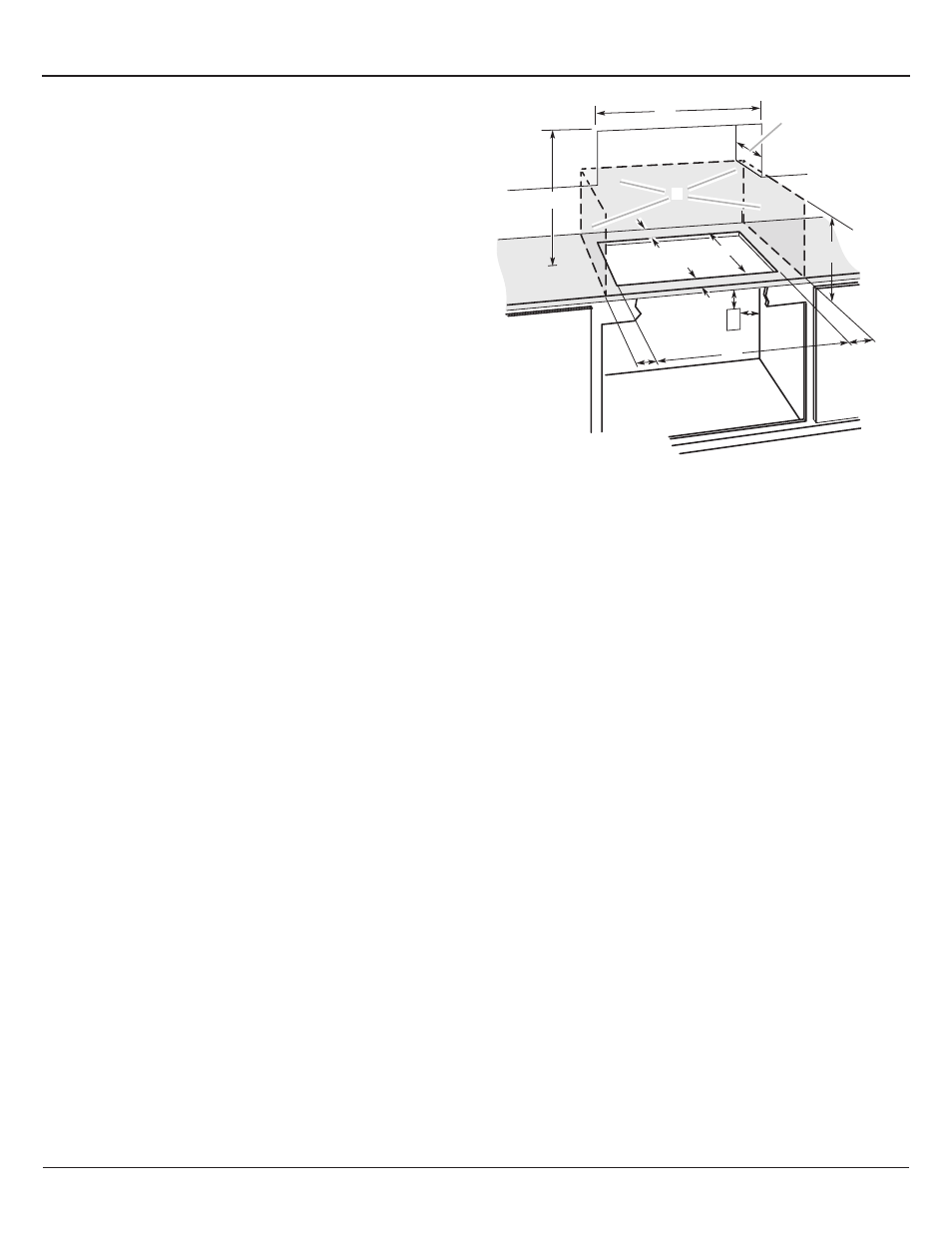

CABINET DIMENSIONS
IMPORTANT:
If installing a range hood or microwave hood combination
above the cooktop, follow the range hood or microwave hood combination
installation instructions for dimensional clearances above the cooktop
surface.
NOTES: After making the countertop cutout, some installations may require
notching down the base cabinet side walls to clear the cooktop base. To
avoid this modification, use a base cabinet with sidewalls wider than the
cutout. If cabinet has a drawer, a 5
1
⁄
2
" (14.0 cm) depth clearance from the
top of the countertop to the top of the drawer (or other obstruction) in base
cabinet is required.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10574205A
9/17/2013
Page 2 of 2
A. 30
"
(76.2 cm) on 30
"
models; 36
"
(91.4 cm) on 36
"
models
B. Combustible area above countertop (shown by dashed box above)
C. 30
"
(76.2 cm) minimum clearance between top of cooktop platform
and bottom of uncovered wood or metal cabinet (24
"
[61 cm]
minimum clearance if bottom of wood or metal cabinet is covered
by not less than
¹⁄₄
" [0.6 cm] flame retardant millboard covered with
not less than No. 28 MSG sheet steel, 0.015
"
[0.04 cm] stainless
steel, or 0.024
"
[0.06 cm] aluminum or 0.020
"
[0.05 cm] copper)
D. 13
"
(33 cm) recommended upper cabinet depth
E. 2
"
(5.1 cm)
F. 20
¹⁄₂
"
(52.0 cm) recommended cutout.
Will fit in cutout from 20
³⁄₈
"-20
⁹⁄₁₆
" (51.8-52.2 cm).
G. 18" (45.7 cm) minimum clearance from upper cabinet to countertop
within minimum horizontal clearances to cooktop
H. Junction box or outlet: 7" (17.8 cm) minimum from top of countertop
I. Junction box or outlet: 9" (23.0 cm) maximum from right side of
cabinet
J. 29
¹⁄₂
" (74.9 cm) recommended cutout on 30" (76.2 cm) models.
Will fit in cutout from 29
¹⁄₁₆
"-29
⁹⁄₁₆
" (73.8-75.1 cm) on 30" (76.2 cm)
models.
35
¹⁄₂
" (90.2 cm) recommended cutout on 36" (91.4 cm) models.
Will fit in cutout from 34
⁹⁄₁₆
"-35
⁹⁄₁₆
" (87.8-90.3 cm) on 36" (91.4 cm)
models.
K. 1" (2.5 cm) minimum distance to nearest left and right side
combustible surface above cooktop
L. 1" (2.5 cm) minimum clearance between back wall and countertop
D
A
E
I
J
K
G
H
L
C
F
B
