IBASE IB893 User Manual
Page 20
INSTALLATIONS
16
IB893 User’s Manual

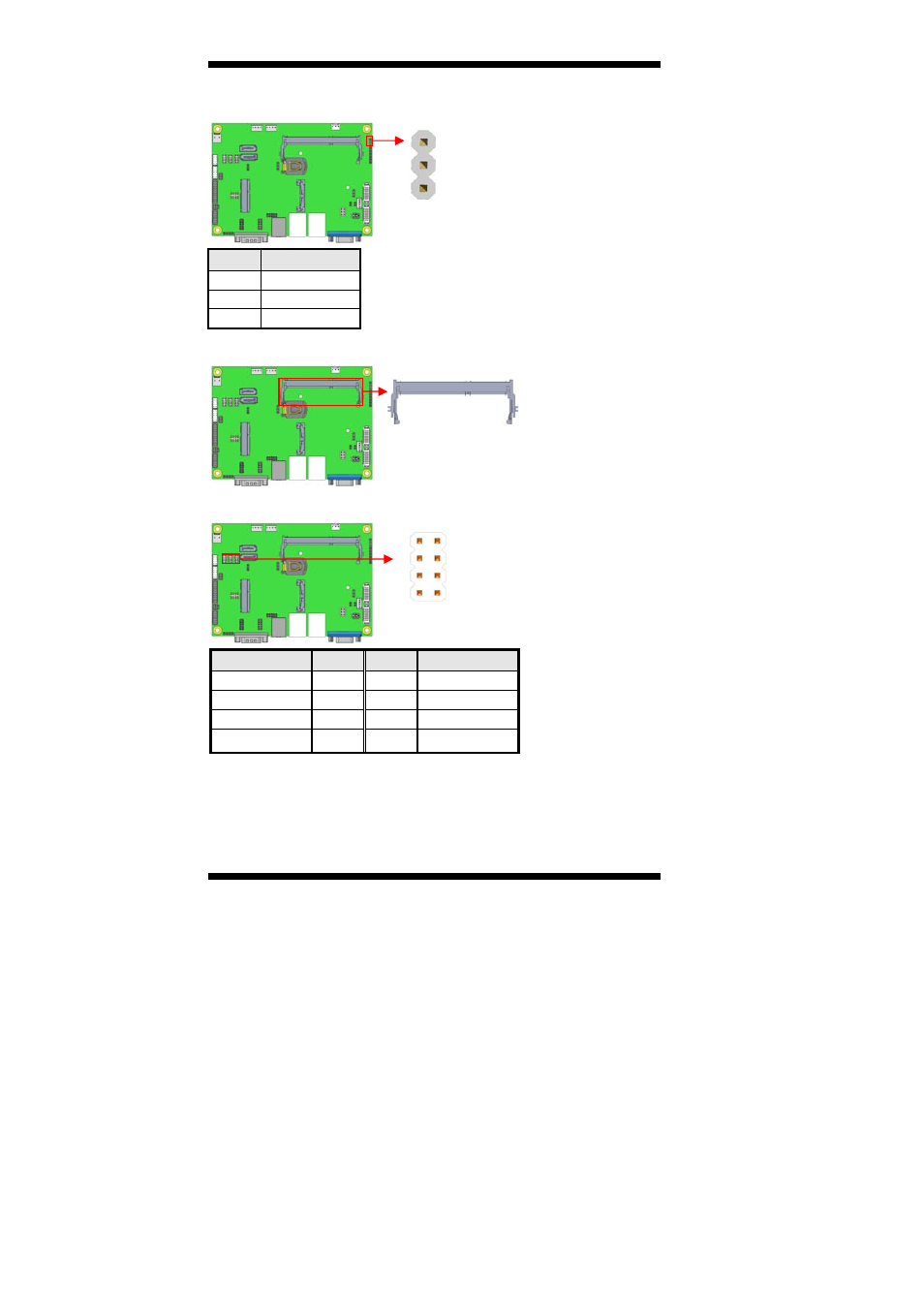

J3: Power LED
The power LED indicates the status of the main power switch.
Pin # Signal Name
1 Power
LED
2 No
connect
3 Ground
DIMM1: DDR3 SO-DIMM
J6, J7, J8: USB3/4/5/6/7/8 Connector
Signal Name Pin #
Pin #
Signal Name
Vcc 1
5
Ground
D- 2
6 D+
D+ 3
7 D-
Ground 4 8 Vcc
1
3
8
5
4
1
