Radial Winch

80.2 ST

Installation and Maintenance Manual

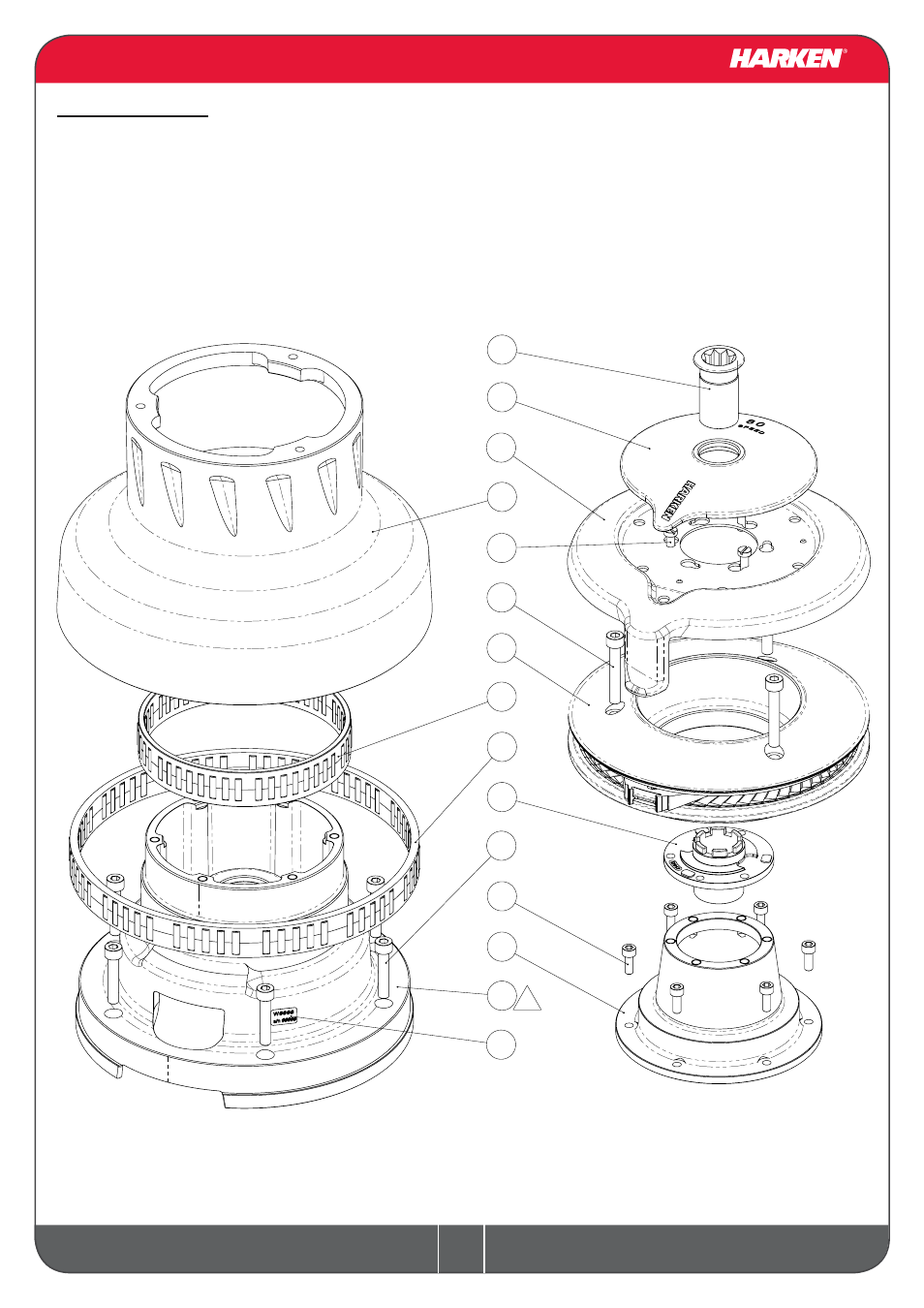

Exploded view

Explodedview

38

39

36

15

37

16

17

22

24

26

21

18

25

20

19

27

29

30

1

7

10

13

4

31

32

8

5

3

9

2

6

33

23

34

6

12

4

28

5

5

6

11

6

14

35

A
