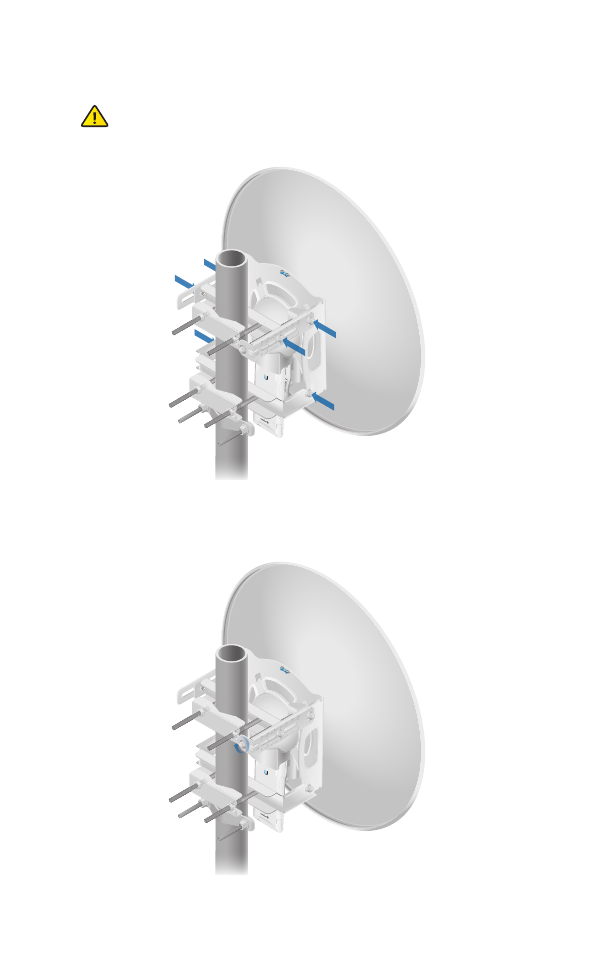

16. Before adjusting the tilt angle, ensure that the six Hex Head

Bolts are loose enough to allow movement.

IMPORTANT:

If you cannot spin the washers freely by

hand, then loosen the Hex Head Bolts until you can.

17. To adjust the tilt angle, turn the screw head of the Elevation

Rod until the desired tilt is reached.

18. Lock the alignment by tightening all six Hex Head Bolts to

25 N-m.
