Ubiquiti Networks airMA Omni Antenna User Manual

Page 4

background image

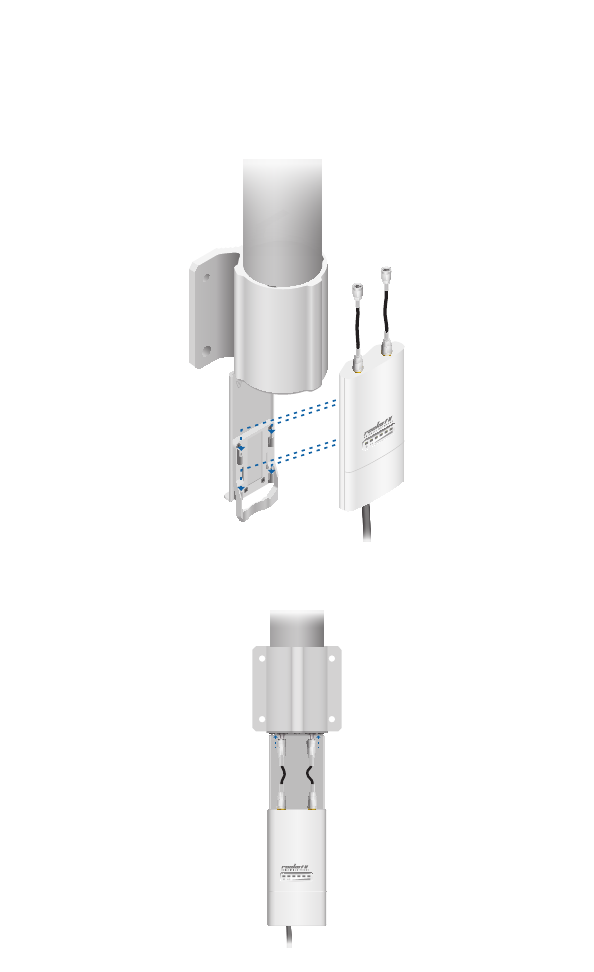

2. Attach the RocketM to the antenna.

a. Align the mounting tabs on the back of the RocketM

with the Rocket mounting bracket.

b. Slide the RocketM down to lock it into place.

3. Attach the other ends of the RF Cables to the RF connectors

on the antenna.
