Ubiquiti Networks RocketDis Antenna User Manual
Page 11

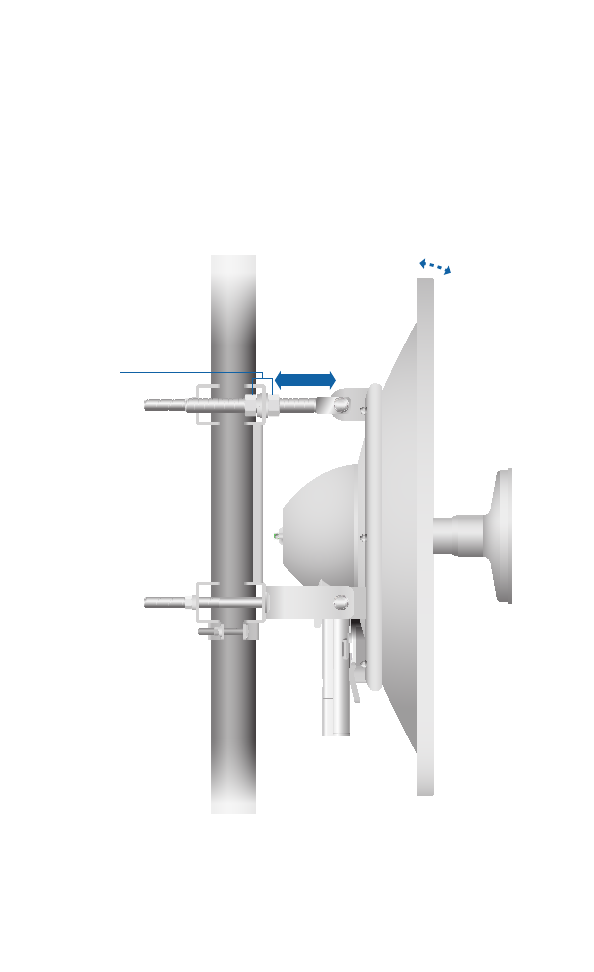

16. Visually align the azimuth and elevation.
a. To adjust the azimuth, rotate the RocketDish while it is
supported by the Stabilizer Brackets.
b. To adjust the elevation angle, tighten or loosen the nuts
on the Elevation Rod so that the RocketDish is set to the
desired tilt.
c. Tighten all bolts and nuts to approximately
50 N-m (37 lb-ft) or less to avoid deforming the pole.
Nuts
