Ubiquiti Networks RocketDis ac Antenna User Manual

Page 7

background image

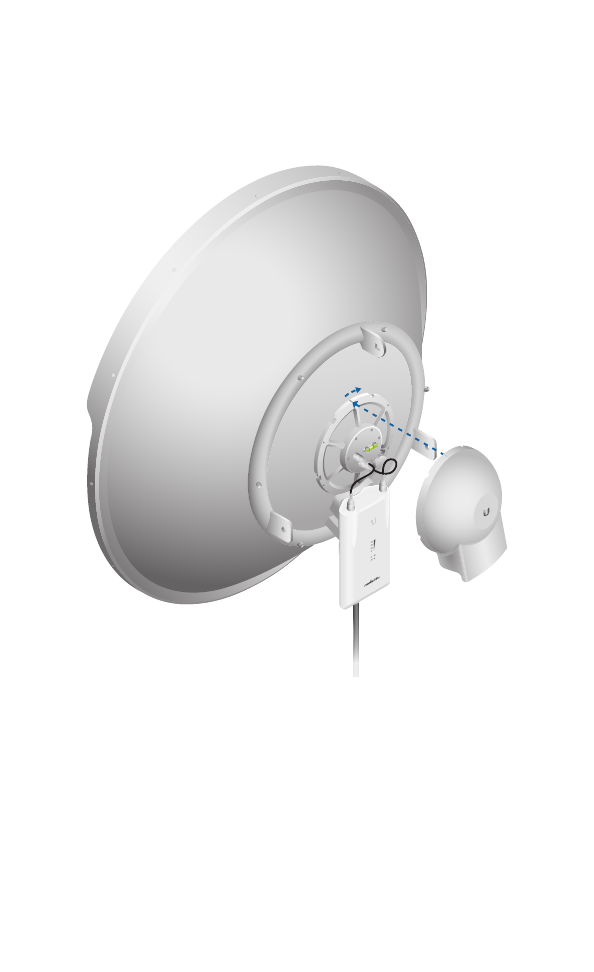

4. Attach the Protective Shroud.

a. Align the hash mark on the top of the shroud with the

notch on the Dish Antenna with Radome.

b. Rotate the shroud clockwise until it locks into place.

H

V
