Hardware Installation

The Rocket5ac Lite is designed to mount directly onto a
Ubiquiti airMAX RocketDish

™

antenna.

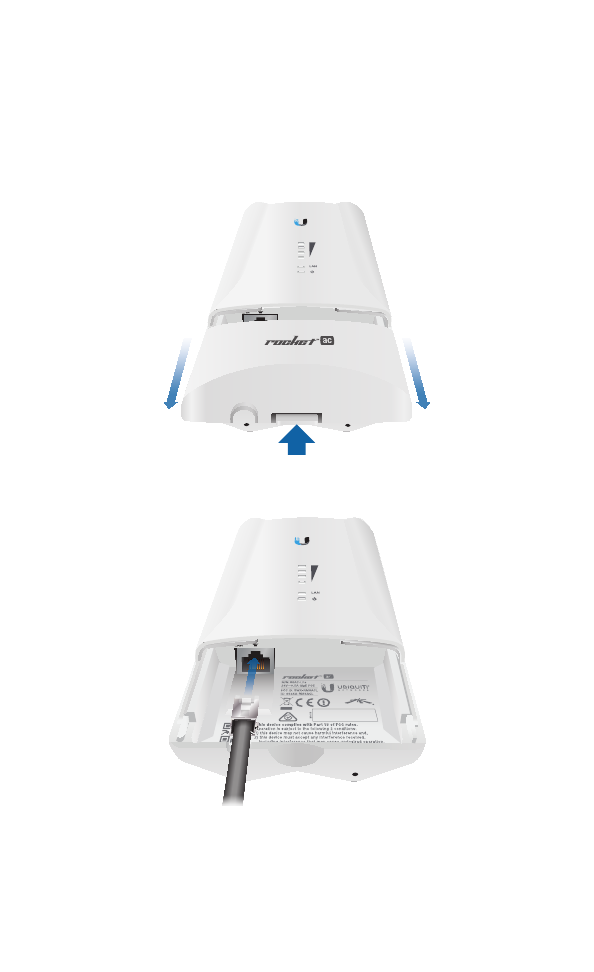

1. Lift the release latch on the bottom of the Rocket and slide

the Port Cover off.

2. Connect an Ethernet cable to the LAN port.

3. Replace the Port Cover.
