15

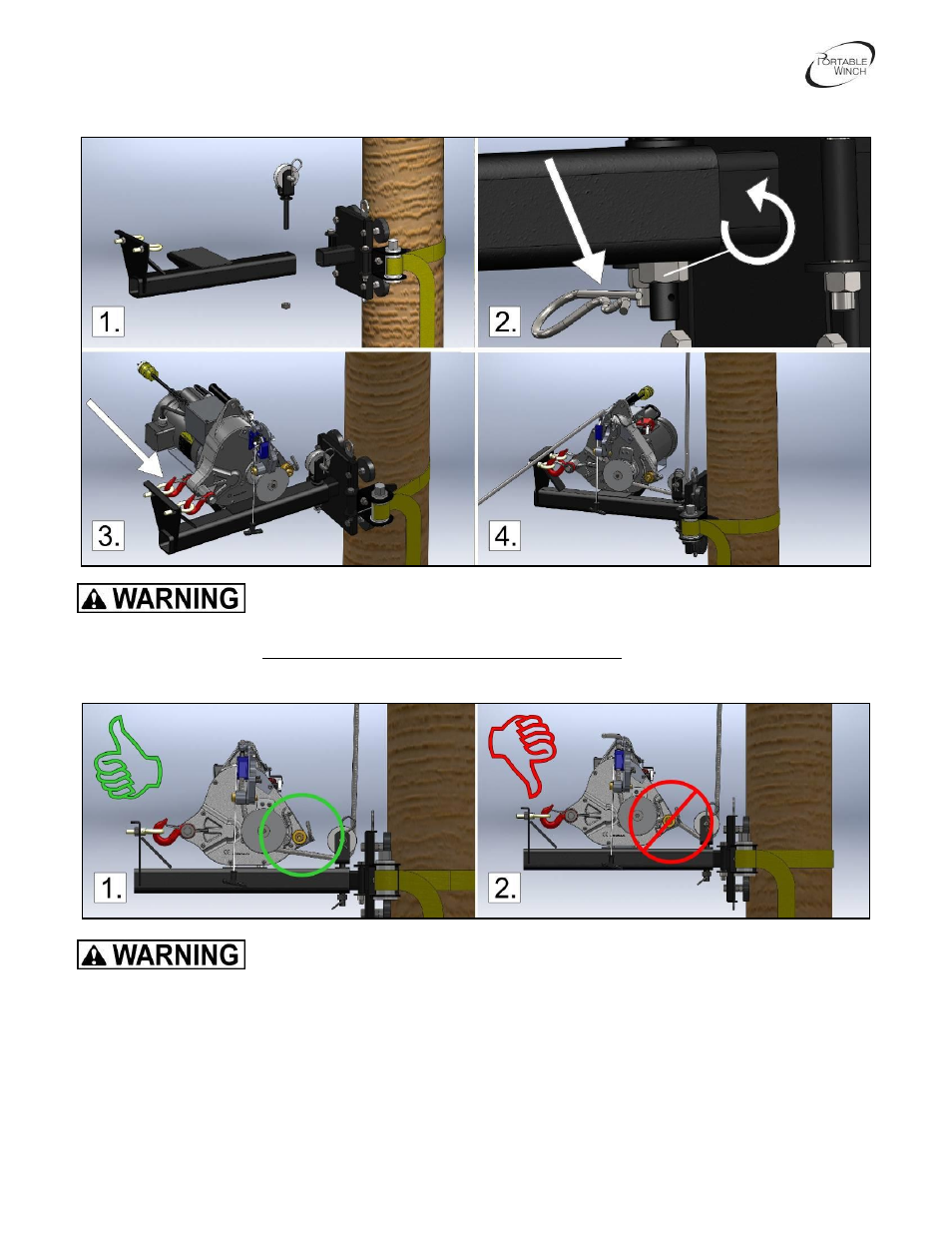

4) Figure 4: Wrap the rope around the drum and align the vertical support pulley with the
rope axe and start to pull;
IMPORTANT: D ON’T GO OVER THE ROPE ENTRY PULLEY OF THE
WINCH WITH THE ROPE (FIGURE 2) AS IT WILL CREATE FRICTION AND WILL REDUCE
LIFTING CAPACITY. GO UNDER THE ROPE ENTRY PULLEY (FIGURE 1). IN THIS CASE,
THE ROPE ENTRY PULLEY OF THE WINCH WILL NOT BE USED.
IMPORTANT: AFTER PULLING FOR A FEW SECONDS, RELEASE THE
TENSION OFF THE PCT1800 AC ELECTRIC PORTABLE CAPSTAN PULLING/LIFTING
WINCH
TM . CHECK THE SOLIDITY OF THE INSTALLATION AND TIGHTEN THE SLING OF
THE TREE/POLE MOUNT AGAIN.
