Livorsi TTK1050EL User Manual
Trim tab installation with electronic sensors
Trim Tab Installation with Electronic Sensors
Model Number: TTK1050EL, TTK850EL, TTK750EL
1 of 11
715 Center Street Grayslake IL 60030 P: 847.752.2700 E: [email protected] www.livorsi.com
REV B MAY 2015
TTK EL Models
Parts Included
(2) Trim Tabs with Sensors
(2) Hydraulic Pumps
(2) Mounting Templates
Harnesses - TTMWH & (2) - CBIWH
Mounting Hardware
Stainless steel hoses sold separately- 4 hoses required per kit
Mounting Tab Location

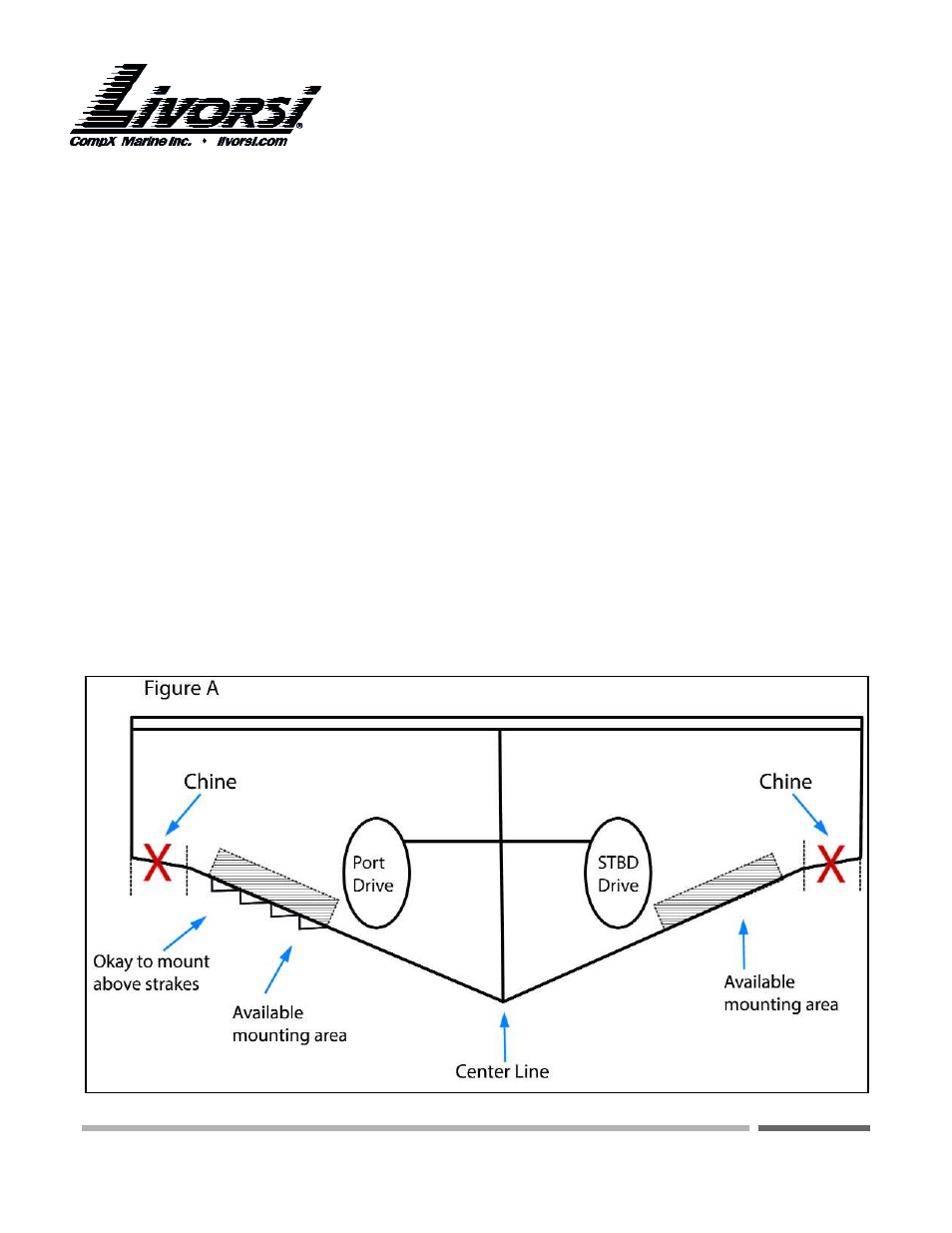

Available mounting area:
Before selecting a mounting location verify proper clearances inside (transom mounted compo-
nents, etc) and outside (turning drive and propeller clearance) of the boat. Do not mount tabs
in the chine area.
NOTE: The farther the tabs are between each other the better, this will allow you to achieve
the maximum performance out of your tabs.
