Momentary
Pushbutton
Switch
Toggle Switch
Arms Linelock &
2-Step
Fuse
20 Amp
+12 Volts
Linelock
Solenoid
Ground

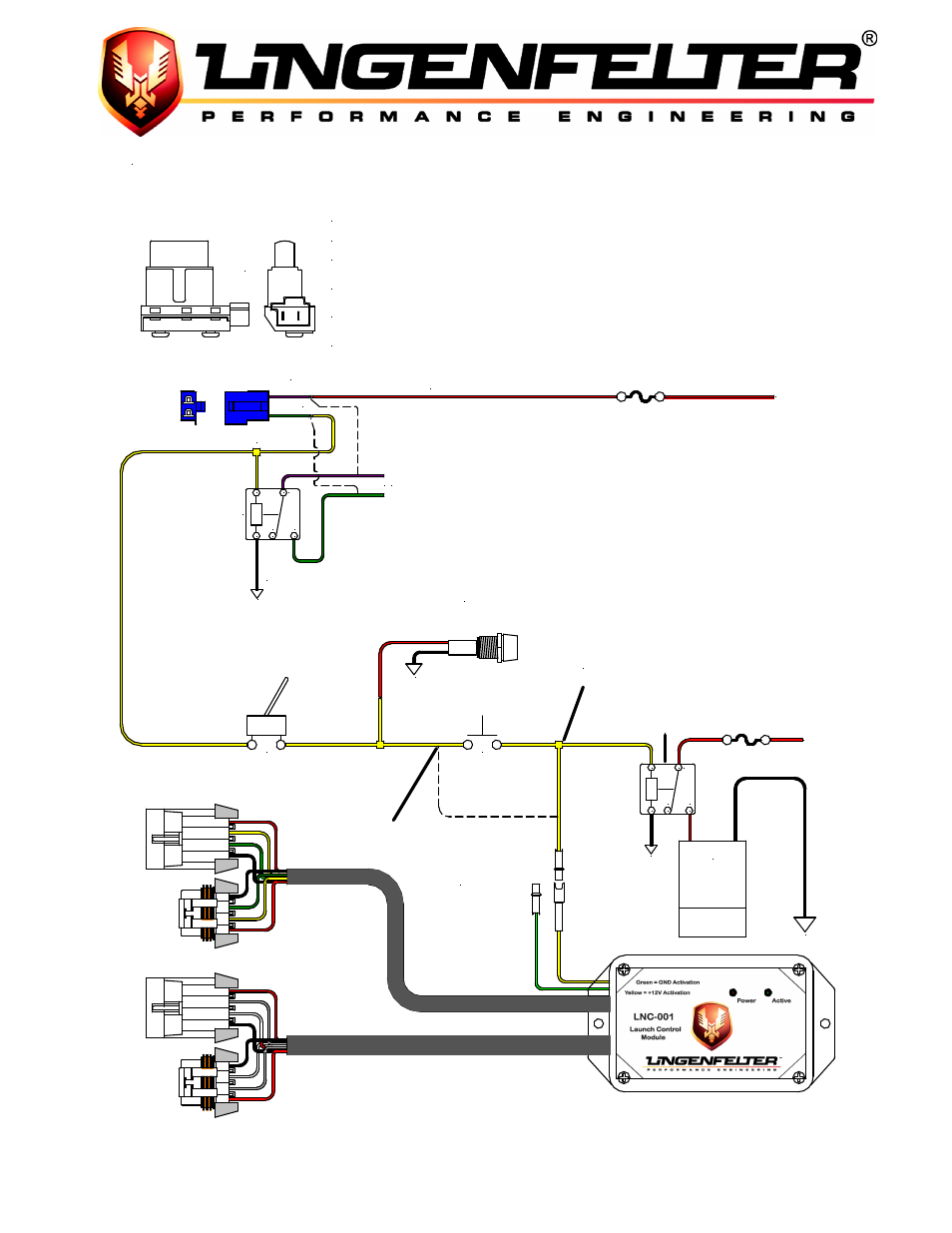

Manual Transmission with Linelock
1
85
86
30
87 87a
C
NO NC
Ground
Connect wires cut from CPP
Switch connector in Step 2
to Relay as shown.
2
3
4
5
6
General purpose
Automotive Relay.
5 to 40 Amp
Wire color illustrated is for 1999 TransAm
1 - Locate CPP (Clutch Position Switch) and unplug 2-wire connector.
2 - Cut wires appox. 3" back from connector.
3 - Find +12 volt Key On power source and connect to one wire of CPP connector.
4 - Splice two wires onto remaining CPP connector wire and connect one wire to #85 on Relay.
The extra wire will be used for LNC-001 Launch Controller activation.
5 - Connect terminal #86 on Relay to Ground.
6 - Connect wires cut from CPP Switch connector to Terminals #30 and #87 as shown.
Wire color may vary for model/year.
Connect LNC-001 "Activation" here to
have 2-Step Active ONLY when Linelock
momentary switch is ON.
Connect LNC-001 "Activation"
here to have 2-Step Active
any time Clutch Pedal is
depressed and Arming
Switch is ON.
85
86
30
87 87a
C
NO NC
Fuse
20 Amp
+12 Volts
Ground
Relay can be omiited if
Linelock Solenoid draws
5 amps or less.
Ground
Optional LED, On when
Arming Switch is ON and
Clutch Pedal is depressed.
Page 8 of 13
