Power unit, Controls and indicators, Mr90 operator’s manual – Ditch Witch MR90 User Manual
Page 23
Controls - 22
MR90 Operator’s Manual
Power Unit
CMW
®
Power Unit

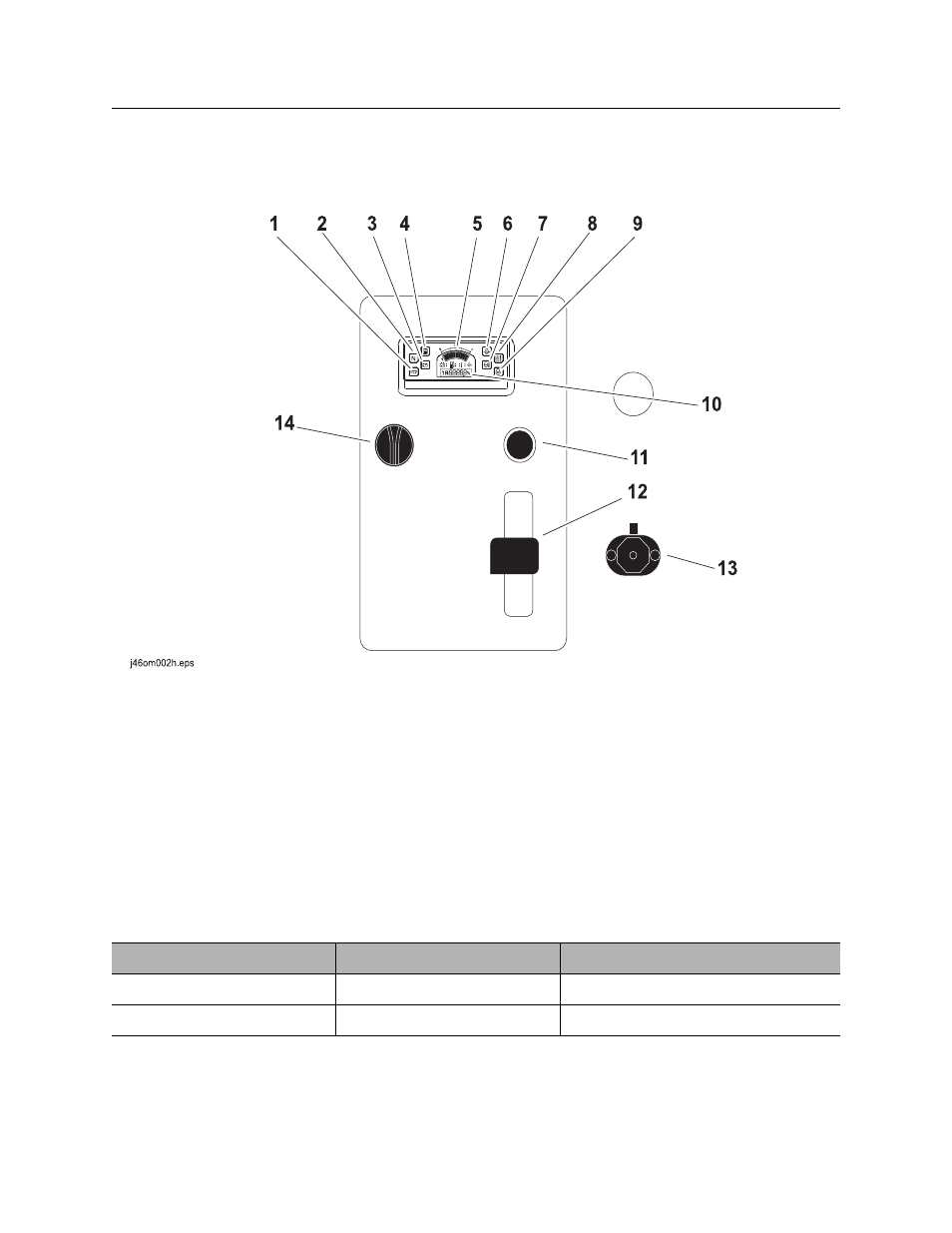

Controls and Indicators
1.
Not used
2.
Not used
3.
Battery indicator
4.
Low fuel indicator
5.
Fuel gauge
6.
Engine oil pressure indicator
7.
Coolant temperature indicator
8.
Hydraulic fluid temperature indicator
9.
Glow plug indicator
10. Hourmeter
11. Cold start button
12. Throttle
13. Auxiliary outlet
14. Ignition switch
Item
Description
Notes
1.
Not used
2.
Not used
