EN

ENGLISH

Clarke

®

American Sanders

Operator's Manual (EN) - OBS-18/18DC HDTR

- 5 -

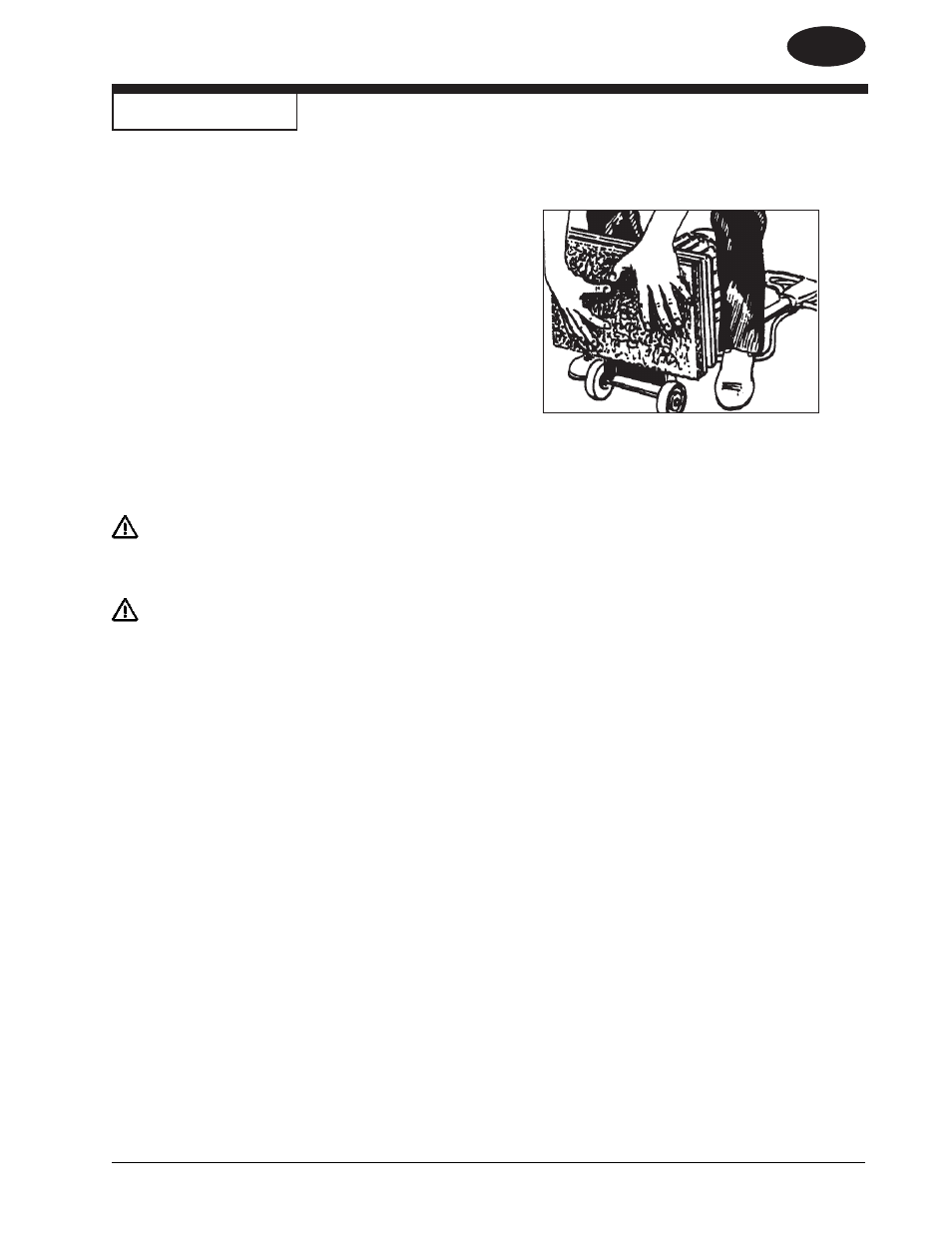

Figure 3

Machine Setup

To prepare the machine for use follow this procedure:

1. Familiarize yourself with the machine. Read all danger,

warning, and caution statements and the Operation and Parts

Manual before operating the machine. If you or the operator

are unable to read English, have this manual fully explained

before attempting to operate this machine.

2. Install or replace pad. The pad should be replaced if it has

become matted down to a thickness of 3/8” or less. To install

or replace the pad, follow these instructions:

a.) Lock handle in the upright position.

b.) Tilt the machine back until it fully rests on the handle.

c.) Standing over the machine, remove existing pad then

center new pad over grip face.

d.) Press pad against grip face until the hooks in the driver

have set in the pad. See figure 3.

e.) Return machine to the upright position.

CAUTION: Damage to the grip face will occur if the

machine is operated without a pad or with a

pad that is 3/8” or thinner.

WARNING: Never put yourself or let others be in a posi-

tion to get injured if the machine should tip

or fall, while replacing the pad or changing

abrasive.
