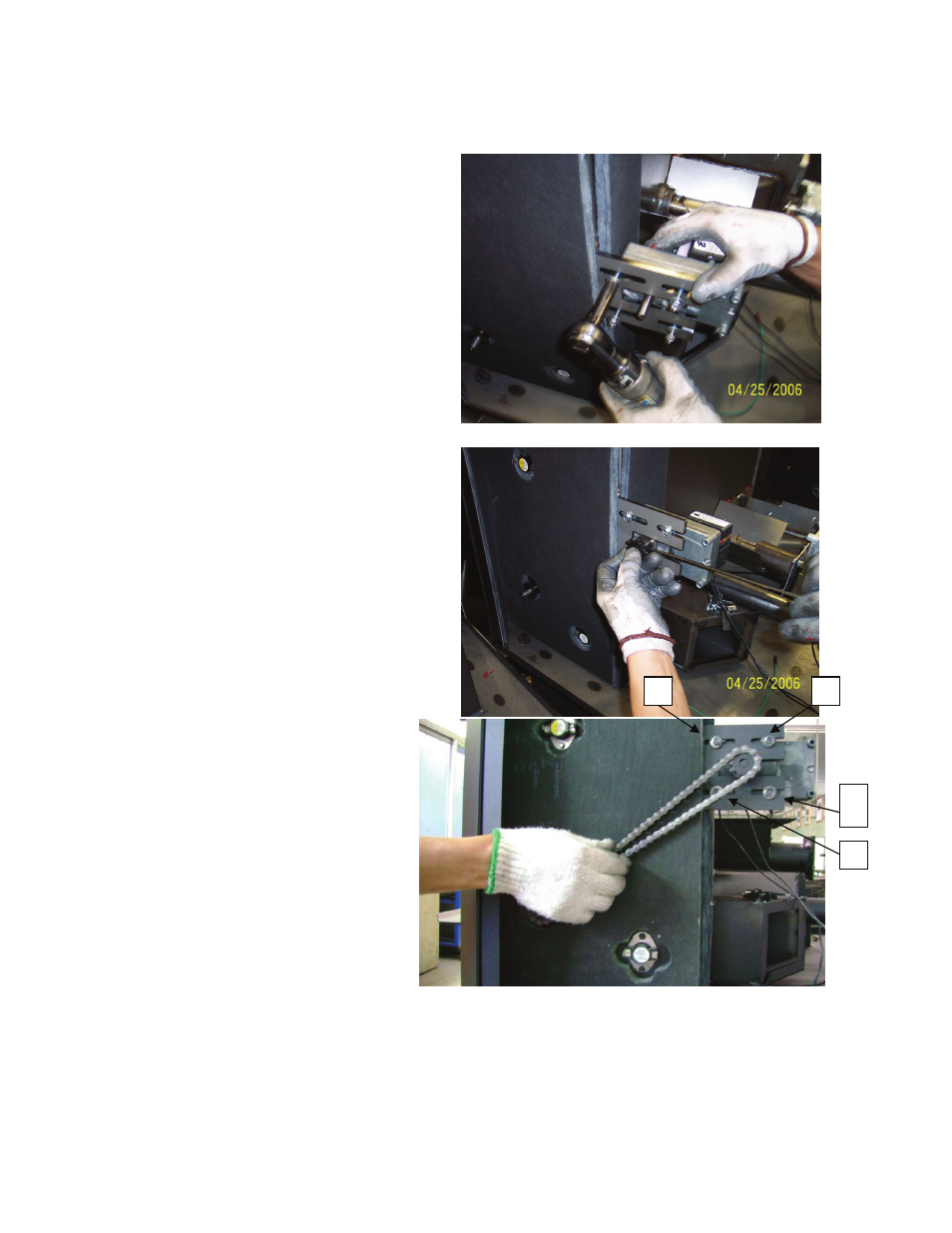

• Position fuel stirrer motor and tighten loosely. Keep screws loose until chain is in place

using hardware listed above.



















• Place MF3517 fuel stirrer sprocket

on the fuel stirrer motor shaft.
Ensure set-screw is lined up on the
flat part of the motor shaft.

• Tighten sprocket on shaft.

• Place fuel stirrer chain on the

fuel stirrer motor sprocket and
tighten (4) bolts on the motor.
Tighten bolts as shown
allowing 1/8” compression on
the gasket (MF3578)

• Check chain tension by

pinching center of the chain
together with normal finger
pressure. Ensure this is a
3/16”-7/32” space between
both halves of the chain.

• Tighten 4 bolts

• Plug back into power supply.

1

2

3

4
