AR-B1893 User’s Guide

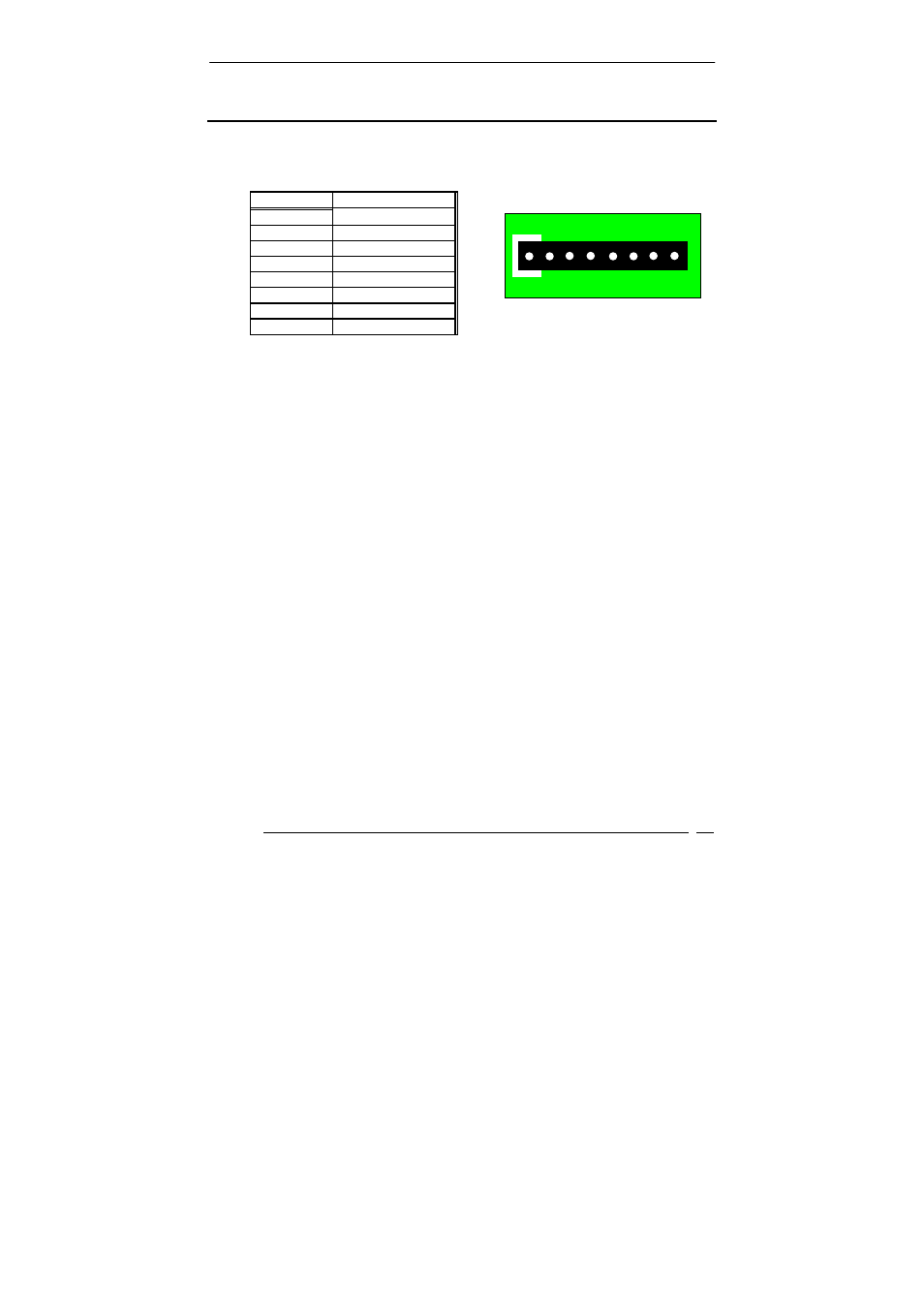

3.15 ISP CPLD Connector
• CN1
PIN NO. DESCRIPTION
1 +3V
2 TDO
3 TDI
4 NC
5 NC
6 TMS
7 GROUND
8 TCK
1 8
AR-B11893 Pentium M inside (With VGA)
with On Board DDR, 4 Port built in LAN, 1 Mini PCI, 1 CF
20
