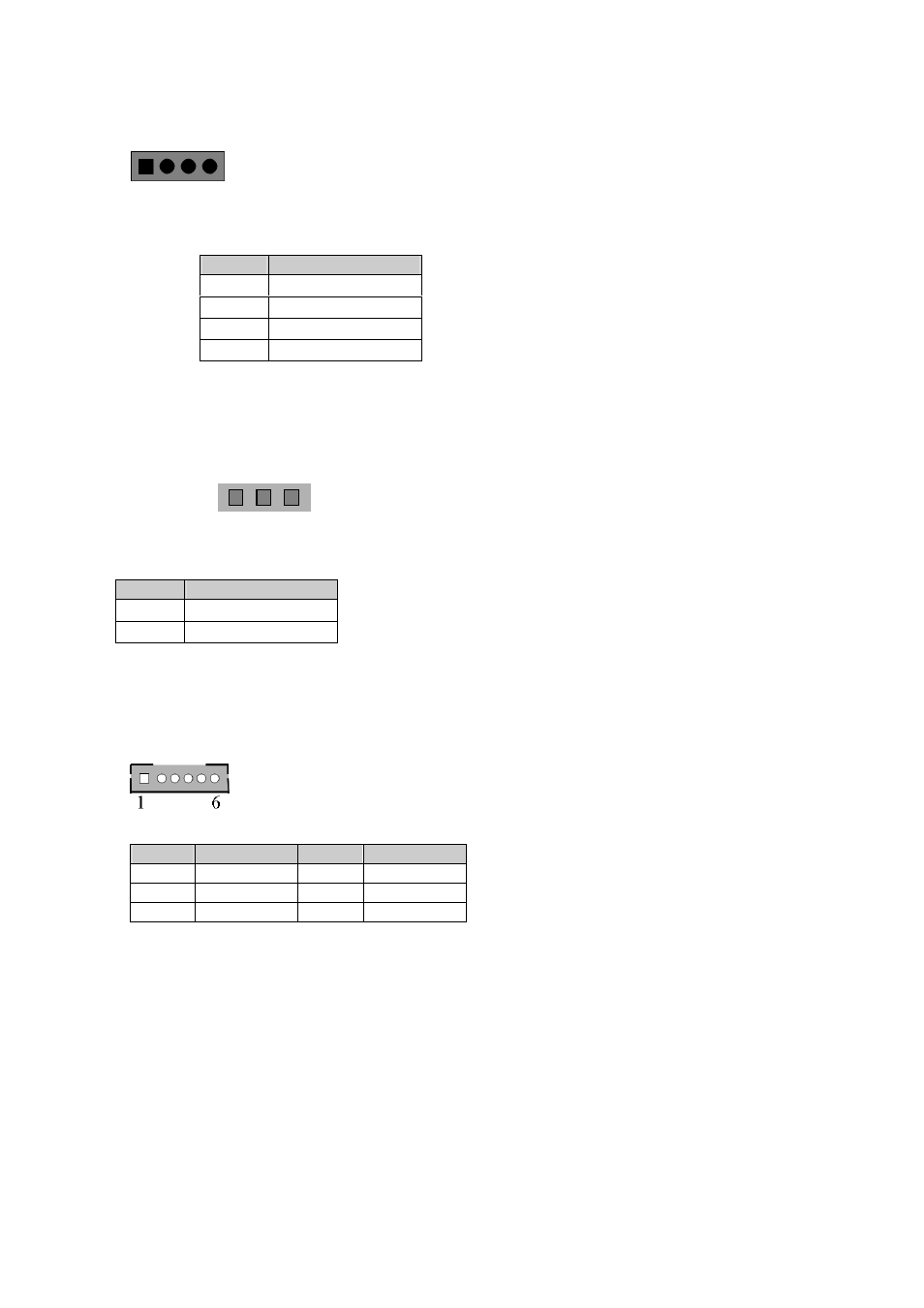

background image

22

3.30 RS422/RS485 CONNECTOR (J9)







3.31 PANEL POWER SELECTOR (J1)










3.32 LVDS POWER (LCDPW1)


















SET

SIGNAL

1

TX+

2

TX-

3

RX+

4

RX-

SET

SIGNAL

1-2

3.3V

2-3

5V(Default)

PIN

SIGNAL

PIN

SIGNAL

1

+12V

2

+12V

3 GND 4

BKLTEN

5 GND 6

BKLTCTL
