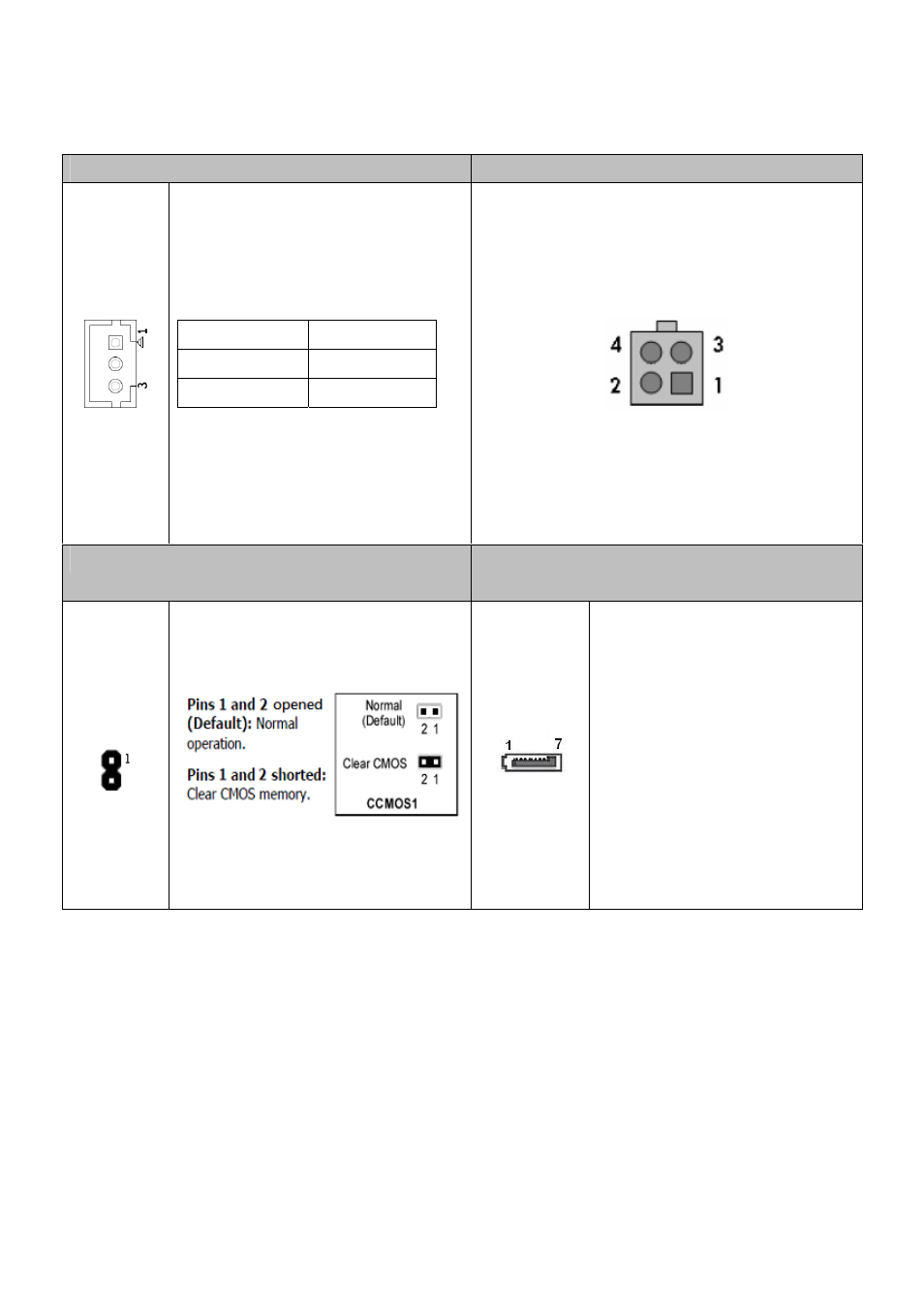

19.LCDPWR1 (LCD Power Connector)

20. CN4 (ATX12V Power Input)

Pin 1

VCC

Pin 2

Pin 3

GND

21. CCMOS1.

22. SATA1, SATA2 (SATA device connector

#1 and #2).

To connect SATA device:

1.Attach either end of the signal cable
to the SATA connector on
motherboard.
Attach the other end to the SATA
device.

2. Attach the SATA power cable to the
SATA device and connect the other
end from the power supply.
