Acrosser AR-ES6003FL User Manual

Page 13

background image

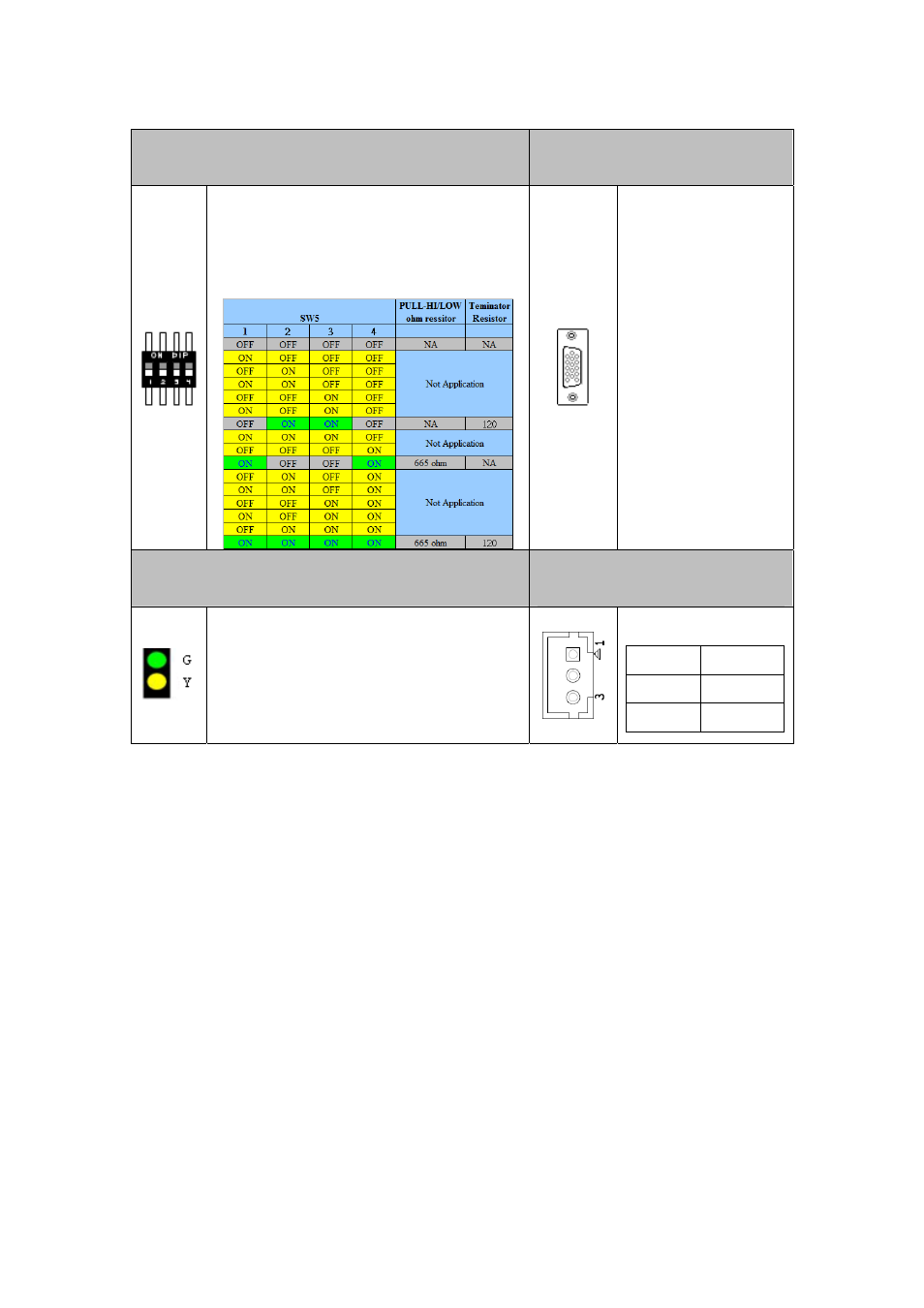

12, SW5 (RS-422 RX terminator resistor

selection)

13. VGA1 (D-SUB 15 pin

Connector)

SW5 DIP Switch

For RS-422 RX Terminator resistor

selection)

(Default: all OFF)

VGA1

D-SUB 15 pin For CRT

Monitor

14. LED1

15 PWR1 (For 0932V power

board use only Connector)

Green: Power ON LED.

Yellow: HDD LED

Pin 1

GND

Pin 2

PSON

Pin 3

5VSB

13
