30

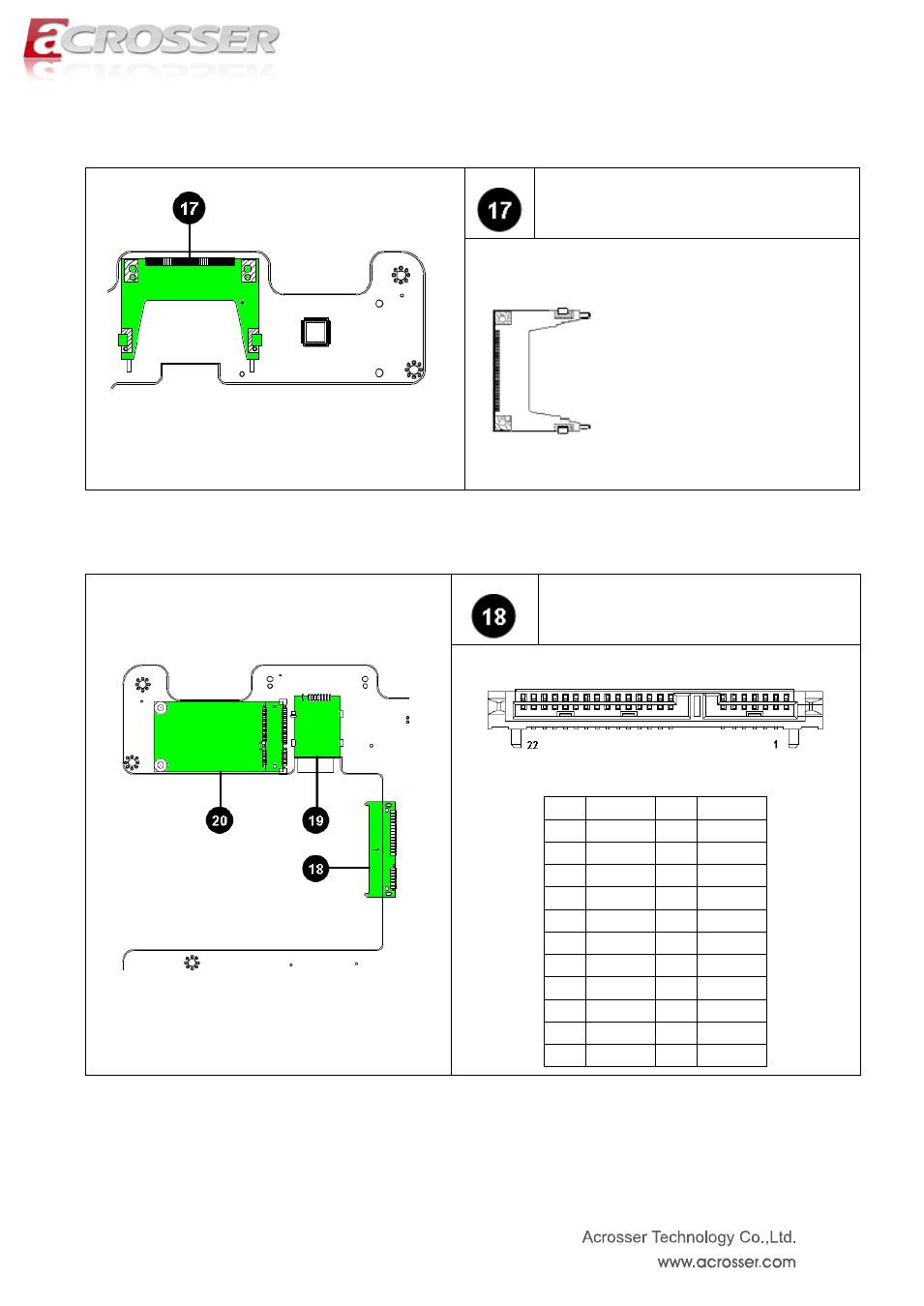

4.2.6. CF1
CF1
CF CARD Type II Socket
4.2.7. CN_SATA1, SIM1, MINIPCIE1
CN_SATA1( only support 5V device )
PIN Signal PIN Signal
1 GND 2 TX+
3 TX- 4 GND
5 RX- 6 RX+
7 GND 8 NC
9 NC 10 NC
11 GND 12 GND
13 GND 14 VCC5
15 VCC5 16 VCC5
17 GND 18 NC
19 GND 20 NC
21 NC 22 NC
