SP—3: Paging speaker. Complete and
^ ready to install including round flush
mounting
frame.
Transformer
installed
for 70V line operation.
(Not available in North America)
N—S: Square frame for SP —3 speaker.
.A, N—E:
Round surface frame for SP—3
speaker.
111"
PS-12C: CSA & UL LISTED power sup
ply (available only in North America).
I.
PG-U TYPE A: Paging adaptor for
connecting any amplifier and background
music source to your TA—E system.
Features paging volume, treble & bass
controlsand automatic background music
PS-12S:
Power supply for system.
Standard everywhere except in North
America.
EL—9S: Electric door release. Requires
separate transformer and RY—AC.
PA-B:
Talkback paging adaptor.
RY — AC
TYPE
A ; Relay for operating
.V
external device such as additional calling
buzzer or bell, door release, etc.
NCH-l;Noise
cancelling
handset
espe
cially
designed
to
allow
AiphoneTA-F
phone system to operate in extremely
noisy areas. Field installed only.

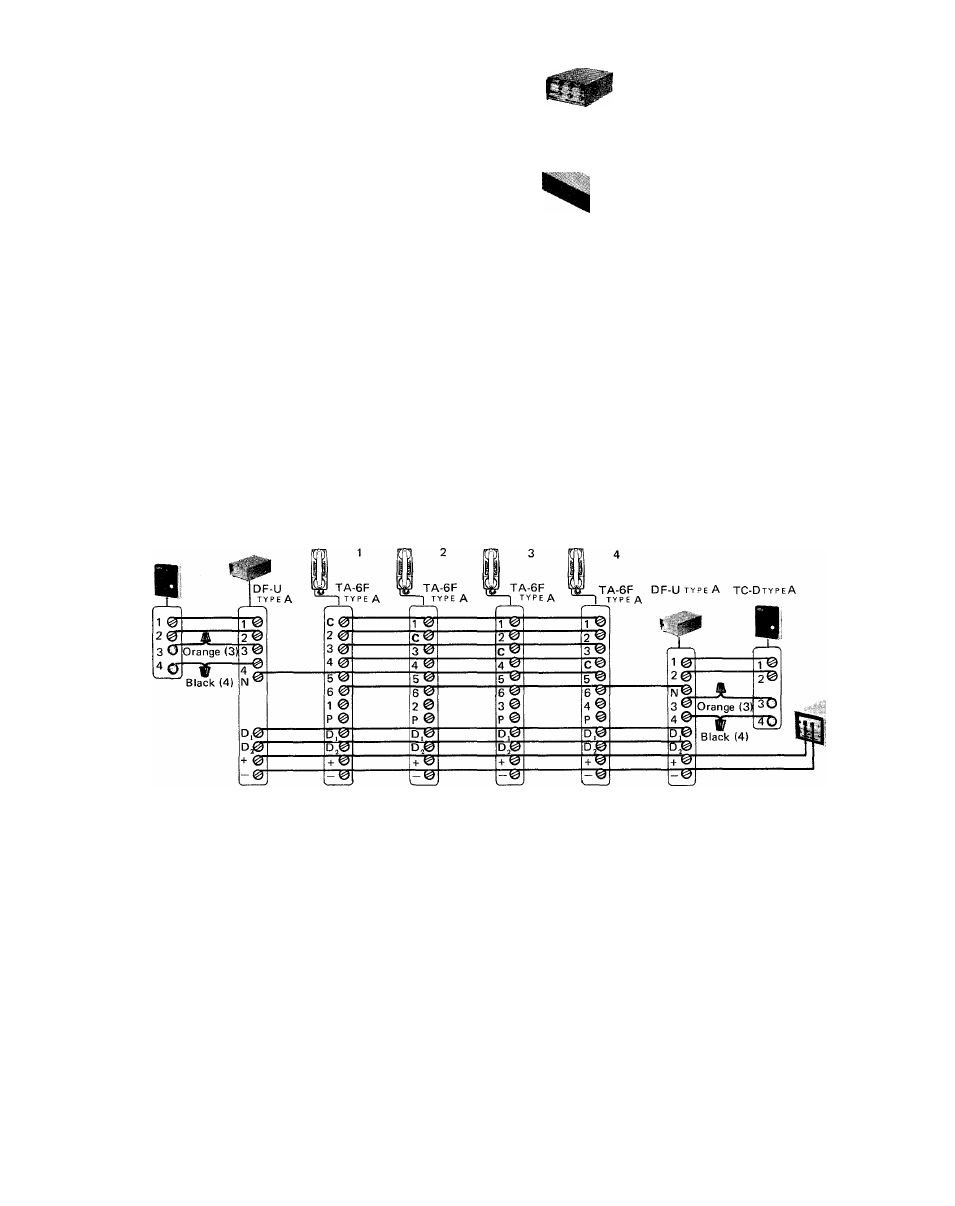

TA-6F
TYPE A:
WITH TWO DOOR STATIONS CONNECTED.
TC-D
TYPE
A
STATION
STATION
STATION
STATION
PS-12S
or
PS-12C
NOTE; 1. Example above shows 4TA—6F
t
yi
>
e
A phones. 1 additional phonemay be added if required.
2. Maximum of 2 door stations may be connected to up to 5 phones per system.
3. Do not use terminal #1 on each phone for communication with door station.
OPERATION:
When call tone is heard at master, lift handset and press button No. 4 (or No. 5)
once and begin conversation.
