Tuffy Security 031 - Manual (Page 2)

Page 2 of 2 - 1/28/2008 – Rev011607
5. Install rubber seal on lid and check lock operation.
6. Place your Tuffy box in the vehicle on the wheel well, make sure placement of box does not interfere
with the movement of the seat or convertible top.
7. Using a marker or pencil, mark any (3) spots through the 3/8” mounting holes in the box.
WARNING!
Make sure that there is nothing under the vehicle that will be damaged by the drill bit when drilling.
8. Remove the box. Cut the carpet at the (4) marked holes. Using a 3/8” drill bit, drill out the (4) marked
spots in the floor.
9. It is recommended to use silicone sealant in any holes drilled in the vehicle to prevent rusting.
10. Bolt the Tuffy box to the vehicle using (4)5/16x1-1/4” Bolts, (4) 5/16” Nuts and (8) 5/16” Washers.
For security purposes it is best to insert the bolts from the underside of the vehicle up.

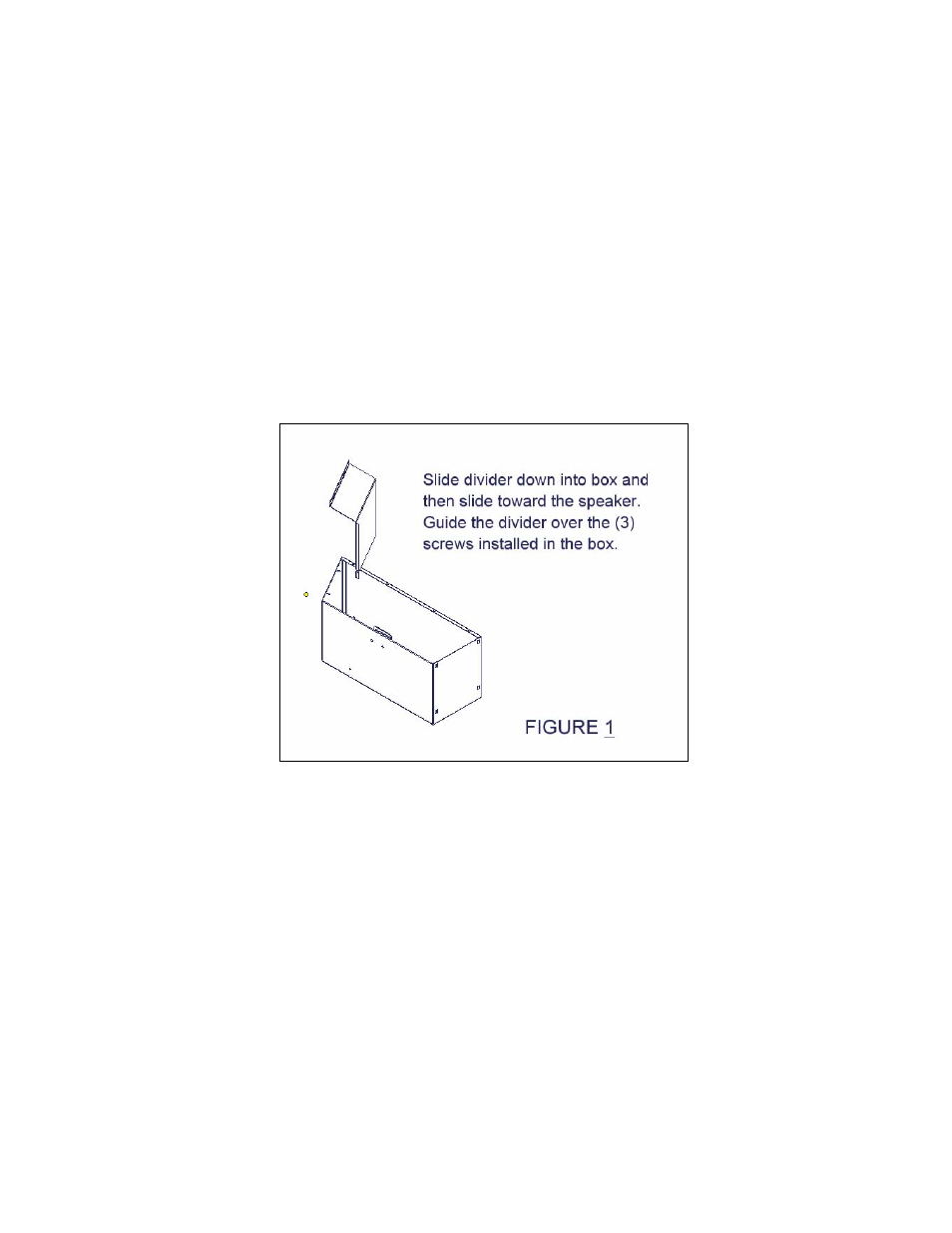

11. Part # 020 only - Slide the divider down and then over the screws inserted in your Tuffy box. Secure
the divider to the box using the (3) #4 washers and (3) #4 nuts provided. (See FIGURE 1)
12. Repeat steps for installation of box on the other side of the vehicle.
Call (970) 564-1762 for Technical Support
