Pacific Drums & Percussion FS SERIES - Manual (Page 2)

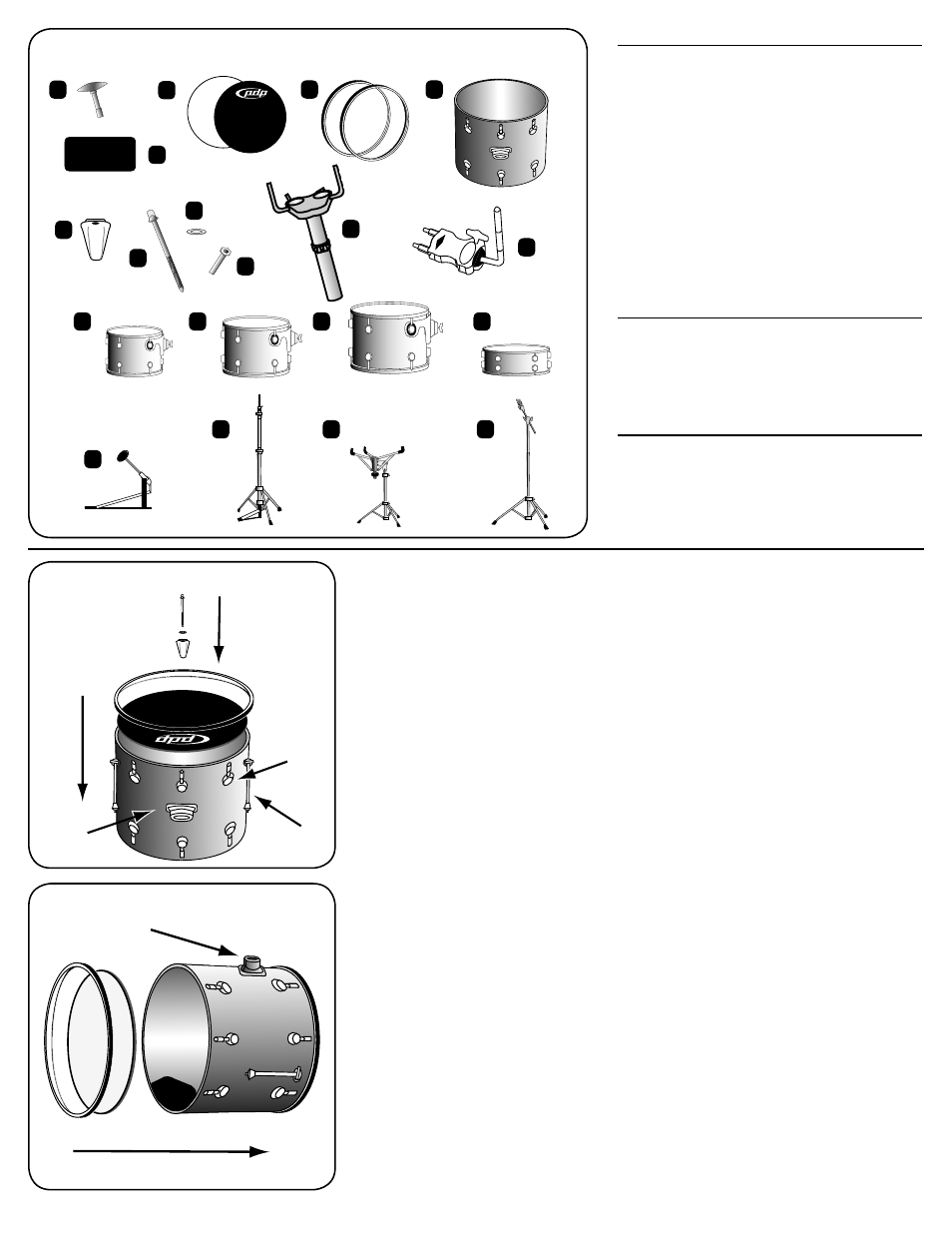

Parts
A Drum Key (1)
B Bass Drum Heads (2)
(one clear batter & one black logo resonant)
C Bass Drum Hoops (2)
D 18x22” Bass Drum Shell (1)
E
Bass Drum Pillow (1)
F Claw Hooks (16)
G Tension Rods (16)
H Metal Washers (16)
I
Lug Receivers (2 - spares for tom toms)
J Bass Drum Mount (1)
K Single Tom Arm (1)
Drums
L 8x10” Tom Tom (1 - assembled)
M 9x12” Tom Tom (1 - assembled)
N 12x14” Tom Tom (1 - assembled)
O 5x14” Snare (1 - assembled)
Hardware
P Bass Drum Pedal (1)
Q Hi-Hat Stand (1)
R Snare Drum Stand (1)
S Cymbal Stand (1)
A
2
Bass Drum Assembly
Step 1: Set the bass drum shell (D) on its side with the spurs (legs) towards the
top. Place the black “Pacific” logo head (B) over the shell. Center the logo under-
neath the BDM (Bass Drum Mount) Receiver located on top of the bass drum.
Step 2: Place one of the hoops (C) over the bass drum head with the flat side of
the hoop against the head.
Step 3: Slide 8 metal washers (H) onto 8 tension rods (G). Then slide the tension
rods into 8 claw hooks (F).
Step 4: Position each claw hook and tension rod into the lugs around the shell
and tighten by hand only. (You will fully tighten and tune the drum later.)
Step 5: Set the shell right-side-up
Step 6: Remove the plastic backing from the self-adhesive Velcro tape on the
bass drum pillow (E). Attach the pillow inside the bottom of the shell with the
adhesive. The pillow should be positioned towards the back of the shell so that it
will lightly touch the batter head when assembled.
Step 7: Turn the drum on its side (black head down) with the pillow towards the
top. Place the clear batter head (B) over the shell. Center the logo underneath the
BDM (Bass Drum Mount) Receiver located on top of the bass drum.
Step 8: Repeat steps 2 through 4 for the batter head.
G
H
F
C
B
D
Spurs
Lugs
BDM
Receiver
C B D E
BDM Receiver
Bass Drum Assembly
Bass Drum Assembly
Package Contents
Clear
Batter
Black
Resonant
B C D
E
F
L
P
Q R S
M N O
H
I
G
J
K
