Appendix
The numbers in parentheses indicate the pages where each item is explained.
.
Camera
.
Charger Unit

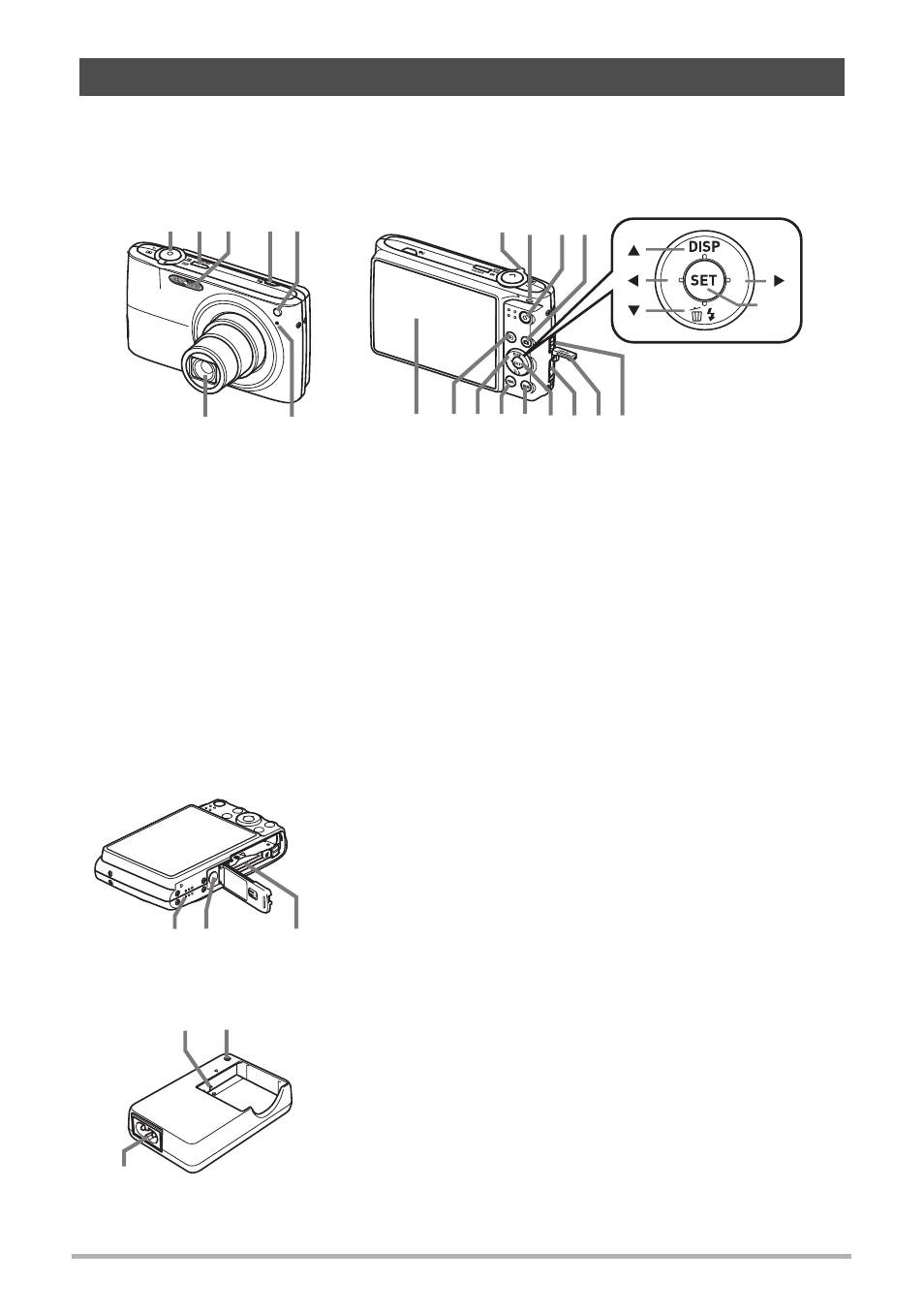

General Guide
1 Shutter button (page 18)
2 [ON/OFF] (Power)
(page 17)
3 Flash (page 28)
4 ½
(Make-up) (page 46)
5 Front lamp
(pages 20, 66, 69)
6 Microphone
(pages 47, 99)
7 Lens
8 Zoom controller
(pages 18, 43, 81, 82)
9 Back lamp
(pages 17, 18, 28)
bk [0] (movie) button
(page 47)
bl [r] (REC) button
(pages 17, 18)
bm Strap hole (page 2)
bn Connector cover
bo USB/AV port (pages
83, 103, 110, 119)
bp [SET] button (page 24)
bq [BS] button (page 52)
br [MENU] button
(page 61)
bs Control button
([8] [2] [4] [6])
(page 24)
bt [p] (PLAY) button
(pages 17, 21)
ck Monitor screen
(pages 137, 153)
2 1
7 6
45 3
89 bkbl
bq br bs bt ck bp bnbm bo
[ ]
[ ]
[ ] [ ]
[SET]
Front Back
cl Battery/memory card slots (pages 12, 15, 147, 149)
cm Tripod hole
Use this hole when attaching to a tripod.
cn Speaker
cl cm cn
Bottom
3
2 1 1 +-
Contacts
2 [CHARGE] Lamp
3 AC jack
