New England Arbors VA68111 - Manual

Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).

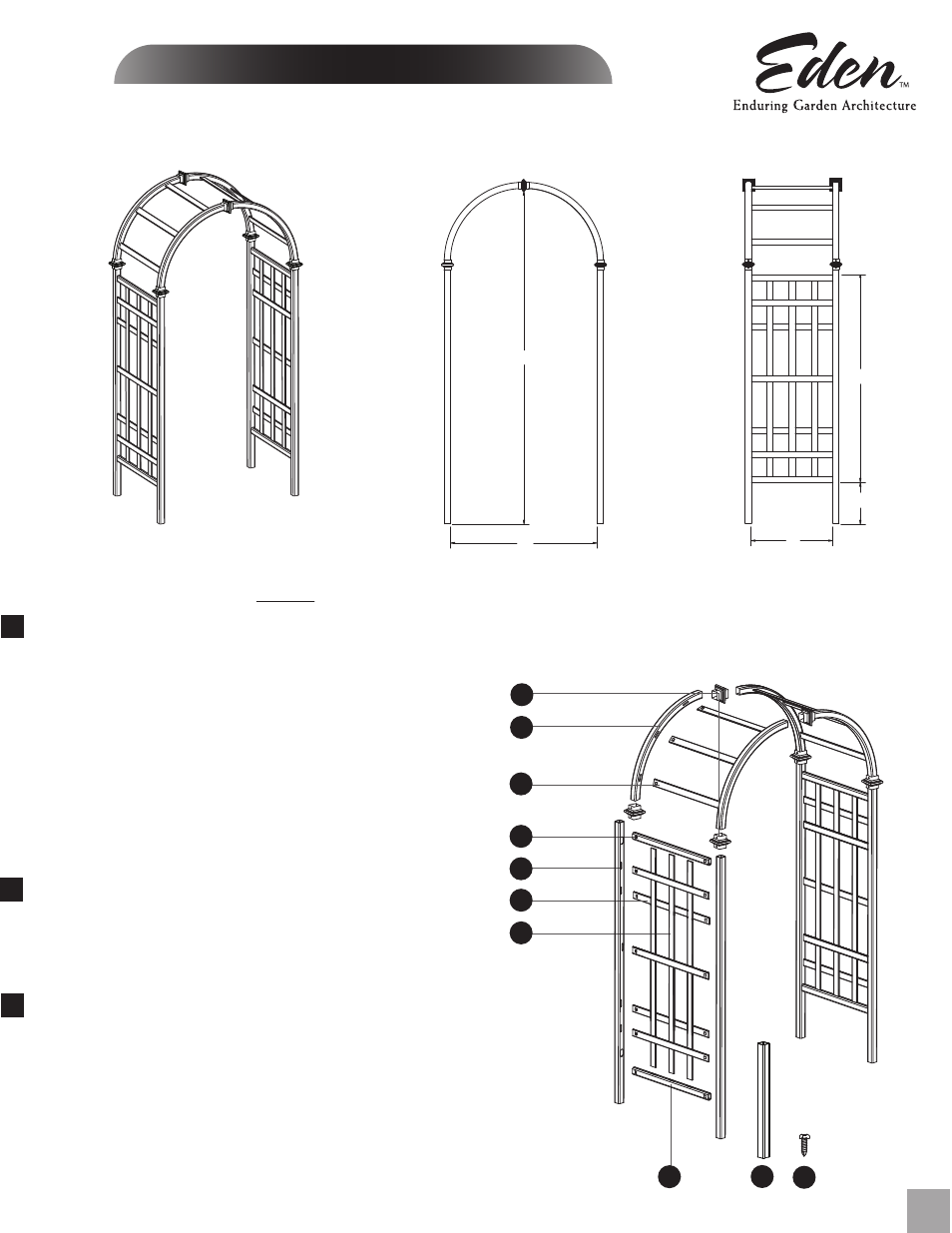

1. Post Caps (6)
2. Arches (4)
3. Arch Rafters (6)
4. Side Panel Horizontal Top Rails (2)
5. Posts (4)
6. Side Panel Horizontal Spindles (10)
7. Side Panel Vertical Spindles Long (6 )
8. Side Panel Horizontal Bottom Rails (2)
9. Ground Anchoring Stakes (4)
10. 5/8” Self-Augering Stainless Steel Phillips Screws (48)
Tools You Will Need
• Cordless Drill
• Level
• Stool or Short Ladder
• Shovel
General Information
Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10’x 8’ for unobstructed assembling.
• You should not need to use excessive force when assembling components.
The Athens Arbor
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
A S S E M B LY I N S T R U C T I O N S
1
www.edenarbors.com
36
20
78.5
7.5
50.8
9 8 Not to Scale
7
6
5
4
2
1
3
10
VERSION OCT10
