OPERATING THE MC-3.3 SMART CLOCK VR
SD
VIDEO
+ SD
FORMAT

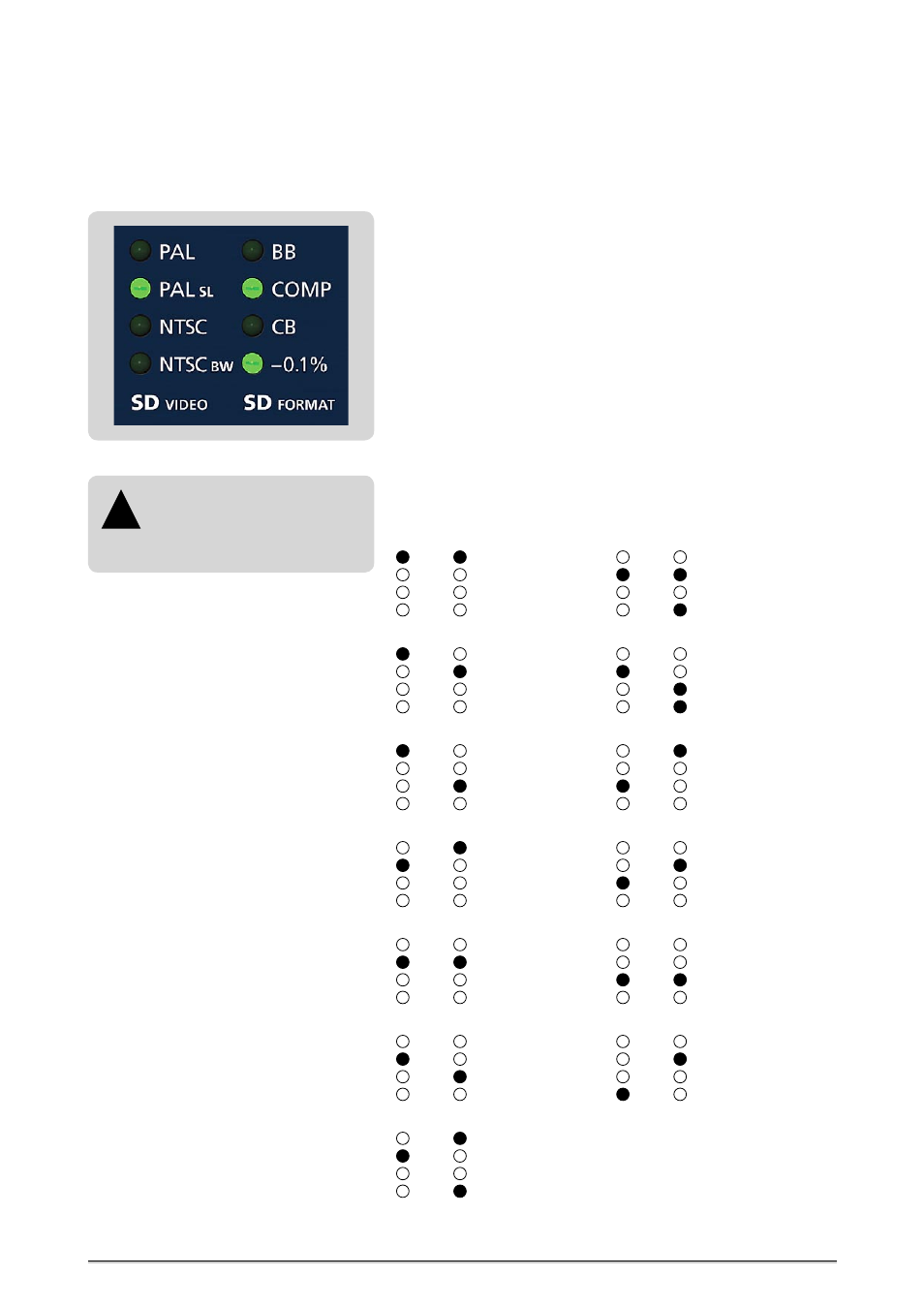

This menu enables you to set the internal SD bi-level video sync reference
generator to different standards, formats and frame rates. It is a
multifunctional menu which means, the two LED rows ‘SD
VIDEO
’ and ‘SD
FORMAT
’ indicate together the different possible settings. The selected video
standard is transfered to all of the six SD video sync outputs at the rear.
The names of the LEDs in this menu:
PAL:
25fps, 625 lines
PAL
SL
:
24fps, 625 lines
NTSC:
29.97fps, 525 lines
NTSC
BW
: 30fps, 525 lines
BB:
Black + Burst, this function outputs a SD video composite sync
signal with inserted color bust.
COMP:
Composite Sync, this function outputs a SD video composite
sync signal without color bust.
CB:
Color Bar, this function outputs a SD video color bar signal.
Both LEDs in front of a video standard light simultaneously.
– 0.1%:
Pull down for PAL
SL
with 0.1%, 23.98fps, 625 lines
You can choose the different functions within this menu by pressing the
SELECT button repeatedly. The factory default is set to PAL / BB.
This setting
outputs a PAL
Black + Burst video
sync reference
signal.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
SD
FORMAT
This setting out-
puts a PAL com-
posite video sync
reference signal.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting out-
puts a PAL color
bar video refer-
ence signal.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting
outputs a so-
called ‘Slow-PAL’
Black + Burst video
sync reference
signal.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting out-
puts a so-called
‘Slow-PAL’ com-
posite video sync
reference signal.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting out-
puts a so-called
‘Slow-PAL’ color
bar video refer-
ence signal.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
HD
VIDEO
SD
FORMAT
This setting outputs
a so-called ‘Slow-
PAL’ composite
video sync reference
signal pulled down
with 0.1%.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting outputs
a so-called ‘Slow-
PAL’ color bar video
reference signal
pulled down with
0.1%.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting outputs
a NTSC Black + Burst
video sync reference
signal with 29.97fps.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting outputs
a NTSC composite
sync video reference
signal with 29.97fps.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting outputs
a NTSC color bar
video reference
signal with 29.97fps.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This setting outputs
a so-called ‘Slow-
PAL’ Black + Burst
video sync reference
signal pulled down
with 0.1%.
BB
CB
– 0.1%
COMP
PAL
NTSC
NTSC
BW
PAL
SL
SD
VIDEO
This special setting
outputs a NTSC
composite sync
video reference
signal with 30fps
(black + white).
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
SD
FORMAT
During switch-over of the SD
video standards or formats, a
short interruption in all output
signals occurs for maintaining correct phase
relations at the outputs.
!
