MAX78630+PPM Evaluation Kit User Manual

22

Rev 0

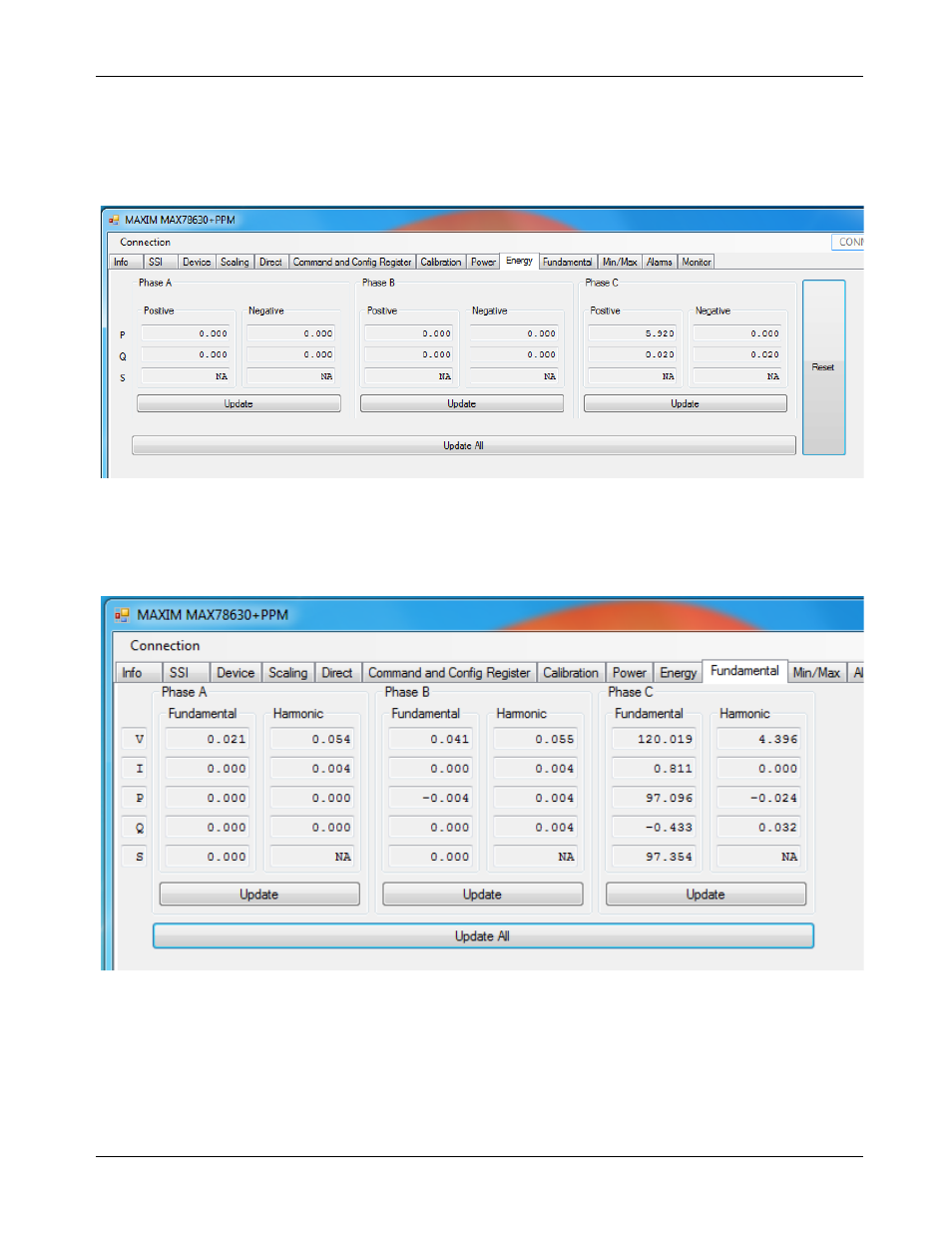

4.1.8 Energy Tab

The Energy tab displays the accumulated power both into and out of the load. All energy counters can be
reset to zero in the device with the Reset button.


4.1.9 Fundamental Tab

The Fundamental tab is used to display the fundamental and harmonic measurements for voltage, current,
and power. The harmonics displayed can be selected with the get/set harmonic buttons.
