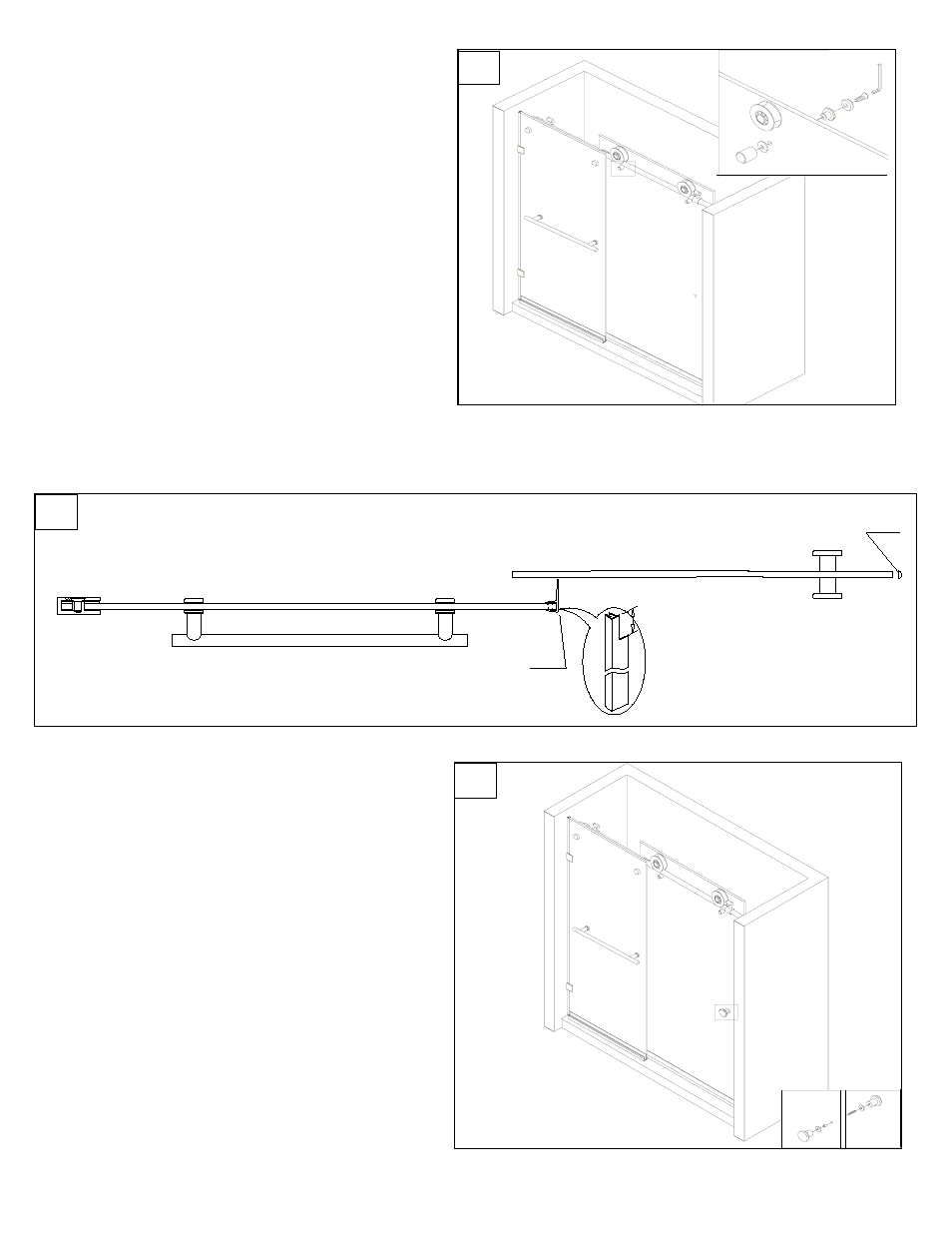

STEP 11 Blocking cylinders installation

Position one of the blocking cylinders on the door panel
placing a plastic washer in between the metal and the glass.
Screw from inside, verify for proper integration of the plastic
nut inside the hole of the glass panel, making sure the cylin-
der is as high as possible on the door (turn the white plastic
nut for this ajustment).
Firmly tighten making sure not to unsettle the cylinder posi-
tion and repeat operation with the second cylinder.

STEP 12 Waterproof gasket installation

Groove 4 3/4'’ (120mm) on top of the gasket #12 (Figure 12) and install it at the end of the fixed panel. Position the plastic adhesive
protections #19, at the end of the door panel on the side of the wall in junction with the door swipe.

STEP 13 Final touch

Install the door handle. (Figure 13)
