(92PO) 52" 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 05/25/2012
92PO
SAVE THESE INSTRUCTIONS
Page 5
English
PARTS
REFERENCE

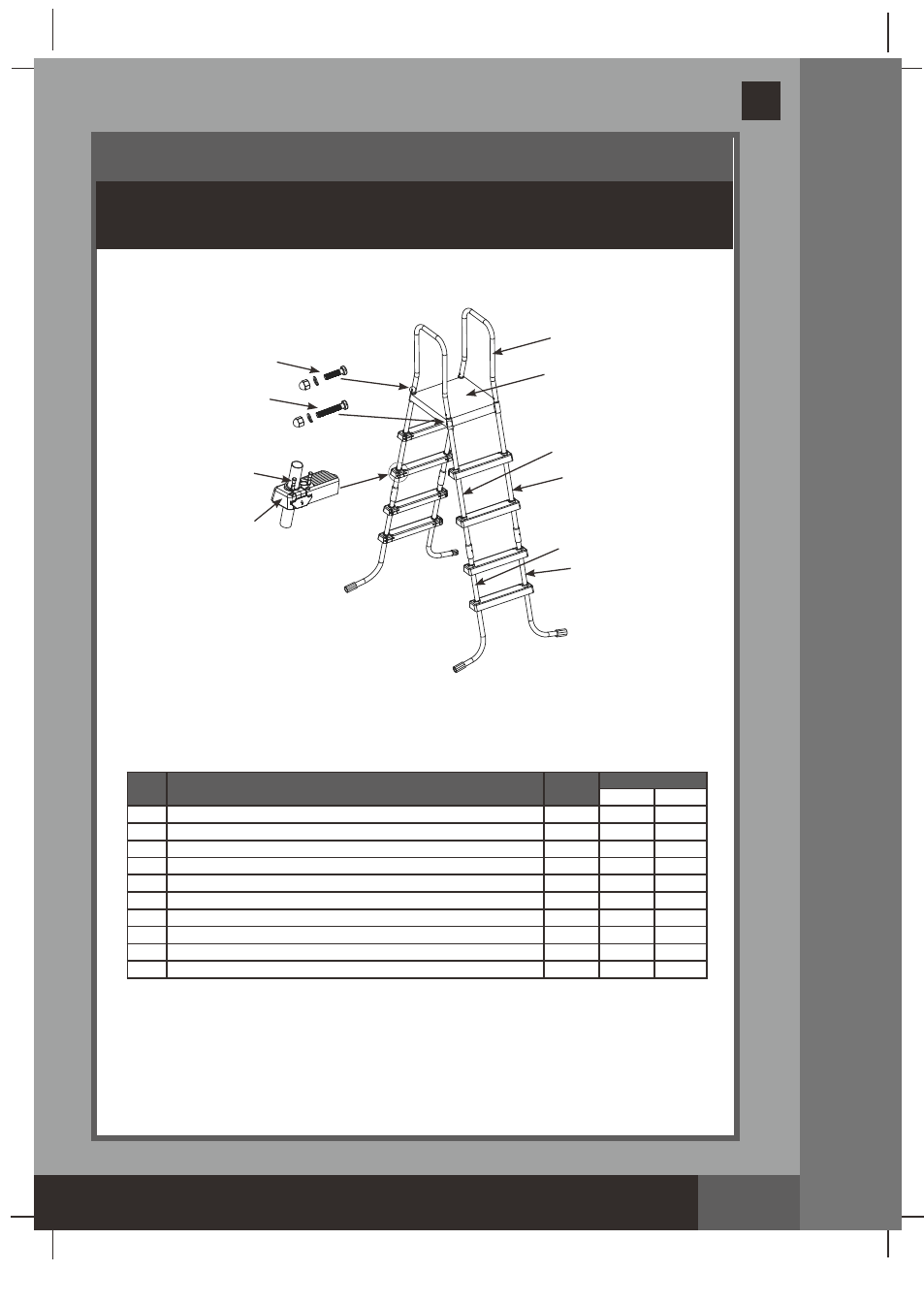

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
52in (132 cm) model
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to
scale.
REF.
NO.
DESCRIPTION
QUANTITIES SPARE PART NO.
#58975 #10904
1 U-SHAPED TOP RAIL
2
10815
10911
2 TOP PLATFORM
1
11145
11146
3 SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5
10810
10810
4 LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA)
5
10227
10227
5 STEP MOUNTING PIN (WITH 2 EXTRA)
34
10349
10913
6 STEP
8
10348
10914
7 UPPER SIDE LEG (MARKED “A”)
2
11557A 11559A
8 UPPER SIDE LEG (MARKED “B”)
2
11557B 11559B
9 LOWER J-SHAPED SIDE LEG (MARKED “A”)
2
11558A 11560A
10 LOWER J-SHAPED SIDE LEG (MARKED “B”)
2
11558B 11560B
2
1
3
4
5
9
7
8
6
10
