PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
Power: 110-120 Volt AC
Amperage: 1.8 A
Maximum working pressure: 1.4 bar (20 psi)
Effective filtering area: 0.05 m 2 (0.54 ft 2 )
Maximum Flow Rate: 4000 liters/hour (1050 gallons/hour)
Recommended filtering media: No. 20 silica sand or glass sand. Particle size
(Not included) range 0.45 to 0.85 mm (0.018 to 0.033 inches).
Uniformity Coefficient less than 1.75.
Recommended filtering media quantity: No. 20 silica sand 12 Kg (26 Lbs) or glass sand
8.5 Kg (18.5 Lbs).
Limited Warranty: see “Limited Warranty”
NOTE: NOT SUITABLE FOR USE WITH KCP-LOW -SALT AUTOMATIC SALTWATER SYSTEM
(MODEL 6110/6220)
The sand filter removes suspended particles but does not sanitize your pool. Pool
chemistry is a specialized area and you should consult your local pool service specialist
for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• The system must be installed on a solid level and vibration-free base.
• Provide a location protected from the weather, moisture, flooding and freezing
temperature.
• Provide adequate access, space and lighting for routine maintenance.
• Pump motor requires free circulation of air for cooling. Do not install the pump in a
damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.

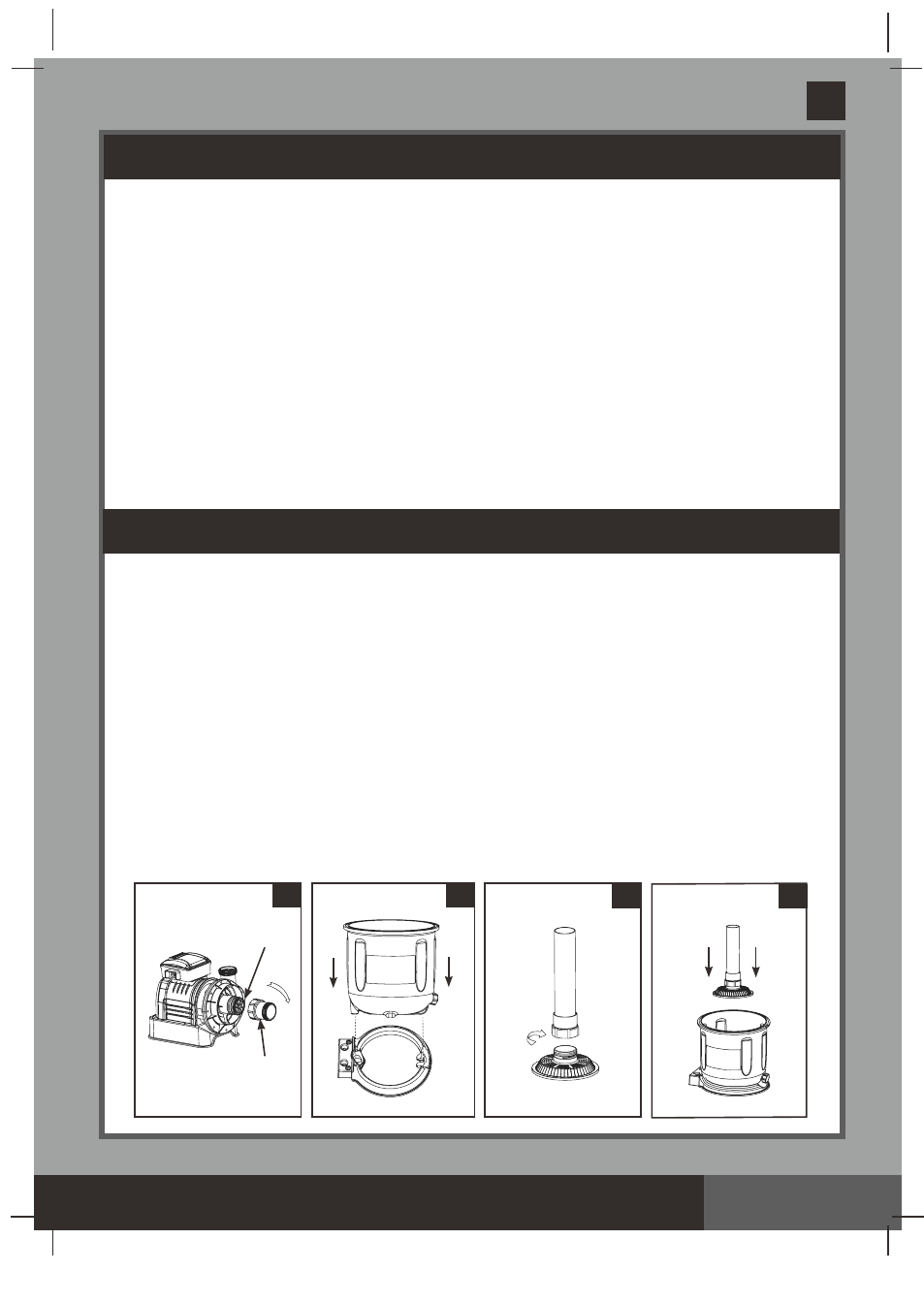

Leaf trap setup:
1. Make sure the pump o-ring (6) is in place. In a clockwise motion screw the leaf trap (19)
onto the motor inlet (see drawing 10).
Sand tank installation:
1. Place the tank support base at the selected location.
2. Place the tank on the tank support base (see drawing 11.1).
10
19
6
11.1 11.3
