KTP-24-8 Multiple Output Power Supply
The KTP-24-8 is a compact and durable power supply that is typically used to power up to eight CyberDomes. It features
eight isolated 24 VAC outputs that can power devices requiring 1 amp or less. Each output is equipped with a resettable
fuse. The unit can be powered from either a standard 115 or 230 VAC source. A rack-mount accessory is available.
Note: The KTP-24-8E4 can be used as a standard 230 VAC source.
CAUTION:
The KTP-24-8 was designed for indoor applications only. For outdoor units with a heater and fan, use the KTP-24 or KTP-
24C.
I
NSTALLING THE
U
NIT
1) Mount the unit using the slots provided.
2) Make cable connections to the KTP-24-8 as shown in Figure 1. Refer to Table 1, “Maximum Cable Length,” for
suitable cable gauge sizes when connecting the output cables.

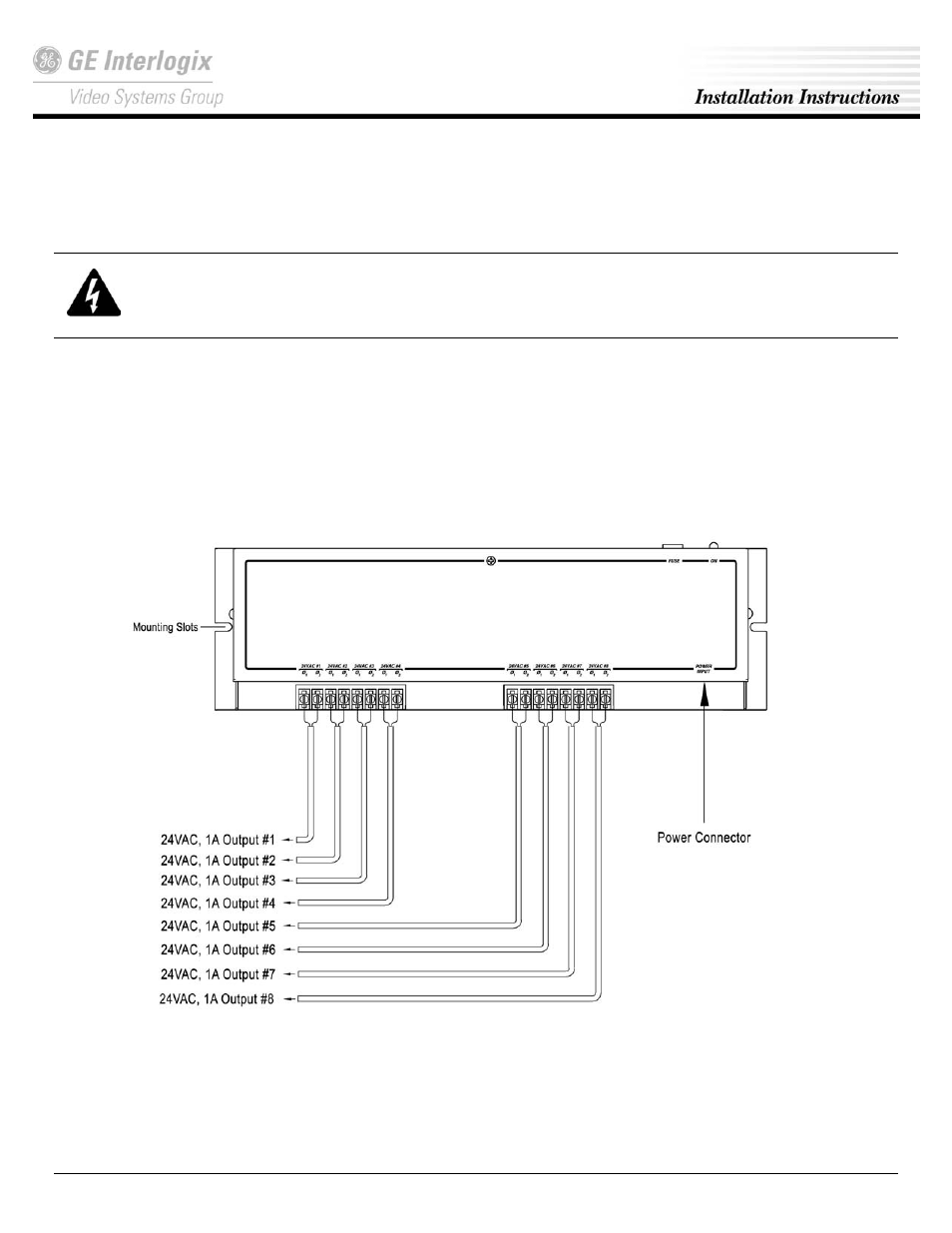

Figure 1. KTP-24-8 cable connections
1045073B / November 2003 Technical Support: 800-469-1676 1
