EN : 2 TVR 41 Quick Start Guide

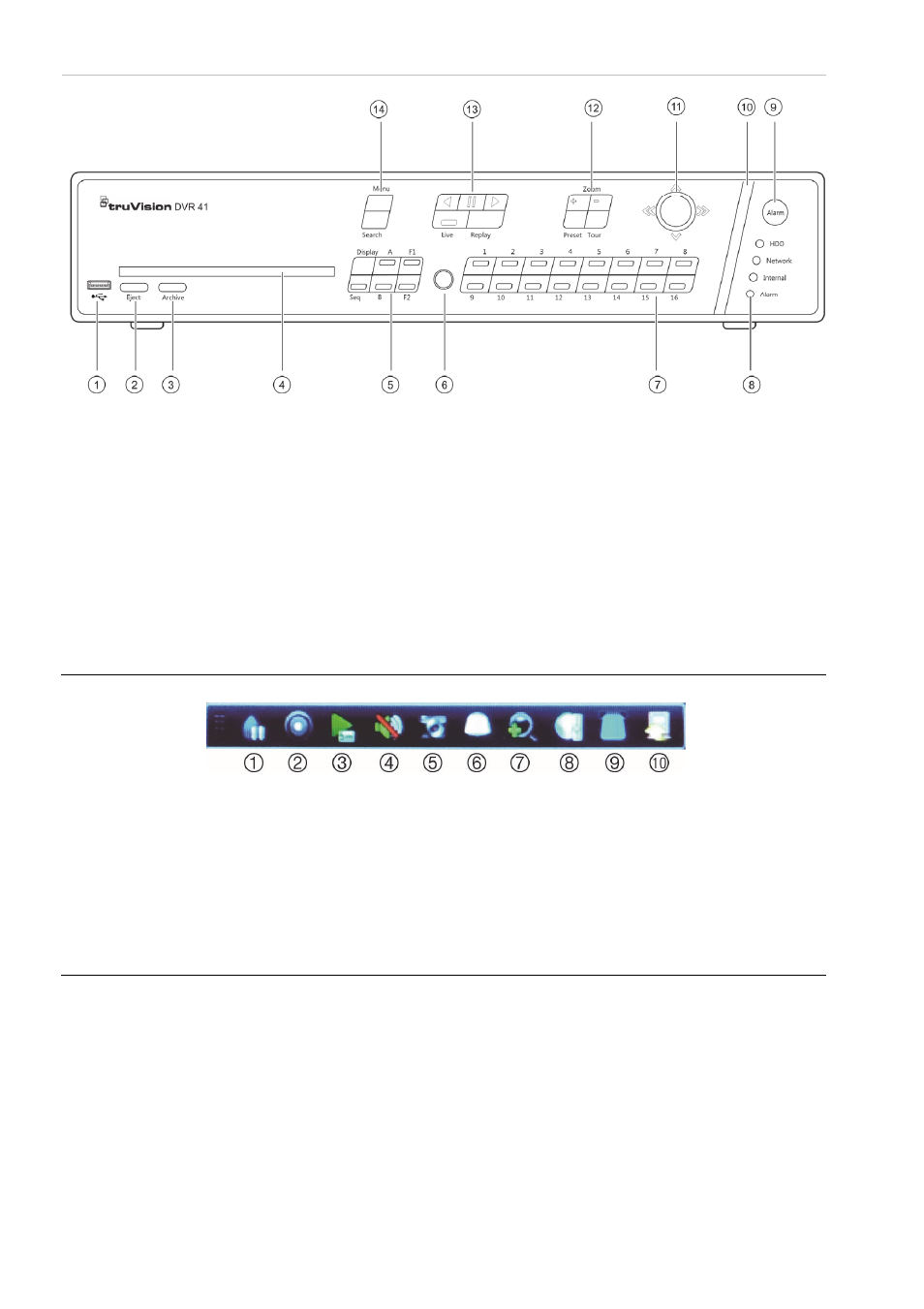

Figure 2: Front panel controls
1. USB port.
2. Press to eject CD/DVD disc.
3. Press to enter archive mode.
4. Insert CD or DVD disc.
5. Press to select the viewing mode (multiview or
full screen) and monitor as well as start/stop
sequencing.
6. IR receiver.
7. Press to switch between different cameras in
live view, PTZ control or playback modes.
8. Status LEDs.
9. Press to manually acknowledge an alarm.
10. Alarm indicator bar blinks when there is an alarm.
11. Move the joystick to select options in menus and
to control playback and PTZ mode.
12. Press to control PTZ zoom and to select presets
and shadow tours.
13. Press to control playback, replay current
playback file, and to return to live view mode.
14. Press to enter the main menu and advanced
search modes.
Figure 3: Quick access toolbar
1. Freeze: Freeze live image of the selected
camera.
2. Manual record: Start/stop manual recording.
3. Instant playback: Play back the recorded video
from the last five minutes.
4. Audio: Enable/disable audio output.
5. Quick snapshot: Capture a snapshot of a video
image.
6. PTZ control: Enter PTZ control mode.
7. Digital zoom: Enter digital zoom.
8. Image settings: Modify the image lighting levels.
9. Text show: Display inserted text on screen.
10. Close: Close the toolbar.
