Calibur Kalatel KA2 ProBridge 8 0150-0217B

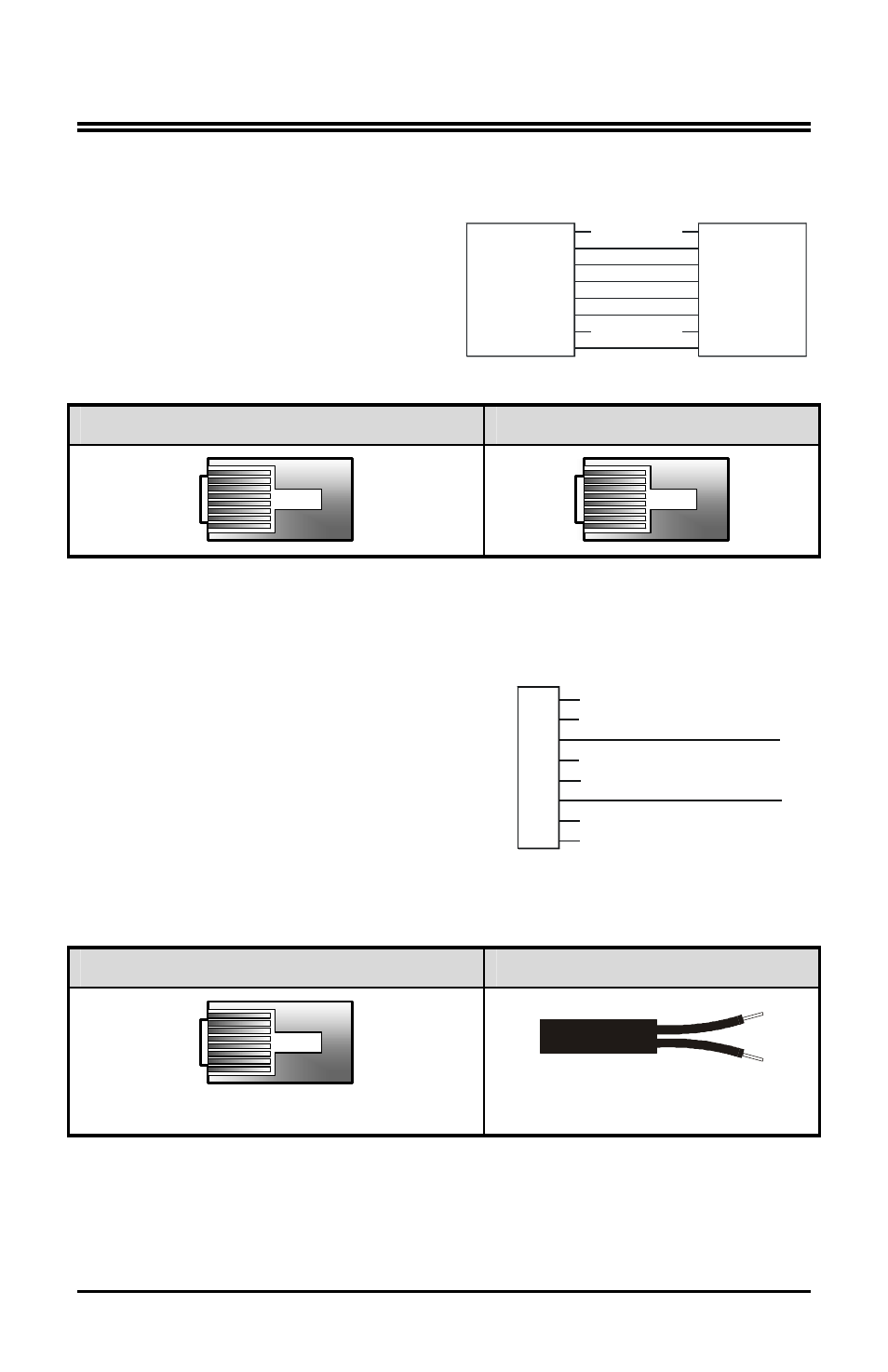

2 Cable Specifications
ProBridge to Calibur Unit Cable (RS-485)
Part Number : 4310-0034B
Communication Type: RS-485
Connector Type: RJ-45 ,RJ-45
Cable Required: 5 Foot RJ-45 to RJ-45
Triplex RS485 Cable (Supplied).
Connects ProBridge to Triplex.
Pin 8: Brown
Pin 7: Brown/White
Pin 6: Green
Pin 5: Blue/White
Pin 4: Blue
Pin 3: Green/White
Pin 2: Orange
Pin 1: Orange/White
Pin 8: Brown
Pin 7: Brown/White
Pin 6: Green
Pin 5: Blue/White
Pin 4: Blue
Pin 3: Green/White
Pin 2: Orange
Pin 1: Orange/White
Do Not Connect
Do Not Connect
RJ-45 RJ45
Connector Connector
RJ-45 Connector RJ-45 Connector
ProBridge Unit to Dome/PTZ Receiver (RS-485)
Part Number : 4310-0032A Cable
Communication Type: RS-485
Connector Type: RJ45, Terminals
Cable Required: 6 Foot RJ45 to Flying
Leads RS422 Cable (Supplied).
Connects ProBridge to J-Box
Pin 8
Pin 7
Pin 6
Pin 5
Pin 4
Pin 3
Pin 2
Pin 1
RJ-45 Flying
Leads
Black
Red
Connector
RJ-45 Connector Flying Leads
