Interlogix VR7800-2DRDT Series - Manual (Page 4)

OFF
1 2
TX RX
A
OFF
1 2
TX RX
B
CH 5 CH 6 CH 7 CH 8
CH 1 CH 2 CH 3 CH 4
OPTICAL
CARRIER
POWER
VIDEO
STATUS
A
B
C
D
E
F
B
A
C
D
E
F
Optical data received
Electrical data transmitted
Camera on
Video Present
Optical carrier received
Power
Status indicating
LEDs will change
from RED to GREEN
with these conditions.
VT VR VT VR VT VR VT VR
VT VR VT VR VT VR VT VR

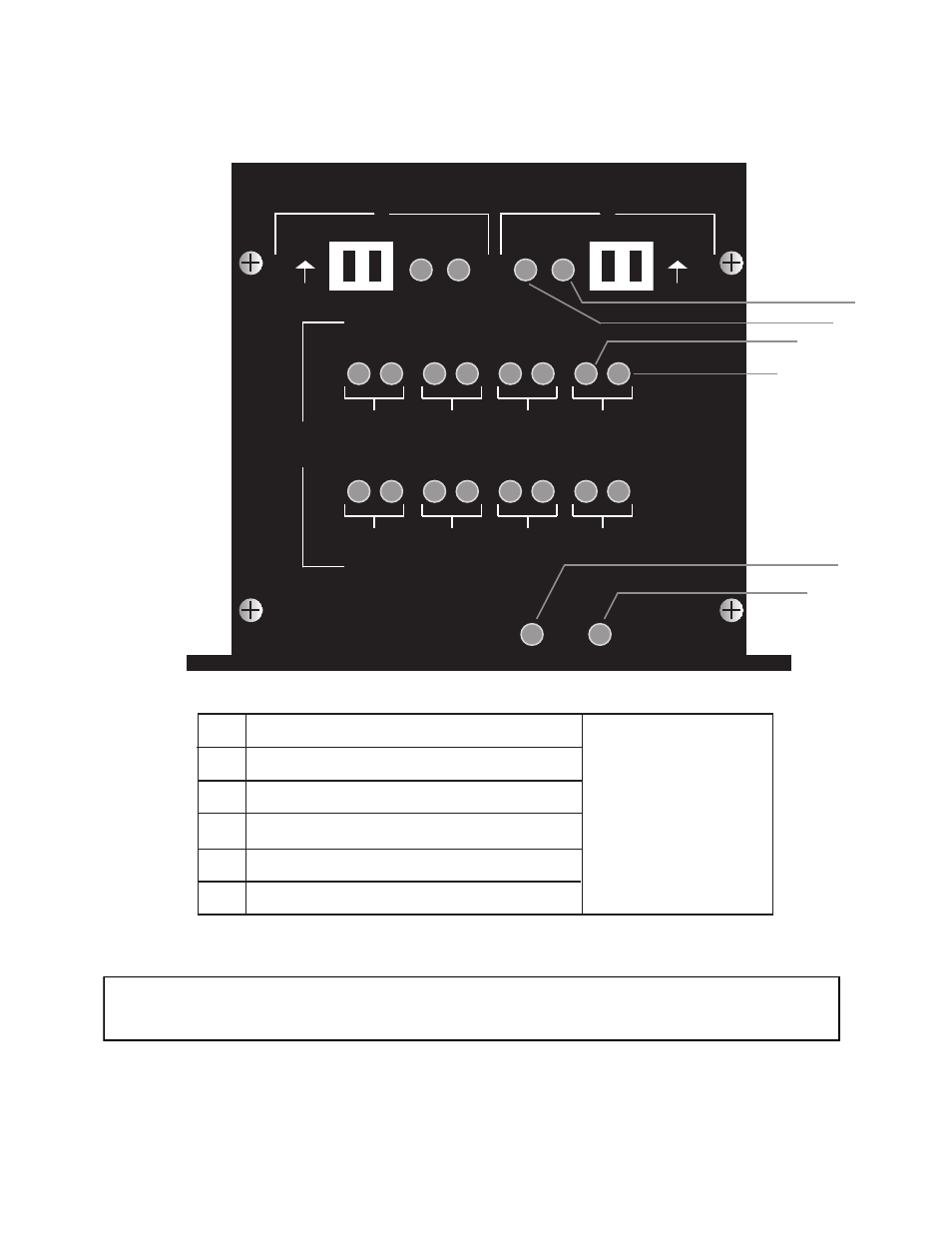

VR7800-2DRDT
NOTE: WITHOUT PROPER FIBER CONNECTION, LED's DO NOT INDICATE
CORRECT OPERATIONAL STATUS OF THE UNIT.
