PARTS LIST

❏

1 Instruction sheet

❏

1 Instrument panel

❏

1 Instrument panel lens

❏

1 Seat back

❏

1 Seat bottom

❏

1 Luggage tank top

❏

1 Luggage tank bottom

❏

2 Luggage tank joiner

❏

1 Elastic seat belts

❏

1 Fiberglass tape

❏

1 Small parts bag: bomb release wire, bomb release mechanism,

dowels, pins, 2- #2 x 3/8" screws, 4- #4 x 5/8" screws

TOOLS AND SUPPLIES

❏

Thin CA (Great Planes

Pro

™

recommended)

❏

6-Minute epoxy

❏

Canopy glue

❏

Hobby knife and #11 blades

❏

Plastic filler putty or Bondo

❏

80, 220 and 400-grit wet/dry sandpaper

❏

Selection of small paint brushes

❏

Model enamel paint – (Testors enamel recommended)

❏

Needle nose pliers

❏

Wood stain

❏

Gloss varnish or polyurethane

❏

Clear silicone adhesive

❏

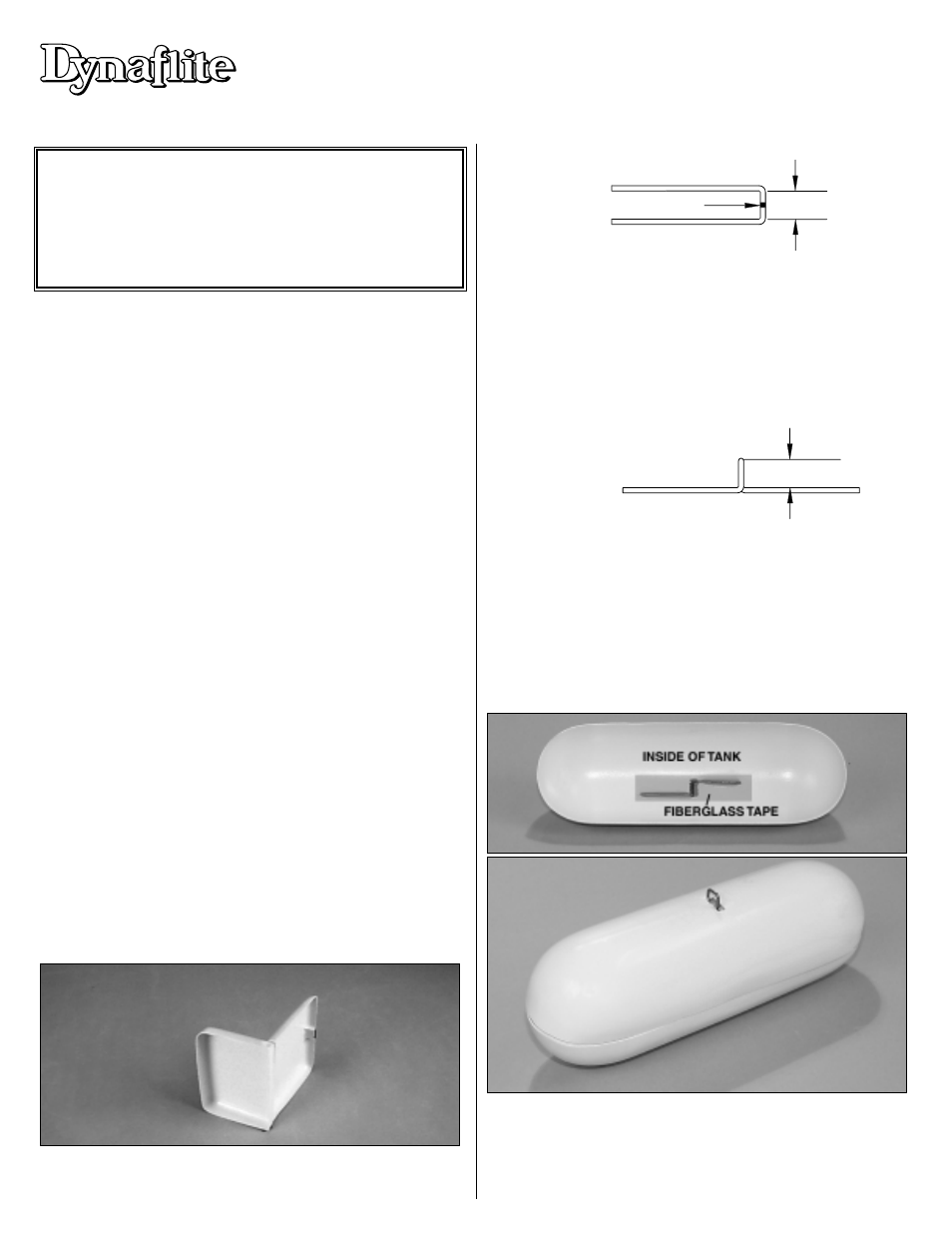

1. Follow the embossed “cut lines” on each part with a sharp

hobby knife to score the plastic. Gently flex the plastic along the
score to break the scrap from around the edges. Sand each part
with progressively finer grades of sandpaper to smooth the edges.
Finish the part off by wet sanding the entire exposed surface with
400-grit paper to give the plastic a “tooth” for better paint adhesion.

❏

2. Use thin CA to glue the seat back to the top surface of the

seat bottom, flush with the rear edge.

❏

3. Using sketch #1 as a template, bend the wire to create a “U”

shape as shown in the above image. The center section is 1/4" wide.

❏

4. Using sketch #2 as a template, bend the legs in opposite

directions as shown in the above image. The center section has a
height of 1/4".

❏

5. Cut out the marked hole on the luggage tank top. Roughen

the inside of the tank for about a 2" area around the holes with 80-
grit sandpaper. Glue the wire to the inside of the tank with thin CA.
Use 6-minute epoxy to glue the furnished strip of fiberglass cloth
over the clip to reinforce the joint.

1/4" [6.35mm]

Sketch #2

MIDPOINT

1/4" [6.35mm]

Sketch #1

SCALE COCKPIT KIT – ASSEMBLY INSTRUCTIONS

Congratulations for being one of those modelers who takes pride in
flying a truly finished model; inside and out! The little bit of extra effort
required to assemble and install this accessory kit will be rewarded by
your personal satisfaction and the applause of your buddies. We have
provided the basic ingredients – you provide the imagination to finish
the details to your liking. All it takes is a couple of evenings and you will
have an even better looking model. Have fun and try to be gracious
when accepting the compliments at the field!
