Connections

Cube Speakers

S—

—0

Bass

Modiie

^£1

Ampifier/Receiver Outputs

OUTPUTS o-m

TO CUBE SPEAKERS

+ LEFT-

mOM RECEIVER OR MVlinER

INPUTS-®

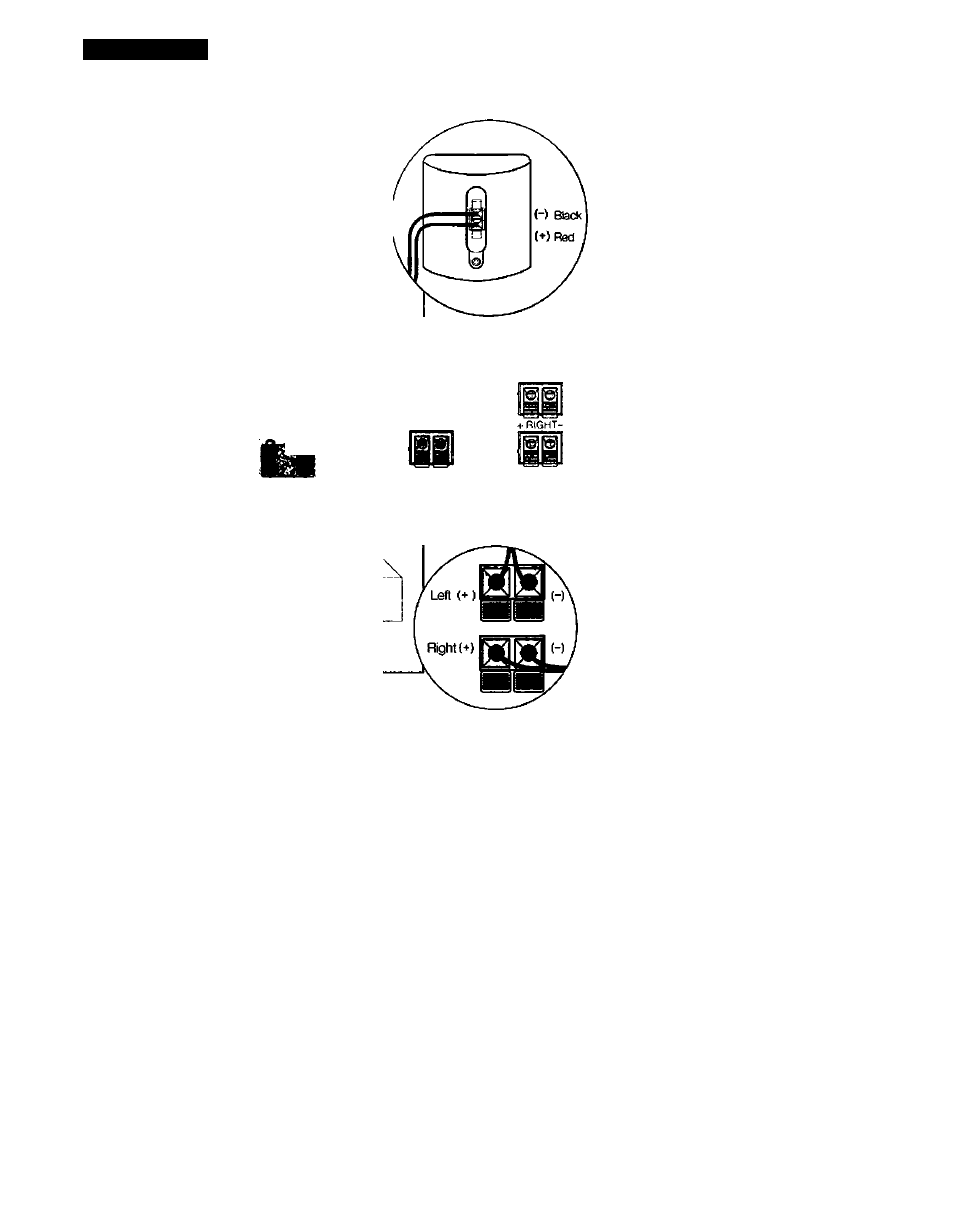

Figure 5

Make sure the wires of all cables are

connected positive to positive (-i- to

+) and negative to negative (- to -).

Check your connections

(Figure 5)

To avoid damaging your speakers, check all connections and correct any problems before

plugging in and turning on the amplifier or receiver. Make sure the cube speakers are con

nected to the bass module and not directly to the amplifier or receiver.

Check to be sure ail connections are made positive to positive and negative to negative. Be

sure wires do not touch across terminals.
