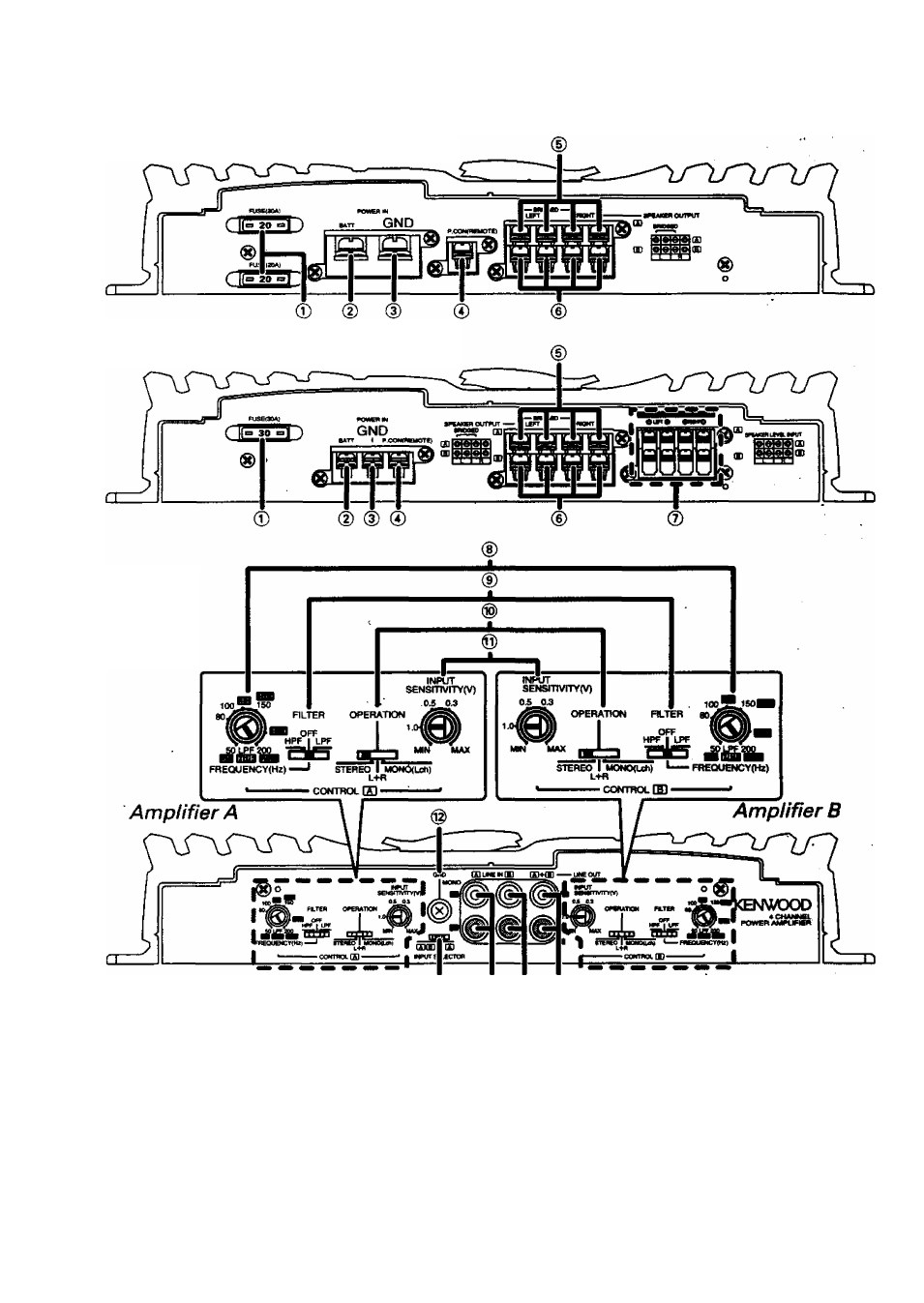

Controls

This is a 4 channel amplifier including 2 stereo amplifiers in a body. One amplifier is referred

to

as

amplifier A and the other is amplifier B. This unit is compatible with a large variety of

systems by combining the switches and functions described in the following.

KAC-848

KAC‘748

KAC-848
KAC-748

® ® ® ®

® Fuse (20 Ax 2 : KAC-848)

(30 Ax 1 : KAC-748)

(

2

) Battery terminal

Ground terminal

0 Power control (REMOTE) terminal

® Amplifier A speaker output

terminals

0 Amplifier B speaker output

terminals

4

English
