CONNECTING TO GAME CONSOLES
7
™
Step 1:
Step 2:
Plug yellow composite video cable from game
console into video input of TV. (Fig. 1)
Plug Red/White RCA cord from game console into
RCA INPUT (E) of BoomChair™2.0. (Fig. 2)
Step 1:
Step 2:
Step 3:
Connect Audio Coupler (not included)
to Red/White RCA cord from game
console.
Connect one end of RCA cord (3b) into
other end of Audio Coupler.
Connect other end of RCA cord (3b) into
RCA INPUT (E) of BoomChair™2.0.
IN
Note: All game consoles are supplied with a custom connector with
yellow video out and RCA red/white audio out.
3b

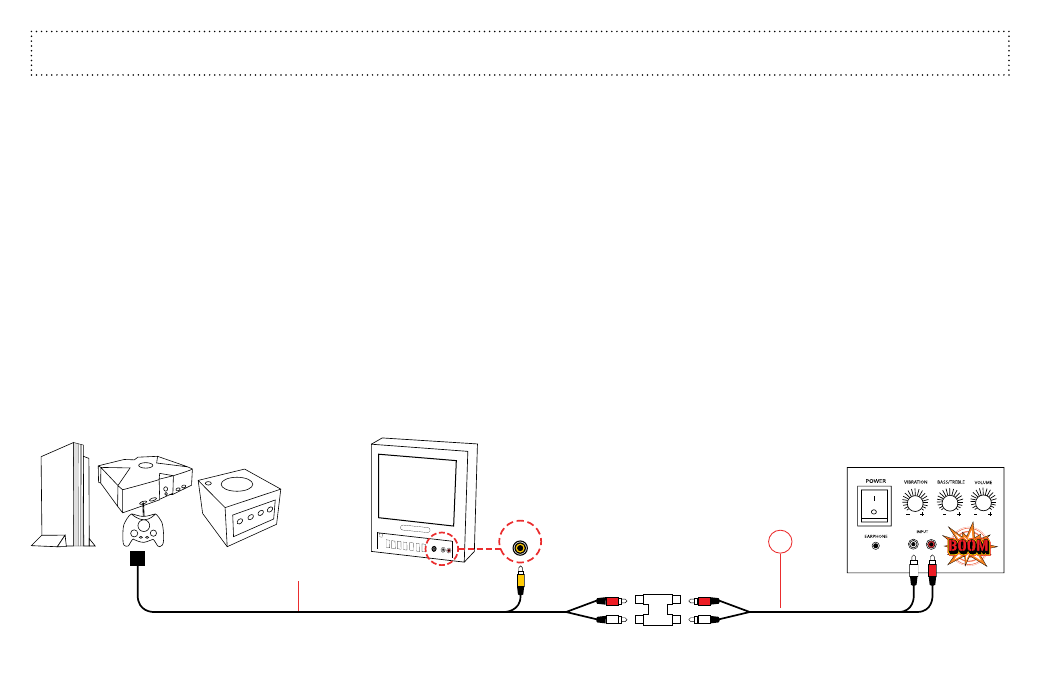

GAME CONSOLE TV BOOMCHAIR™ 2.0
Fig. 1
Fig. 2
Cable supplied with game console
Fig. 3
Alternate Connection:
Connect directly from the TV Audio Out to the BoomChair™
Audio Input using the RCA audio cords provided.
Note: It may be necessary to extend your BoomChair™2.0
further away from your TV or console. Here’s how. (Fig.3)
AUDIO COUPLER
(sold seperately)
