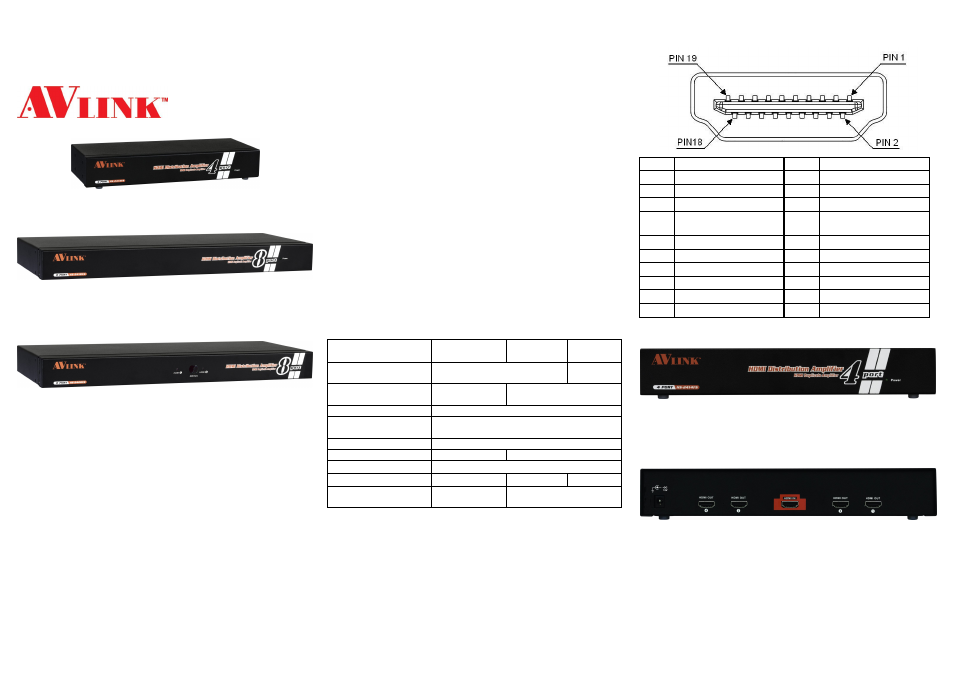

Avlink HS-2428FS - Manual

HDMI
Distribution
Amplifier
(HS-2414FS)
1 In 4 Out
(HS-2418FS)
1 In 8 Out
(HS-2428FS)
2 In 8 Out
U SER M ANUAL V1.0
HS-2414FS / HS-2418FS /
HS-2428FS
Package Contents-
 1 AVLINK HS-2414FS or HS-2418FS or HS-2428FS
HDMI Distribution Amplifier
 1 user manual
 1 power adapter DC 12V 1A for HS-2414FS
 1 AC power cord for HS-2418FS, HS-2428FS
 2 rack rails, 8 screws for HS-2414FS only
 2 rack rails, 6 screws for HS-2418FS, HS-2428FS
Any thing missed, please contact with your vendor.
Introduction
Through the HDMI Distribution Amplifier, you can use one
DVD player/TV receiver to display identical image on 4,8
projectors or HDTV by HDMI port.
HDMI Distribution Amplifier is ideal for:
 Test bench facilities
 Data Center
 Help desks
Features
 Use PanelLink digital technology.
 Compliant with the specification of HDMI.
 Support high-resolution display up to UXGA, 480p, 480i,
720p, 1080i, 1080p, 4K2K,deep color up 12 bits.
 2 HDMI input and select one to all output (displays) by
switch key on front panel (HS-2428FS only).
 Can be cascaded.
 1U rack design for HS-2414FS, HS-2418FS,
HS-2428FS.
Specifications
Function HS-2414FS HS-2418FS HS-2428FS
HDMI Input Connector
(A-Type Female)
1 2
HDMI Output Connector
(A-Type Female)
4 8
Max. Resolution UXGA, 4K2K (8Bits)
Cable Distance
(Device to Monitor)
10 m (Max.)
Signal Type Standard HDMI Signal
Power Adapter (Min.) DC 12V 1A AC 100~240V
Housing Metal
Weight 975 g 2340 g 2360 g
Dimensions (LxWxH)
mm
269x104
x45
440x185x45
-1-
Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1 TMDS Data 2+ 11 TMDS Clock Shield
2 TMDS Data 2 Shield 12 TMDS Clock -
3 TMDS Data 2- 13 CEC
4 TMDS Data 1+ 14
Reserved
(N.C. on device)
5 TMDS Data 1 Shield 15 SCL
6 TMDS Data 1- 16 SDA
7 TMDS Data 0+ 17 DDC/CEC Ground
8 TMDS Data 0 Shield 18 +5 Power
9 TMDS Data 0- 19 Hot Plug Detect
10 TMDS Clock+
FRONT VIEW
1. Power LED
REAR VIEW
1. Input Power Jack
2. “HDMI In” Port
3. “HDMI Out” Port
*There are 2/4/8 out ports for HS-2414FS /
HS-2418FS (HS-2428FS).
-2-
