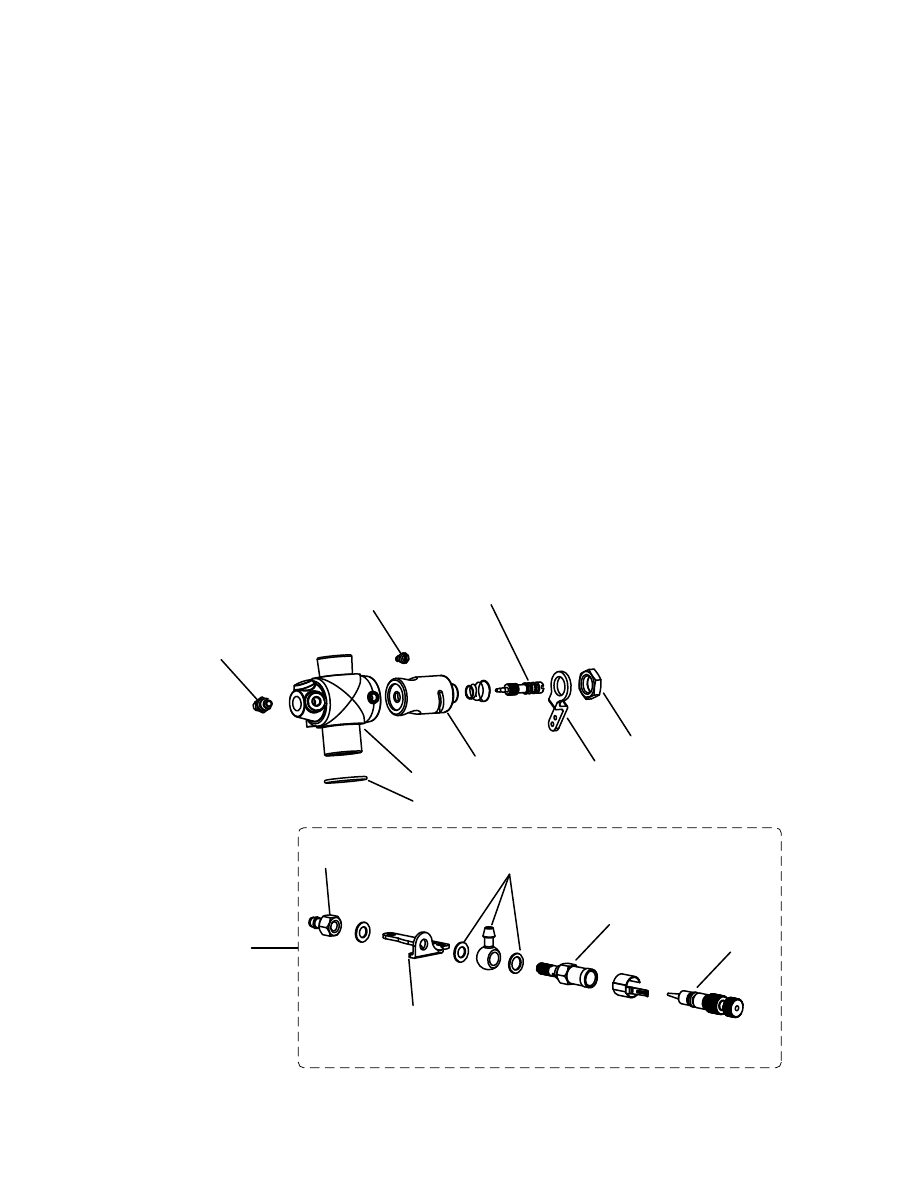

CARBURETOR
# Part
# Description
20 SUPG1900 Carburetor Body with Spray Bar
21 SUPG1901 Carburetor Nipple Body
22 SUPG1902 Carburetor Barrel
23 SUPG1904 Carburetor O-Ring
24 SUPG4477 Fuel Inlet with O-Rings
25 SUPG4841 High Speed Needle
26 SUPG4842 Remote Needle Assembly
27 SUPG4843 High Speed Needle Socket
28 SUPG4844 Remote Needle Bracket
29 SUPG4845 Remote Fuel Nipple
30 SUPG4901 Low Speed Needle
31 SUPG6051 Throttle Arm
32 SUPG6059 Throttle Arm Nut
33 SUPG6075 Throttle Stop Screw
20
22
21
33
30
32
31
23
26
28
29 24
27
25
