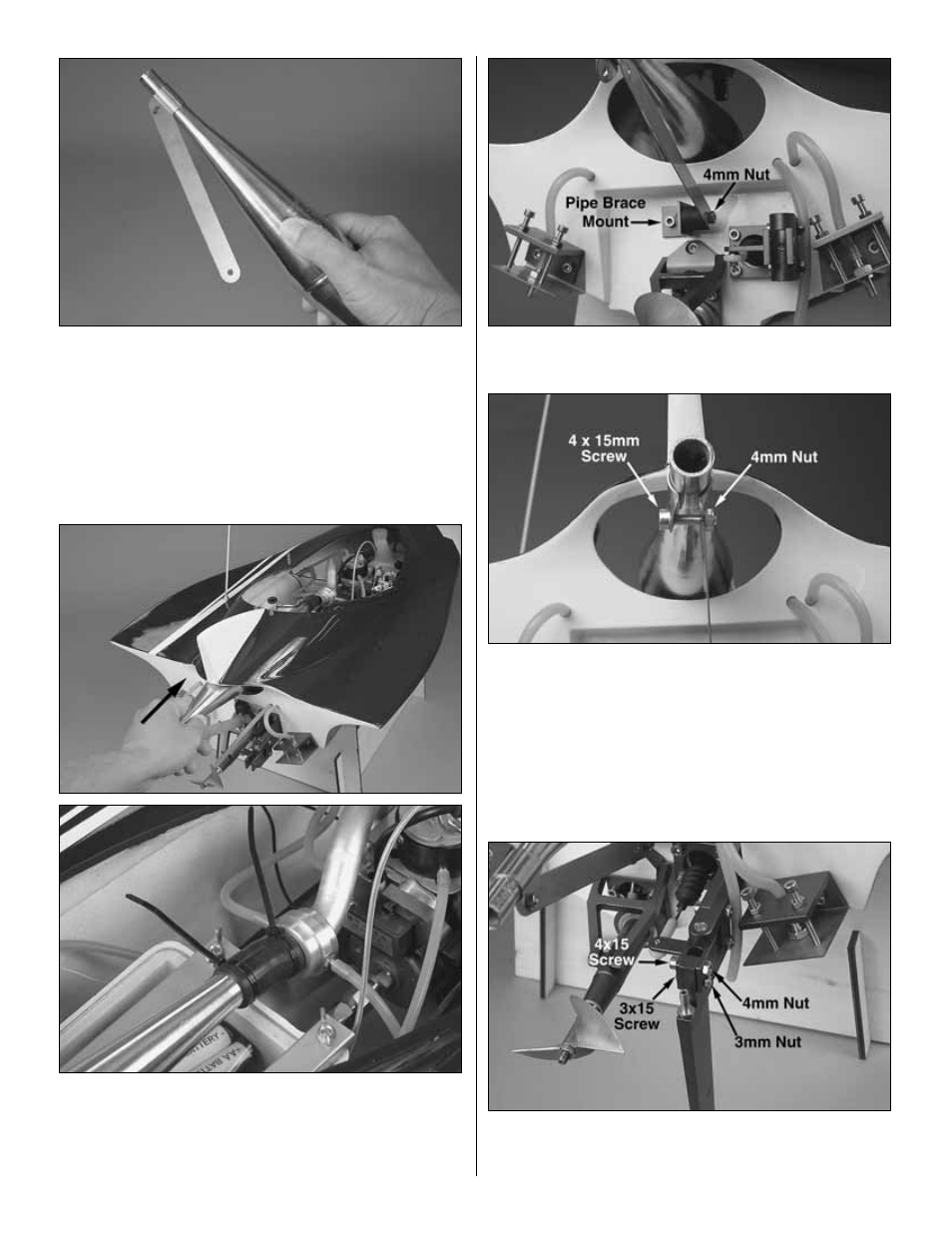

3. Slide the tuned pipe brace onto the small end of the
tuned pipe as shown.
❏
4. Insert the tuned pipe in through the exhaust outlet at
the rear of the boat until the exhaust coupler joins the tuned
pipe and exhaust manifold. Secure the exhaust coupler in
place with the remaining tie-strap as shown. Carefully cut
off the excess tie-strap end.
❏
5. Place the tuned pipe brace onto the pipe brace mount
on the transom as shown and secure it with the 4mm nut.
❏
6. Adjust the pipe so that it is not resting on the radio box
and insert the 4x15mm screw. Attach the 4mm nut.
INSTALLATION OF RUDDER
❏
1. Locate the rudder from the accessory box. Remove the
3mm and 4mm nuts and the 4x15mm and 3x15mm screws.
❏
2. Insert the rudder into the rudder control arm assembly as
shown. Replace the 4x15mm screw and 3x15mm screw and
secure them with the 4mm and 3mm nuts, respectively.
6
