472
uu Fuses u Fuse Locations
Han
d
lin
g the U
n
expected

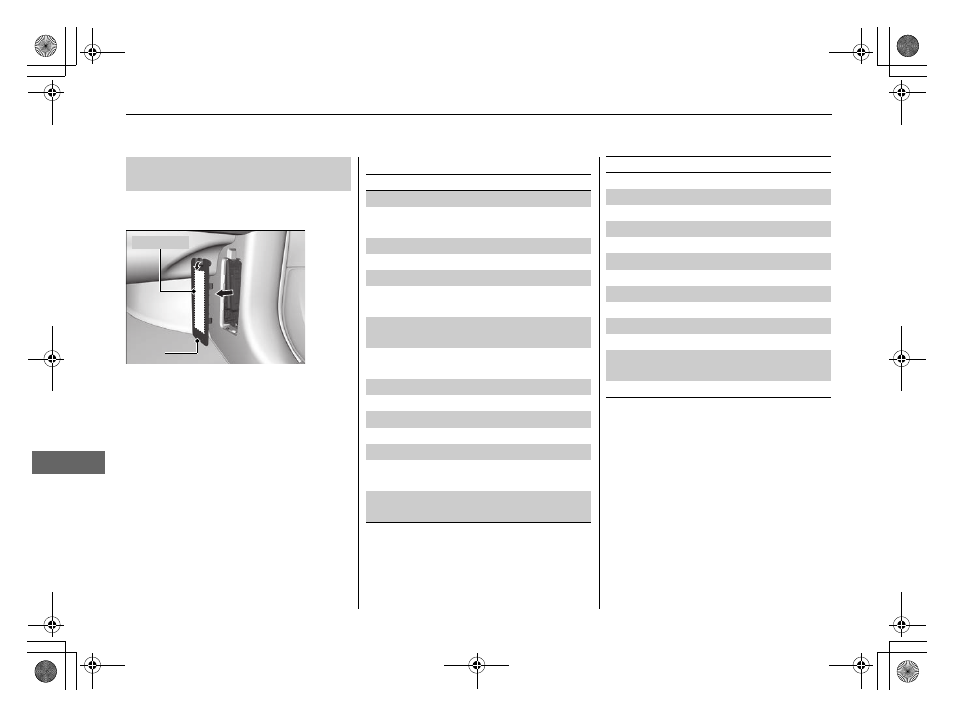

Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■ Passenger’s Side Interior Fuse
Box
Cover
Fuse Label
■ Circuit protected and fuse rating
Circuit Protected Amps
1 Right e-pretensioner * (30 A)
2
Rear Passenger’s Side
Power Window
20 A
3 ACM 20 A
4 Front DEF * (15 A)
5 AVS/Seat Heaters 20 A
6
Front Passenger’s Power
Window
20 A
7
Passenger’s Power Seat
Sliding
20 A
8
Passenger’s Power Seat
Reclining
20 A
9 Passenger’s Lumber * (7.5 A)
10 − −
11 HSW * (10 A)
12 − −
13 − −
14
Rear Accessory Power
Socket
20 A
15
Console Accessory Power
Socket
20 A
16 − −
17 − −
18 Premium AMP 30 A
19 SRS1 10 A
20 Passenger’s ECU 7.5 A
21 SVTM4 7.5 A
22 − −
23 − −
24 IG1 OPDS 7.5 A
25 Illumination 7.5 A
26 Left e-pretensioner * (30 A)
27
Front Accessory Power
Socket
20 A
28 AC Inverter (30 A)
Circuit Protected Amps
* Not available on all models
