The cable is 6 conductor, shielded (floating) and 20 feet in length.
EXC+ Red EXC - Black
SHIELD Yellow C2+ Gray
C2- Violet SIG + Green
SIG - White

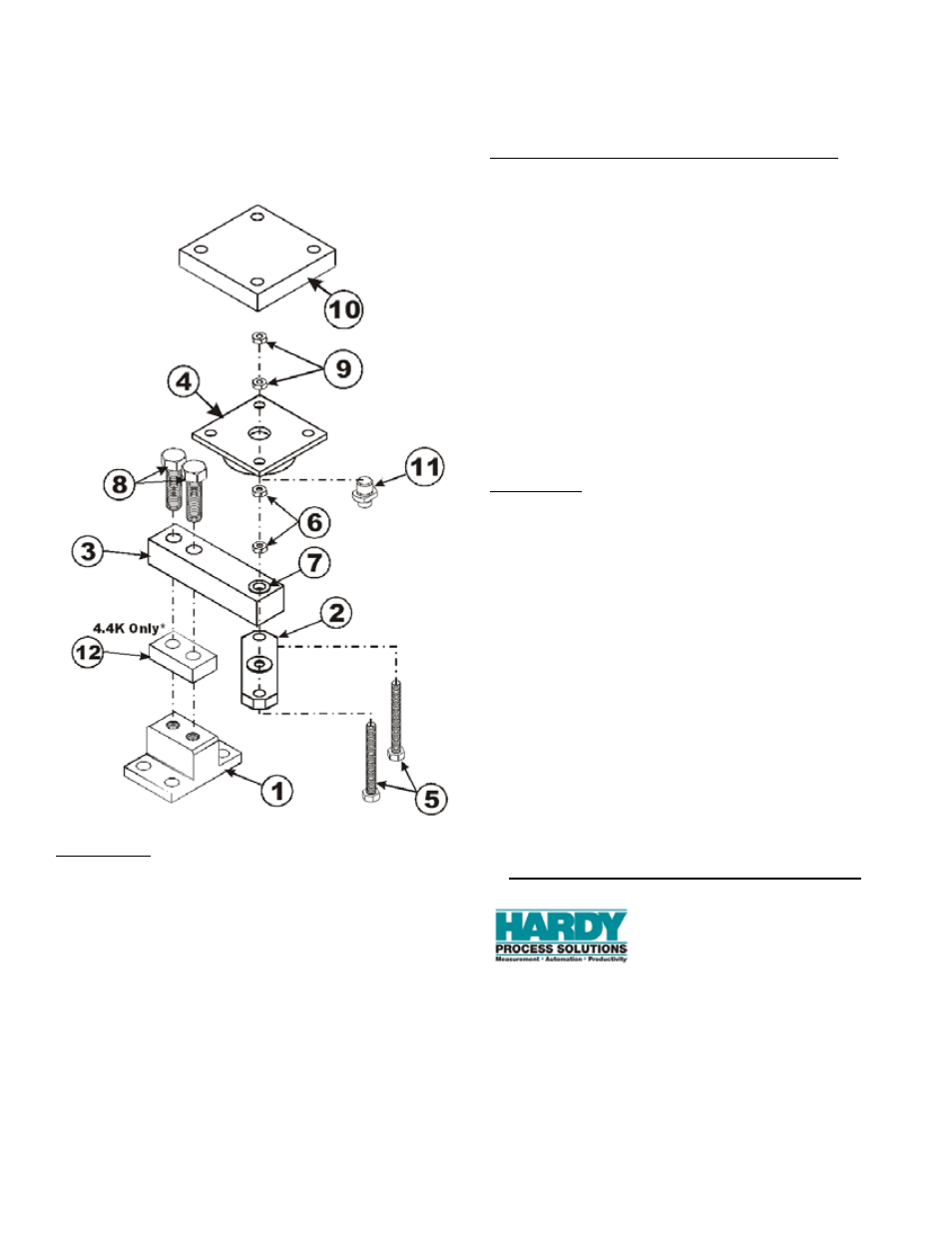

ISO Exploded View
Part Numbers
1. Base, Load Point - Prt. # 5504-0001-01
2. Lift Off Plate - 440 & 1.1K (Prt. # 5504-0018-01) 2.2K
(5504-0018-02) 4.4K (Prt. # 5504-0018-03)
3. Load Sensor (See Front Page)
4. Rubber Element - 5504-0015-01
5. Lift Off Hex Bolts:
• 5/16” - 18 x 3.5” - A4 - 80 (Stainless) 4.4 K
• 5/16” - 18 x 3.0 - A4 - 80 (Stainless) 2.2 K
• 5/16” - 18 x 2.75 - A4 - 80 (Stainless) 440 & 1100
6. Lift Off Hex Nuts - 5/16” - 18 - A4 - 80 (Stainless)
7. Load Cup - 440 & 1.1K (Prt. # 5504-0017-01) 2.2K (Prt. #
5504-0017-02) 4.4K (Prt. # 5504-0017-03)
8. Load Sensor Hex Bolts:
• 440lb. (1.1K) K - M12 x 35mmL - A4 - 80 (Stainless)
• 2.2 K - M12 x 45mmL - A4 - 80 (Stainless)
• 4.4 K - M12 x 60mmL - A4 - 80 (Stainless)
9. Upper Hex Nuts - 5/16” - 18 - A4 - 80 (For Shipping Only)
10. Optional Top Plate for Bolting or Welding
11. Load Pin - Prt. # 5504-0016-01
12. *Spacer (4.4 K Only)
Recommended Fasteners and Torque Specifications -
Use when attaching the load point assembly with fas-
teners to a vessel or support base plate.
• Fasteners - 3/8” - 16 with washer or 7/16” - 14 without
washer, or M10 with washer. 3/8 bolts allow for more
adjustments.
• Torque - HI LPRE440
Minimum - 15 ft-lb (20 Nm)
Maximum - 35 ft-lb (45 Nm)
• Torque - HI LPRE1.1K
Minimum - 15 ft-lb (20 Nm)
Maximum - 35 ft-lb (45 Nm)
• Torque - HI LPRE2.2K
Minimum - 25 ft-lb (35 Nm)
Maximum - 35 ft-lb (45 Nm)
• Torque - HI LPRE4.4K - 90 ft-lb (125 Nm)
Specifications
• Load Cell Material - 17-4 PH Stainless Steel
• Sealing - Potted
• Mount Material - Stainless Steel
• Capacities - 440,1.1k, 2.2k, 4.4k
• C2 Second Generation Calibration
• Matched mV/V/ohm - Yes
• Rate Output mV/V - 2 ± 0.002
• Hysteresis - < ± 0.025%
• Non-Linearity - < ± 0.025%
• Temp. Effect on Output% of Output /C - <= ± 0.002
• Temp. Effect on Zero Balance% of R.O/C - <= ± 0.002
• Zero Balance - <= ± 1.0%
• Comp Temp C -10 to +40
• Operating Temp -40 to +80
• Safe Load -% of Rated Load - 150
• Ultimate Load -% of Rated Load - 150
• Input Resistance - 1050 to 1200 Ohms ± 50
• Output Resistance - 1001 ± 1.0%
• Washdown - IP67
