Microcassette™ Recorder
RN-102/122

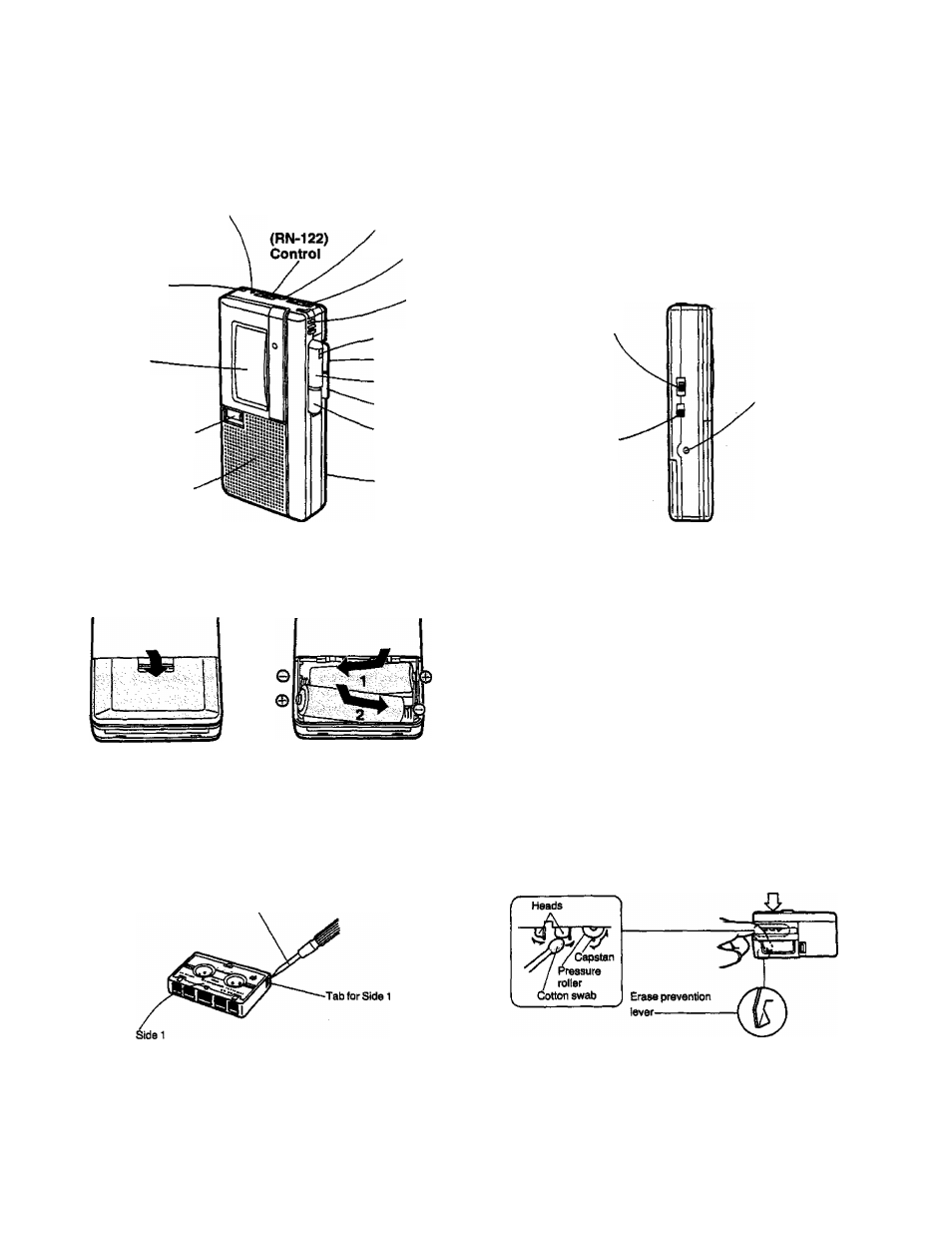

Location of Controls
hhh
Operating Instructions
Before connecting, operating or adjusting this product,
please read these instructions completely.
RQT0888-L
F1290t0
GN
REC/SLE
ВАТТ
Indicator
(RN-122)
VOLUME/
VAS LEVEL
MONIT
Jack
Cassette
Compartment
Cover
The shape of RN*102's
cover is different
from this figure.
Tape COUNTER and
Reset Button
(RN-122)
Speaker
Power Source
MIC Jack
"(RN-122)
'SLEЯONE Selector (RN-122)
MIC
REC Button
REW/REV Button
PLAY Button
FF/CUE Button
STOP/EJECT Button
Battery Compartment
(back)
VAS (RN-122)/
PAUSE/
FAST PLAY
Selector
TAPE SPEED
Selector
DC IN Jack
(DC IN3Ve-S)-0)
1
Two Panasonic
UM-3, R6/LR6 batteries
or equivarent (not included)
•Batteries installed with incorrect polarities may leak and damage
this unit.
•Do not mix batteries (old and new) or types (carbon and alkaline).
•When the batteries are weak, the tape speed will slow down, the
sound will become distorted, and the volume will decrease.
•if the set is not used for a long period of time or is used only from an
AC power source, remove all the batteries to prevent potential
damage due to possible battery leakage.
•For AC power operation, use only Panasonic AC adaptor
(RD-9443HA, optional).
Battery removal
Press the © side toward the © battery terminal and lift up.
Rècord Prevention
Maintenance
Removing the tab(s) of the cassette (with a small screwdriver) will
prevent accidentai erasure.
To record again, cover the hole of the tab with adhesive tape.
Screwdriver
Get into habit of cleaning the head assembly (after every 10 hours or
so) with a cotton swab dampened with a little alcohol.
•REC Button
