Assembly

Instructions

TY-36G22M

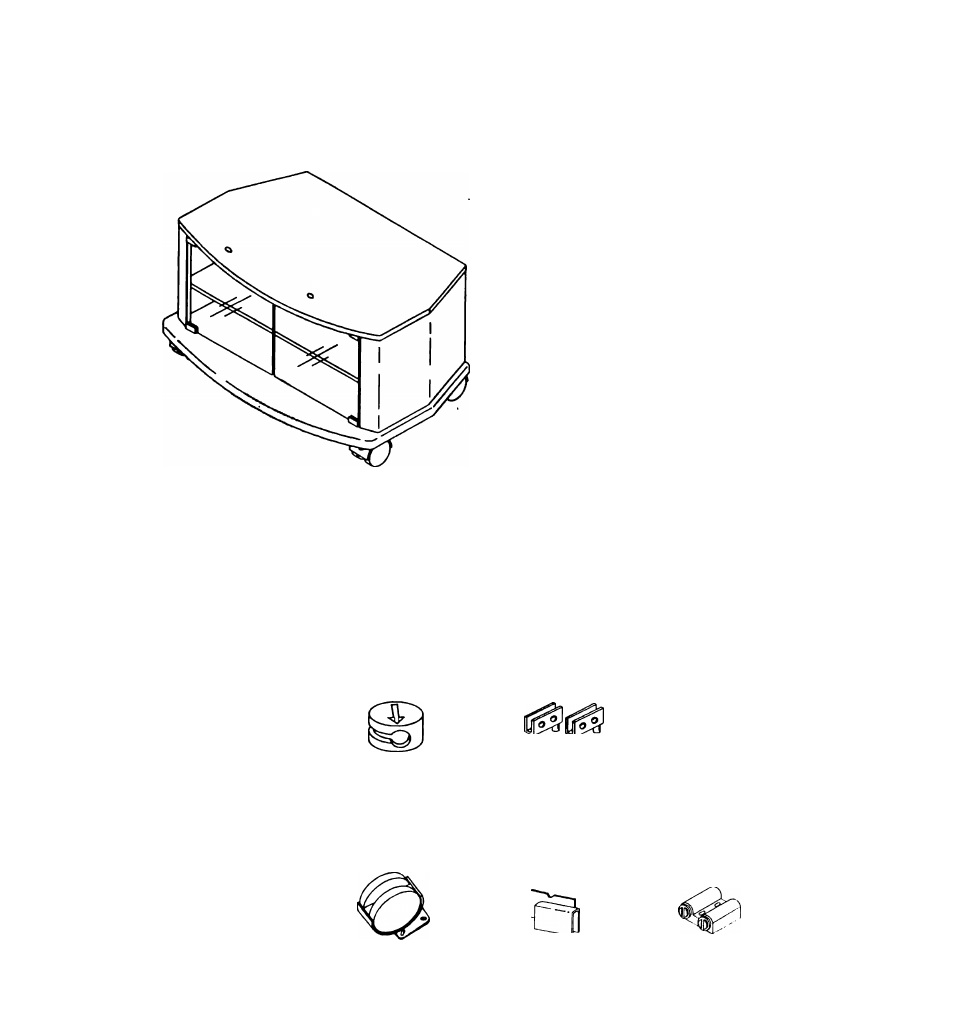

VIDEO STAND

TOLL FREE CUSTOMER ASSISTANCE LINE

1-800-900-MICA (6422)

Monday - Thursday: 7:30 am - 4:30 pm E.S.T.

Friday:

7:30 am - 2:30 pm E.S.T.

Important

A study of the assembly instructions will not only save you

time but may prevent possible damage to your new stand.

Assistance may be required for some assembly procedures.

THIS STAND IS DESIGNED FOR USE WITH TELEVISIONS.

UL APPROVED MODELS:

CT-36G22V, CT-36G22UV,

CT-36G32V, CT-36G32UV, CT-36XF54V, CT-36VG50V

Your Hardware Pack Contains / Replacement Parts

The Tools Required:

Hammer

Philips

Screwdriver

Slot

Screwdriver

Cam Lock Screw

8 Pcs.

TKC2Q25131

Cam Lock Housing

8 Pcs.

B

TKX2Q1162

Hinges

a ^ _

a© a

1

s

2 Bags

TKC2Q25114

Dowels

16 Pcs.

TKD2Q26023

Set Location Pin

Nail

Shelf Pin

Screw #6 X 5/8"

M

a

Qt

r>

(HD

2 Pcs.

TKC2Q25094 9 Pcs.

TKC2Q25112 4 Pcs.

TKC2Q25036 2 Pcs.

THT2Q07B99B

Screw #8

X

5/8"

16 Pcs. THT2Q0FB76B

Caster

4 Pcs.

1 Bag

J

TBL2QA5118

Touch Plate

2 Bags

K

TKC2Q25082

Magnetic Latch

1 Pc.

TKC2Q25015
