HOLD THESE PARTS IN PLACE with one
hand while attaching the housing with the
other hand (Fig 9). Attach the housing by
sliding the cutout in the wall of the housing
down in between the control knob and stator.
The housing will click into place, when the
side tabs are inserted in the bowl.
FOUNTAIN REASSEMBLY
1)
2)
3)
4)
5)

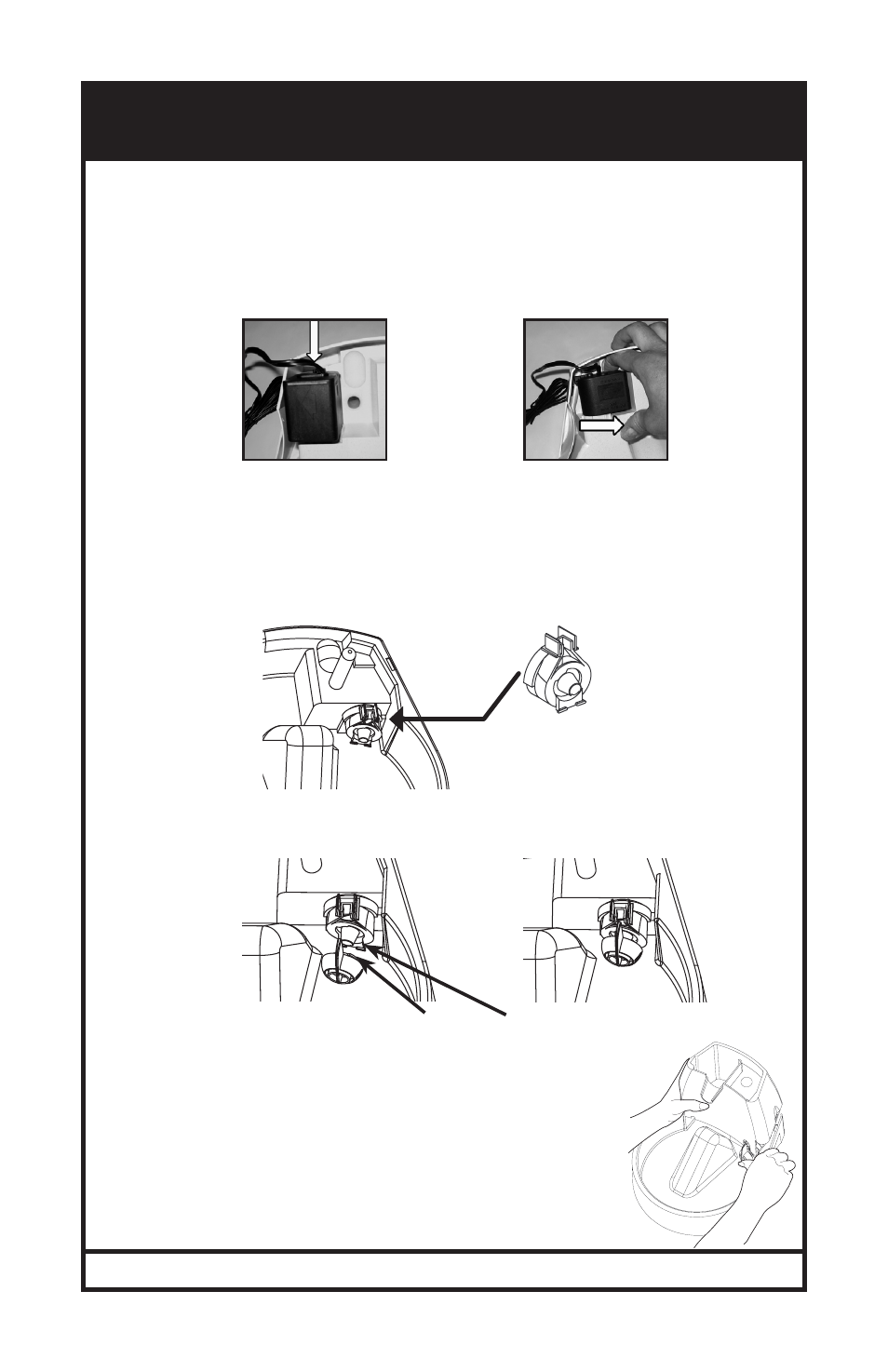

Turn the bowl upside down. Reattach the motor by pushing the
threads of the motor through the hole in the bowl. The motor
goes in at a right angle to the bowl, see Figures 6a & 6b. If
you cannot turn the motor into its resting position (Fig. 6b), the
motor is not pushed into the hole as far as it will go.
Fig. 6a Fig. 6b
After turning the motor a quarter turn, it should now be even
with the bottom of the bowl (Fig. 6b). Turn the bowl back over.
Place the stator over the exposed portion of the motor found in
the bowl. (See Fig. 7)
Fig. 7
STATOR
Join the flow control knob and stator together by placing the
tabs of the knob into the groove of the stator. (See Fig. 8)
Fig. 8
TABS GROOVE
Fig. 9
