Safety Precautions
This is a sophisticated radio controlled model that must be operated with caution and common sense. Failure to
operate your Mini-DT in a safe and responsible manner could result in damage to the model and property. The
Mini-DT is not intended for use by children without direct adult supervision. Losi and Horizon Hobby shall not be liable
for any loss or damages, whether direct, indirect, special, incidental, or consequential, arising from the use, misuse, or
abuse of this product or any product required to operate it.
• This model is controlled by a radio signal subject to interference from many sources outside your control. This
interference may cause momentary loss of control so it is advisable to always keep some distance in all directions
around your model as a safety margin to avoid collisions.
• Always operate your model in an open area away from cars, traffic and people.
• Avoid running your model in the street where damage can occur.
• Never run your Mini-DT with low transmitter batteries.
• Carefully follow the directions and warnings for this and any optional
support equipment.
• Keep all chemicals, small parts and anything electrical out of the
reach of children.
Warning
This model may only be powered by the stock 6-cell 7.2-volt NiMH battery pack
(LOSB1202) or a 2-cell 7.4-volt LiPo battery pack (LOSB0871). The use of higher
voltage battery packs will cause ESC damage and void any warranty. To use
brushless or 3-cell LiPo batteries you must change the electronics. Consult your
local hobby dealer or check www.losi.com.

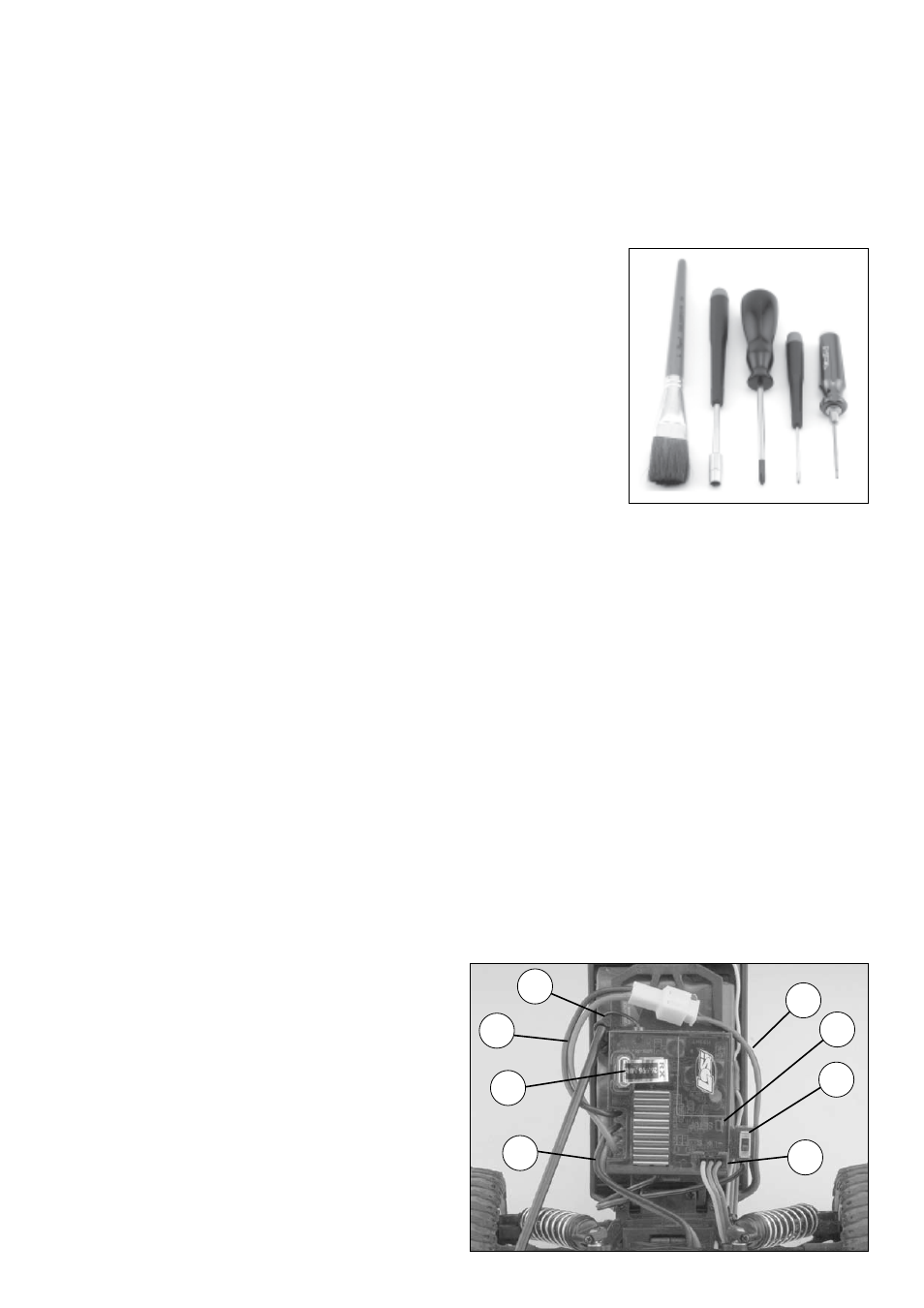

Tools and Items You Will Find Handy
• Soft bristle brush for cleaning
• 5.5mm nut driver for the wheel nuts
• #0 or #1 Phillips screwdriver
• LOSA99100 .050” Allen Wrench
Note: Use only Losi tools or other high-quality tools. Use of inexpensive tools
can cause damage to the small screws and parts used on this type of model.
The Radio System
The following is an overview of the various functions and adjustments found on your Losi/Mini-DT radio system. Since
the Mini-DT operates on a radio signal, it is important for you to read and understand about all of these functions
before driving the model.
The Receiver
1. On/Off Switch: Controls Power to the Receiver/ESC.
2. Servo Port/Plug: Where the steering servo plugs in (note polarity on case).
3. Antenna Wire: Receives the radio signal from your transmitter.
4. Receiver/ESC Power Lead: Connects to the battery lead for power.
5. Frequency Crystal: Determines the frequency/channel you are operating on.
6. Motor Lead: Connects the ESC to the motor.
7. Battery Leads: Connects the motor battery to the ESC.
8. Setup Button: Enters ESC into setup mode.
