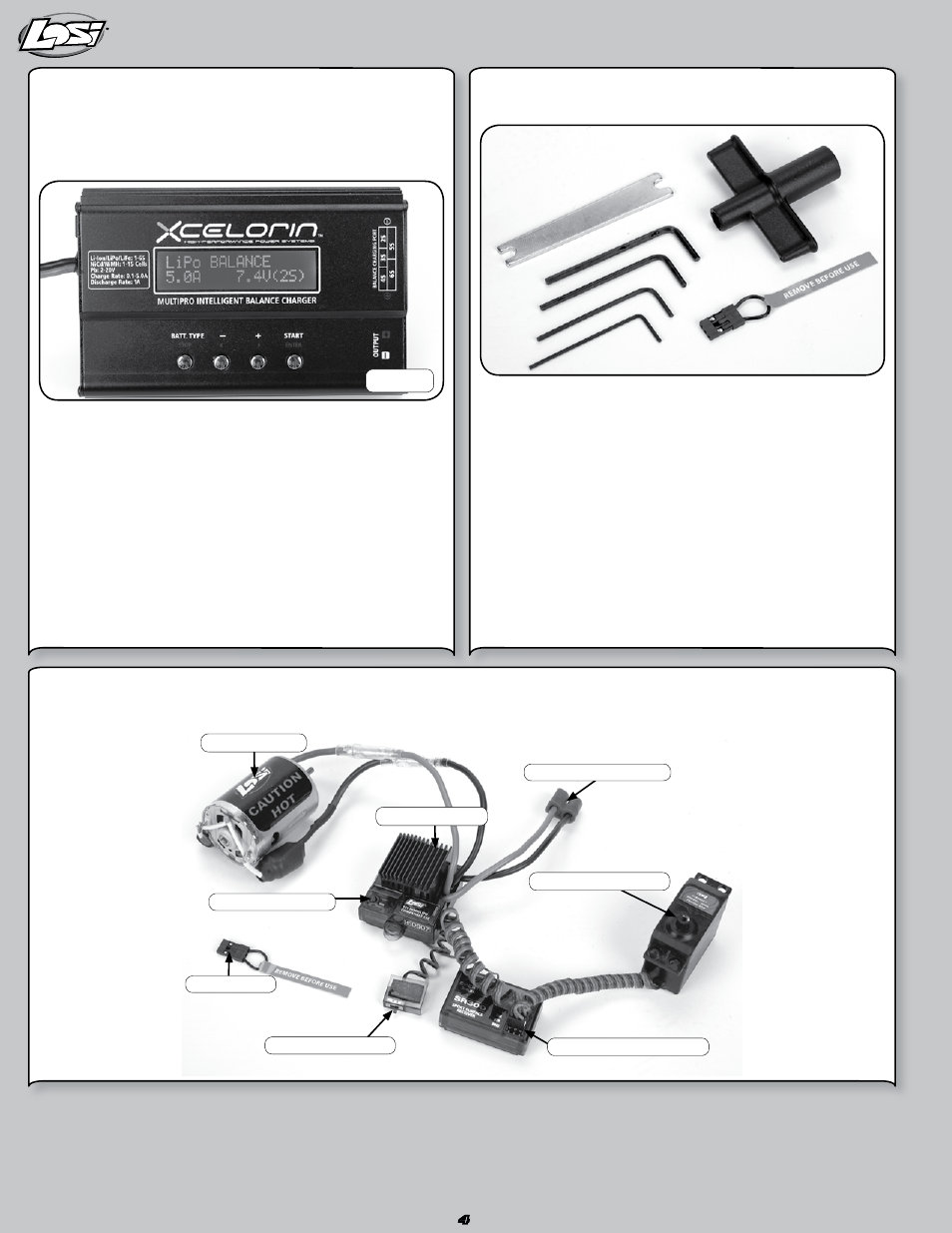

XXX-sct electroNics system overview
BIND PLUG
ON/OFF SWITCH
LOSI MSC12L
STEERING SERVO
SETUP BUTTON
EC2
™
BATTERY PLUG
LOSI MOTOR
SPEKTRUM SPMSR300
Peak detectioN charger
Peak detection chargers monitor the battery during charging and
automatically shut off upon full charge. You can either purchase a peak
detection charger that plugs into a household AC wall socket or one
that requires you to also purchase a 12V power supply.
LOSB9602
If using a charger other than a peak detection charger, make sure your
battery is fully discharged prior to charging. Many of these have a
15–20 minute timer that allows you to set a charge time. If the battery
is not fully discharged, you can potentially over-charge your battery
pack.
Do not charge any battery unattended, and monitor for heat
build up. If the battery pack is more than warm to the touch, immedi-
ately discontinue charging. Read all safety precautions supplied by the
charger and battery manufacturer.
suPPlied aNd reQuired eQuiPmeNt
Supplied tools
2-Way wrench
• Transmitter/Receiver BIND Plug
•
4 Hex Wrench “L” shaped
• .050, 1/16, 5/64, and 3/32
•
Flat Turnbuckle Wrench
• 4 AA Alkaline Batteries
•
Recommended Accessories
Hobby grade knife
• Needle nose pliers
•
Side cutting pliers
• Safety goggles
•
Soldering iron
• Double-sided tape (LOSA4004)
•
CA glue (LOSA7880 or LOSA7881)
•
Required Equipment
A 6- to 7-cell NiMH battery pack. Or with proper knowledge, LiPo
•
battery packs.
NiMH battery charger with automatic peak detection
•
recommended (LiPo charger if using LiPo battery).
