Karcepts KCD02 - Manual (Page 7)

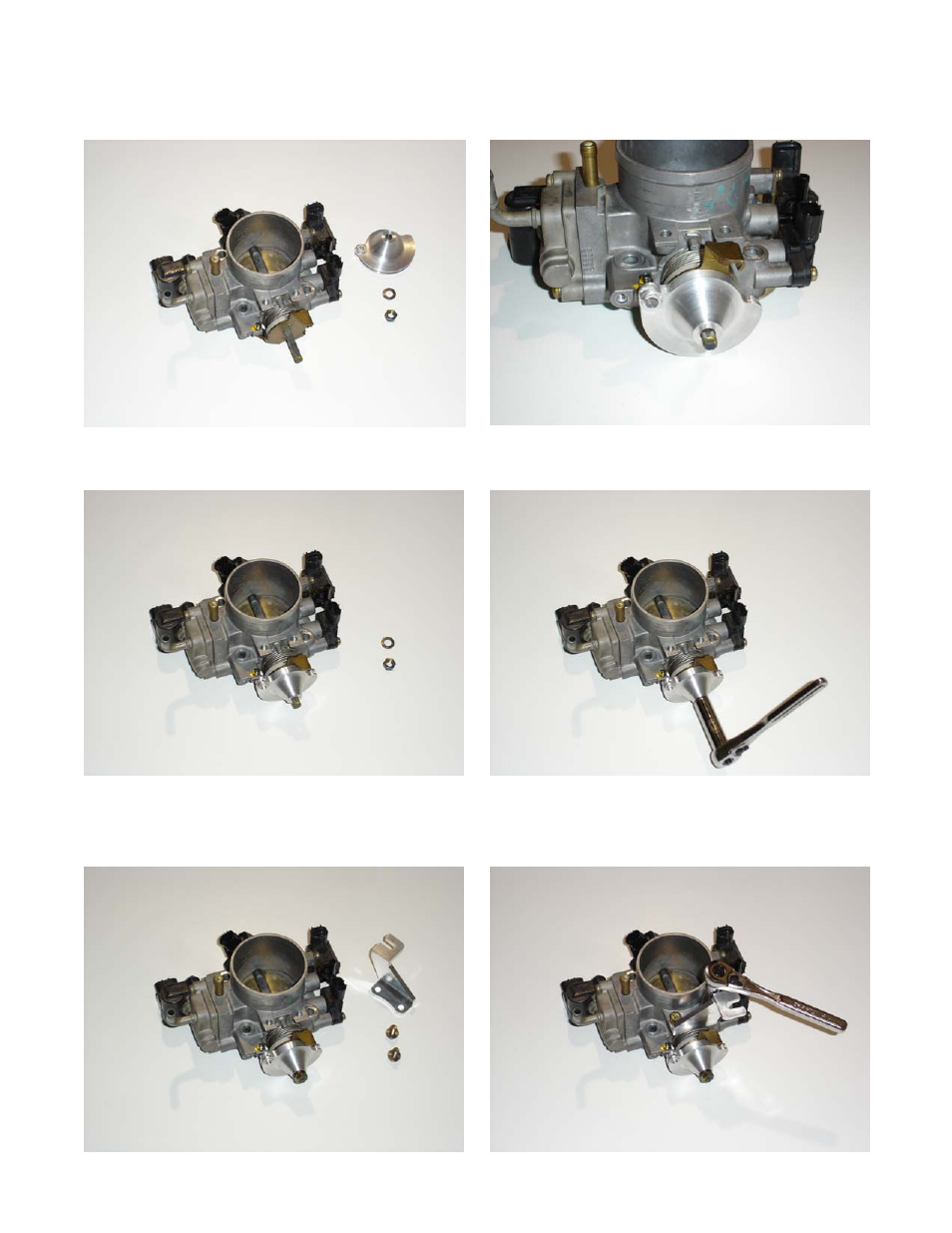

3. ROTOR/BRACKET INSTALLATION
1. Install the included throttle body rotor in the orientation shown:
2. Re-install the factory M7 lock washer and nut with an 11mm socket to secure
the rotor to the throttle body.
3. Attach the included throttle cable bracket (46mm tall bracket for EG, DC2, & EF;
53mm tall bracket for EK) by re-using the factory M6 hex head flange bolts.
Use a 10mm socket to tighten.
