39

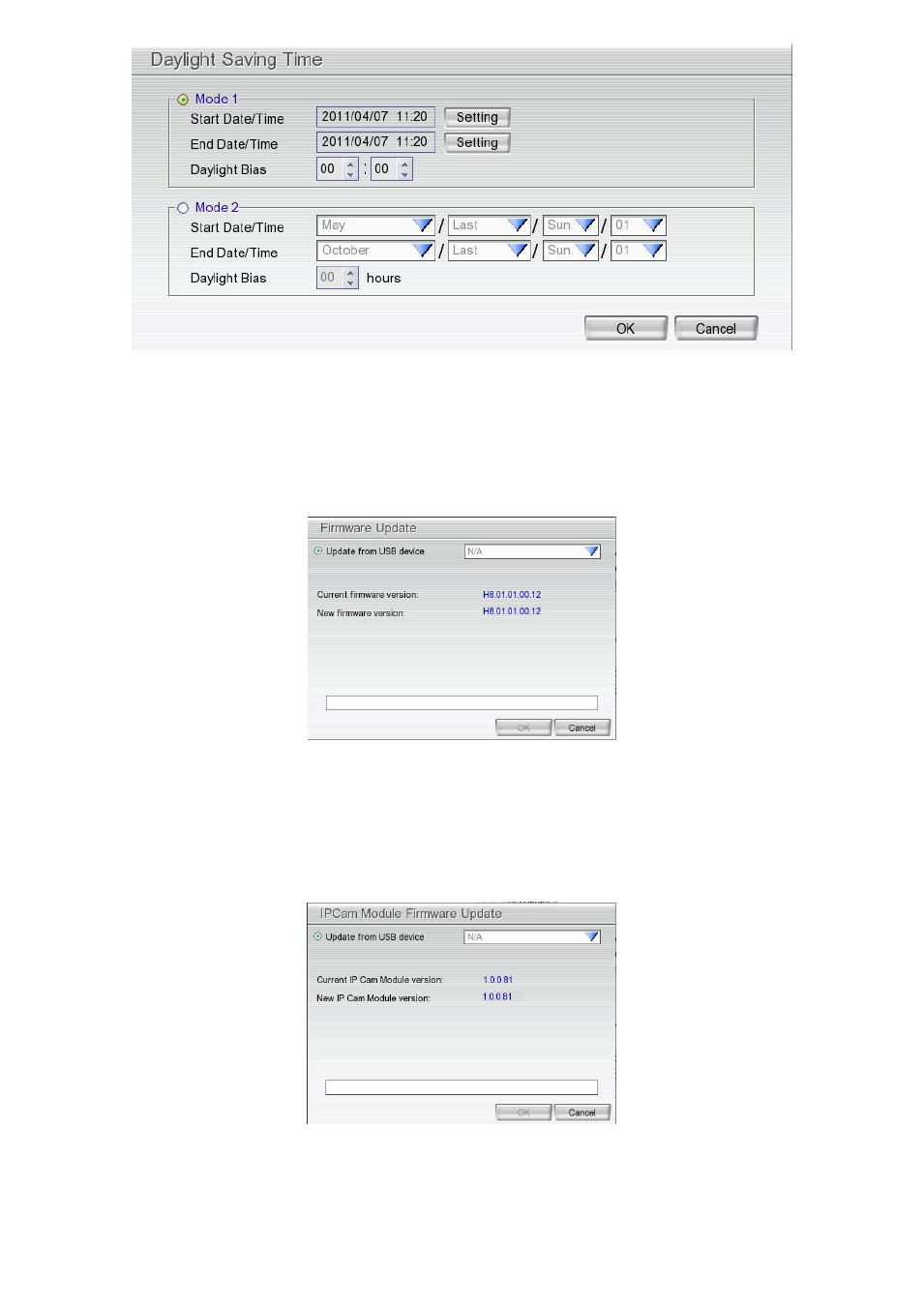

- Daylight Bias: Assign a time that it is for daylight saving time offset in your time zone. For example: if the
time zone is in U.S. Eastern, the time offset is 1 hour.
(14) Firmware
 Product Version: Upgrading the firmware of DVR system.
1. Save the firmware on root directory of USB pen drive. And then, plug USB pen drive to DVR server.
2. Click Update button, a Firmware Upgrade windows will show up.
3. Select the USB pen drive if there is more than one USB storage device from drop down list. The
DVR unit will auto detects the firmware.
4. Click OK to start upgrading.
 IPCam Module: Update firmware of IP camera.
1. Save the firmware on root directory of USB pen drive. And then, plug USB pen drive to DVR server.
2. Click Update button, a Firmware Upgrade windows will show up.
3. Select the USB pen drive if there is more than one USB storage device from drop down list. The
DVR unit will auto detects the firmware.
4. Click OK to start upgrading.
