2. In the POS Mapping dialog box, click OK to accept the settings and Cancel to exit without saving the new
setting.
(1)
(2)
(3)
(4)
(5)
(6)
(7)

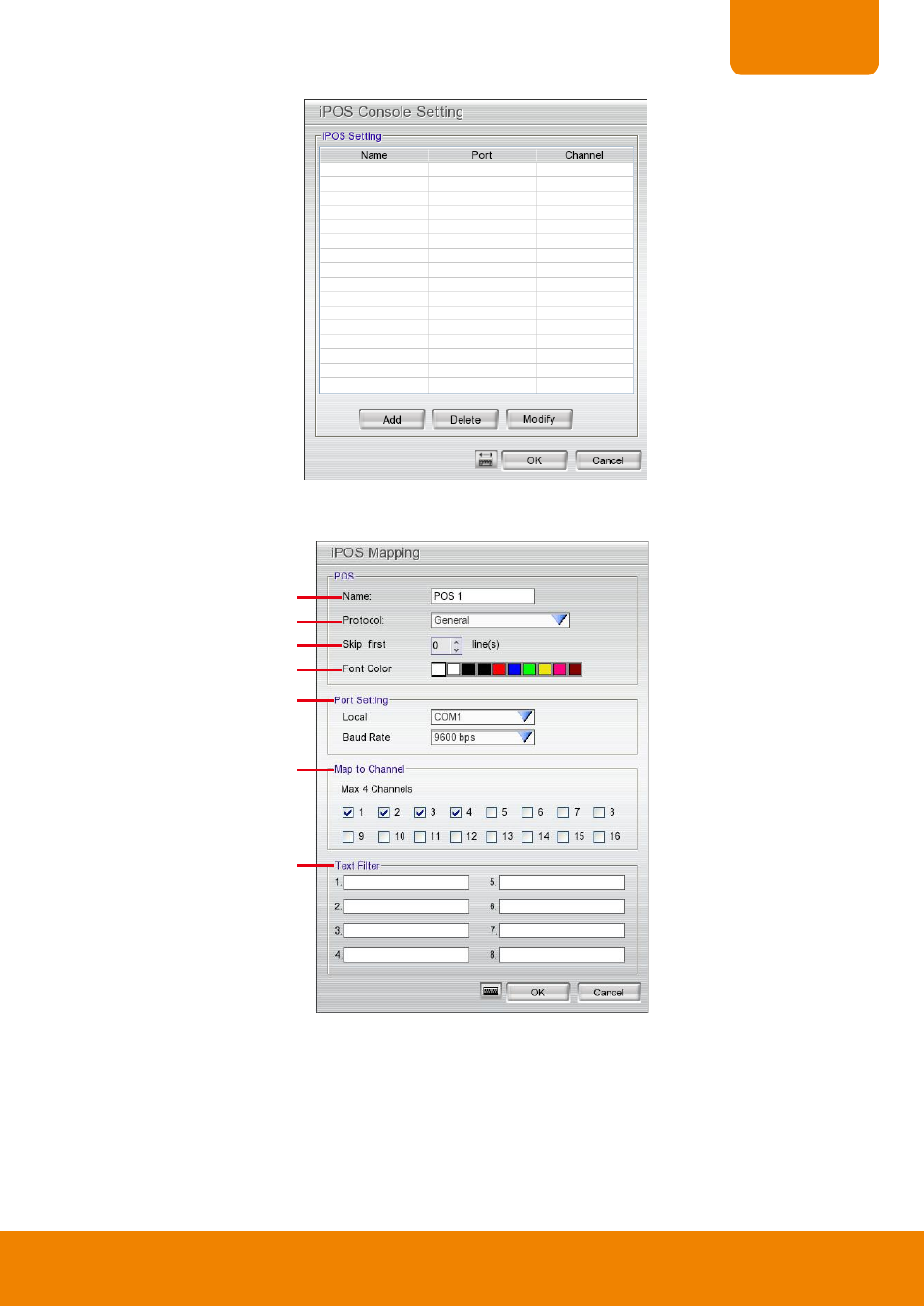

(1) Name: Enter a name to identify the POS.
(2) Protocol: Select the protocol.
(3) Skip first: Set the number of lines you want to be removed.
(4) Font Color: Select the text color of the POS data.
(5) Port Setting : Select the Local(Com port) where it is connected and Baud Rate. If users just need to
connect to one POS device, they can connect AVer TM USB2RS232 Box to the com port
of DVR unit, and select COM 1. If users need to connect to 2
nd
POS device or more,
please connect AVer TM USB2RS232 Box to the front USB port, then connect AVer TM
Data Box to the port 1 of AVer
TM
USB2RS232 Box.
